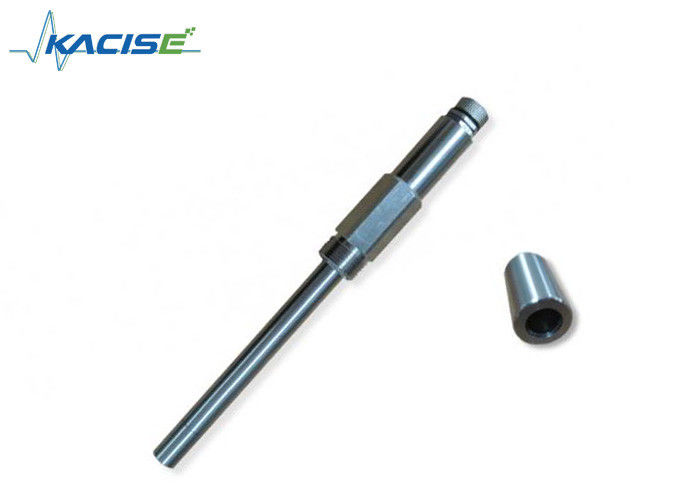

S S 12mm Dissolved Oxygen Probe 4-20mA Output Fermentation Fluorescence Method

S S 12mm Dissolved Oxygen Probe 4-20mA Output Fermentation Fluorescence Method

  • S S 12mm Dissolved Oxygen Probe 4-20mA Output Fermentation Fluorescence Method
  • S S 12mm Dissolved Oxygen Probe 4-20mA Output Fermentation Fluorescence Method
S S 12mm Dissolved Oxygen Probe 4-20mA Output Fermentation Fluorescence Method
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Certification: CE,ISO
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100
Contact Now
Detailed Product Description
Output: Support RS-485, MODBUS Protocol Measuring Range: 0~20mg/L
Response Time: 10 Sec Protection Level: IP68
Accurate: 1% Temperature Range: 0 ~ 50℃
Power: DC6-12V,Current<50mA Size: Φ26*177.5 Mm
High Light:

water turbidity sensor

,

oil in water sensor

12mm Fermentation Special Fluorescence Method Dissolved Oxygen Sensor



Description



12mm fermentation fluorescence method dissolves oxygen sensor, adopts international leading fluorescence life technology, RS-485 output, supports MODBUS protocol. Compared with the traditional polarographic oxygen sensor, it has many technical advantages such as no preheating, no electrolyte, no oxygen consumption, no generation, high precision, anti-interference, maintenance-free, quick response, and more environmental protection. It is resistant to acid and alkali and can be sterilized at high temperature. It meets CIP disinfection standards and steam sterilization standards.

S S 12mm Dissolved Oxygen Probe 4-20mA Output Fermentation Fluorescence Method 0



Measuring principle



The Fluorescence Dissolved Oxygen Analyzer is based on the quenching principle of the specific fluorescence of the specific substance in physics. The blue light from a light-emitting diode (LED) is irradiated onto the fluorescent material on the inner surface of the fluorescent cap, and the fluorescent material on the inner surface is excited to emit red light, and the phase difference between the red light and the blue light is detected, and the internal calibration is performed. The values are compared to calculate the concentration of oxygen molecules, and the final values are automatically compensated by temperature and pressure.



Feature



● Suitable for steam sterilization, high temperature sterilization and CIP cleaning
● No film, no electrolyte, no polarization
● Does not consume oxygen, is not affected by flow rate
● Built-in temperature sensor, automatic temperature compensation
● Small drift, fast response and more accurate measurement
● Free of maintenance, long application period



Technical Specifications



product

Online fluorescence dissolved oxygen sensor



principle Ultraviolet fluorescence method
Measuring range 0~20mg/L
Response time 10 sec
accurate 1%
Protection level IP68
Deepest depth Underwater 60 meters underwater 10 meters
temperature range 0 ~ 50℃
Output Support RS-485, MODBUS protocol
Power supply DC 5~12V, current <50mA
size Φ26*177.5 mm
Probe cable length 10 m, customizable 5 m, 15 m and 30 m cable
Fluorescent cap life 1 year
Maximum working pressure 6bar
product material 304 food grade stainless steel
