| Place of Origin: | China |
| Brand Name: | Kacise |
| Certification: | CE，ISO9001 |
| Model Number: | KBU601 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton / Wooden Box |
| Delivery Time: | 5~8 working days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Principle: | Ultraviolet Fluorescence Method | Measuring Range: | 0~20mg/L |
|---|---|---|---|
| Response Time: | 10 Sec | Accurate: | 1% |
| Protection Level: | IP68 | Power Supply: | DC 5~12V, Current <50mA |
| Output: | RS-485/MODBUS | Maximum Working Pressure: | 6bar |
| Product Material: | POM Or SS316 | Deepest Depth: | Underwater 60 Meters |
| Application: | Dissolved Oxygen Sensor | ||
| High Light: | water turbidity sensor,oil in water sensor |
||

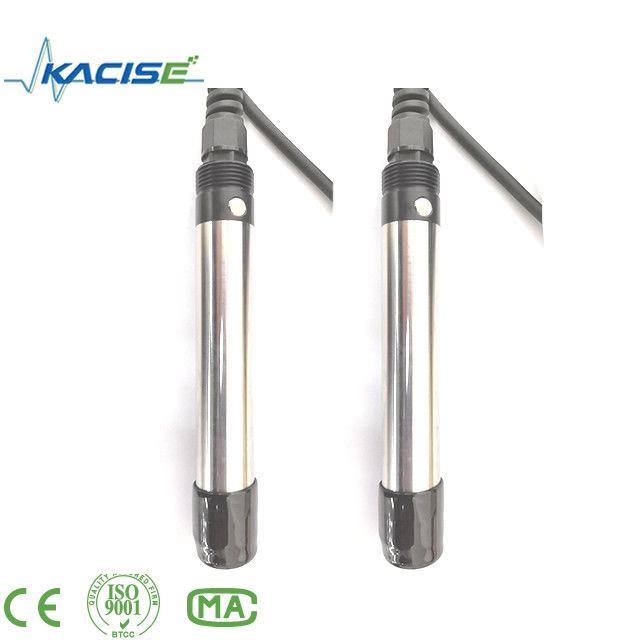

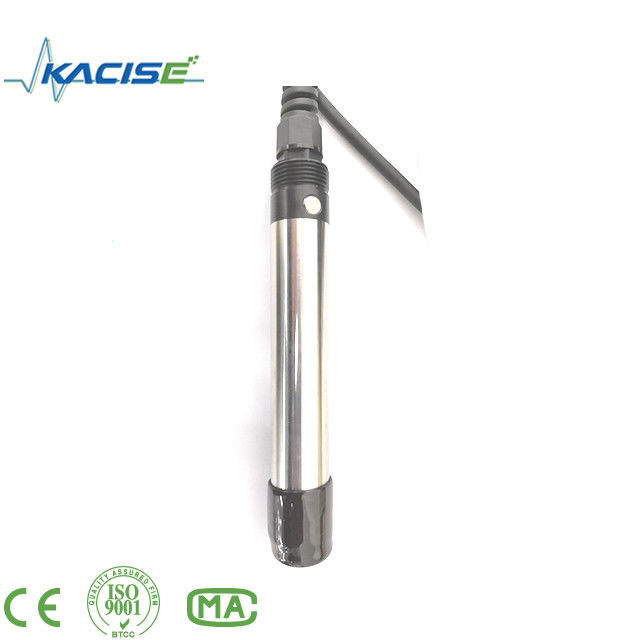

Hot Sell Good Quality Water Treatment Online Dissolved Oxygen Electrode Sensor DO Meter Probe
Description
The fluorescence dissolved oxygen sensor uses a new generation of fluorescence lifetime technology. Kacise independently develops high performance fluorescent materials. No anaerobic consumption, no flow restrictions, no electricity required. The solution requires no maintenance and calibration, no hydrogen sulphide, and excellent stability. Built-in temperature sensor and automatic temperature compensation. The RS485 output is suitable for networks without a controller.
Features
Kacise dissolved oxygen sensor support RS485/Modbus communication. Optional automatic cleaning brush to eliminate the impact of oil on the measurement, this product uses a unique optical and electronic filtering technology to eliminate the impact of ambient light on the measurement, not affected by suspended solids.
Specifications
| product |
Online fluorescence dissolved oxygen sensor
|
|
| principle | Ultraviolet fluorescence method | |
| Measuring range | 0~20mg/L | |
| Response time | 10 sec | |
| accurate | 1% | |
| Protection level | IP68 | |
| Deepest depth | Underwater 60 meters | underwater 10 meters |
| temperature range | 0 ~ 50℃ | |
| Output | Support RS-485, MODBUS protocol | |
| Power supply | DC 5~12V, current <50mA | |
| size | Φ26*177.5 mm | |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | |
| Fluorescent cap life | 1 year | |
| Maximum working pressure | 6bar | |
| product material | POM or ss316 | |
