    Product Details:

    Place of Origin: CHINA
    Brand Name: KACISE
    Certification: CE,ISO
    Model Number: GXPS609

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 220usd/piece
    Packaging Details: carton with form protect
    Delivery Time: 7 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1000 Piece/Pieces per Week
    Contact Now
    Detailed Product Description
    Measure Range: 0~5m Power Supply:: 3.6VDC Battery Or 10VDC~35VDC External Power Supply
    Working Temperature:: 25℃~85℃. Measure Precision:: 0.5%F.S
    Timing Work Time:: 5 Minute ~ 1000 Minute(can Set) Defend Grade:: IP68
    High Light:

    wireless pressure transducer

    ,

    wireless pressure sensor

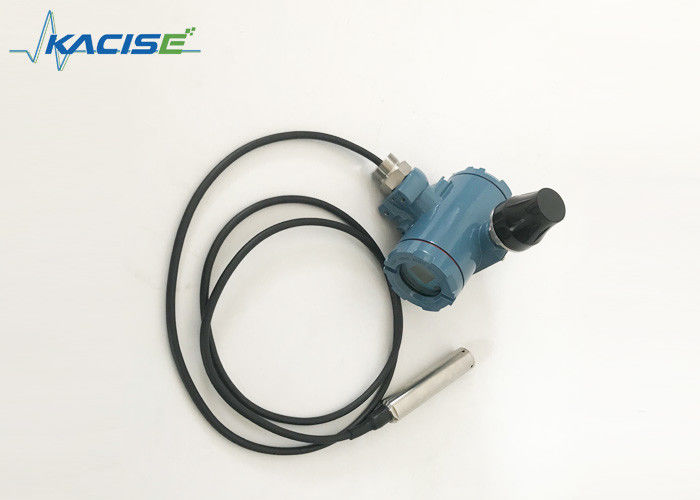

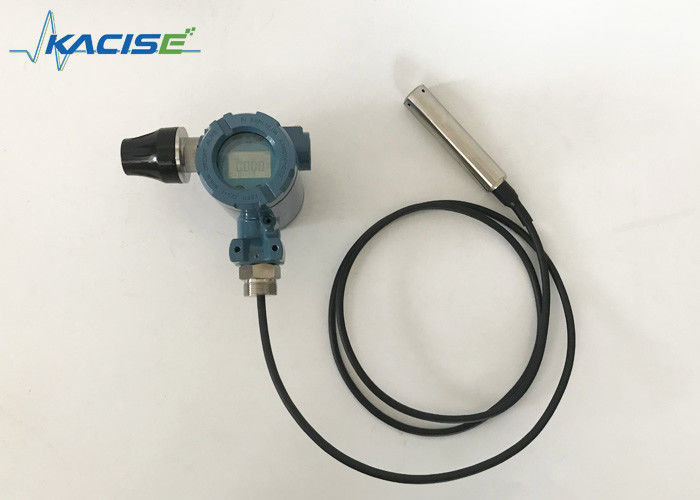

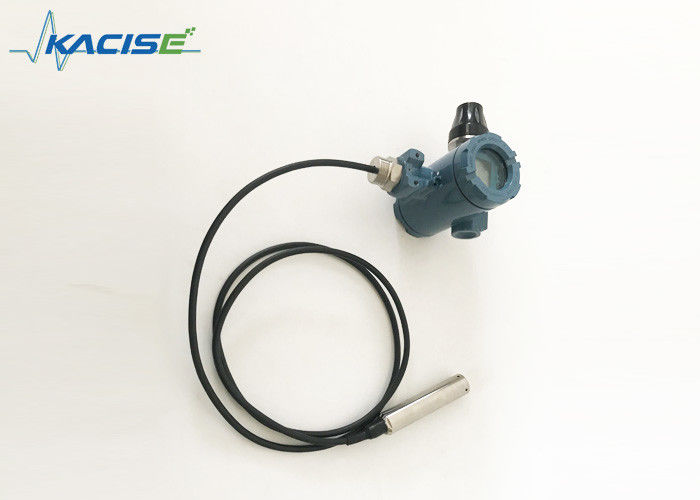

    GXPS609 oil Level Sensor Built In Battery Powered GPRS transmitter For Remote Monitor


    Product Description


    Introduction
    1. System Summarize of High quality Can bus Wireless Water or oil Transmitter for Tracking and monitor remote
    The “Liquid height measuring system in GPRS communicate mode” include “Liquid height measuring terminal equipment in GPRS communicate mode”, “Server Management Software” and “Configuration Line”. It is used for timing measure liquid height value, temperature value, longitude and latitude data, date and time information and show these value in the “Server Management Software”.
    Built In Battery Powered Oil Level Sensor / GPRS Transmitter For Remote Monitor 0

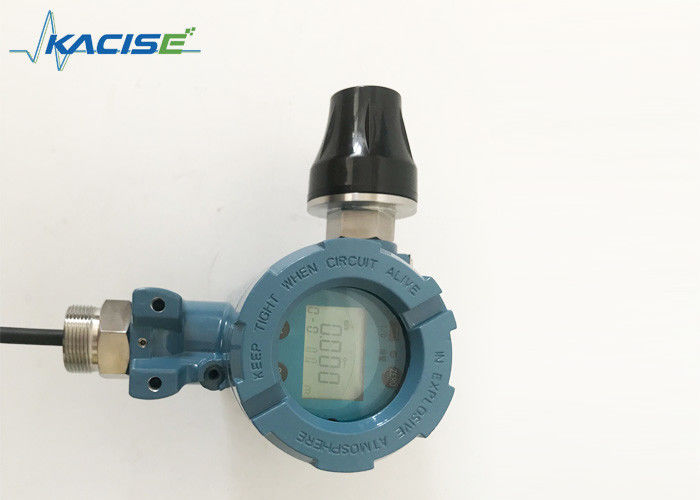

    The back of GXPS609(GPRS) terminal: as picture two



    parameter

    Measure Range0~3m diesel
    Measure Precision0.5%F.S
    Power Supply Way3.6VDC battery or 10VDC~35VDC external power supply.
    Defend GradeIP65
    Work Temperature-25°C~85°C
    Storage Temperature-25°C~85°C
    Communication FrequencyGSM/GPRS 850/900/1800/1900MHz
    Interface TypeNPT1
    Timing Work Time5 minute ~ 1000 minute(can set)
    Append FunctionAppend Function
