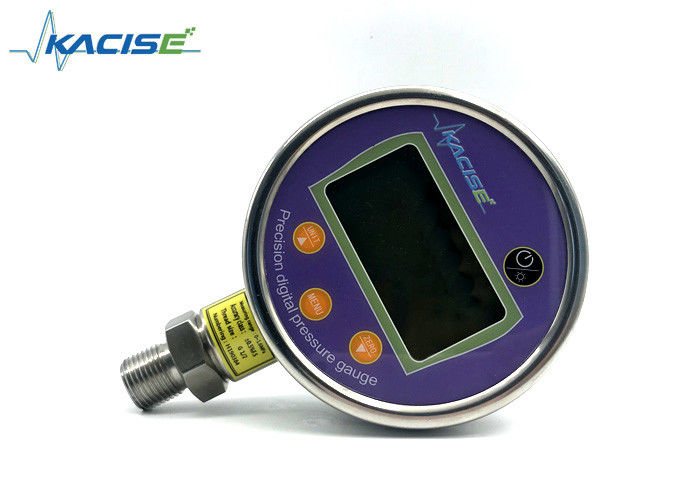

Digital High Accuracy Pressure Gauge USB Connected Battery Operated With Data Logger

Digital High Accuracy Pressure Gauge USB Connected Battery Operated With Data Logger

    • Digital High Accuracy Pressure Gauge USB Connected Battery Operated With Data Logger
    • Digital High Accuracy Pressure Gauge USB Connected Battery Operated With Data Logger
  • Digital High Accuracy Pressure Gauge USB Connected Battery Operated With Data Logger

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Certification: certificate of explosion-proof, CE
    Model Number: KPG201

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 1000 Pieces per Week
    Contact Now
    Detailed Product Description
    Precision Grade: 0.5%FS,0.4%FS ,0.2%FS,0.1%FS,0.05%FS Pressure Range: -100kPa~0~600kPa~250MPa
    Ambient Temperature: (-20~50)℃ Atmospheric Pressure: (86~106)kPa
    Storage Temperature: (-30~80)℃ Power Supply Mode: 4.2V Rechargeable Lithium Battery
    High Light:

    stainless steel pressure gauge

    ,

    submersible pressure sensor

    USB connected Battery Operated Digital Pressure Gauge with Data Logger





    Features



    *Touch button, no mechanical contact, a good solution to the problem of life and sealing.

    *Wide temperature compensation, ultra-low power consumption.

    * Unit changing, peak valley and other functions fully preserved.

    * Multi additional setting and functions available, user can set by environment and habits.

    * IP grade ≧ IP66, higher than the industry level.



    Description



    KPG201 precision digital pressure gauge is in accordance with the latest national standards developed and produced high-precision smart pressure measuring instruments. Pressure gauge mainly by the pressure sensor and signal processing circuit. Imported pressure sensor, superior performance, with high precision, corrosion resistance, shock resistance, vibration resistance, low temperature drift, high stability and other advantages; signal processing circuit using the latest ultra-low power processors, signal processing chips and power supply Management chip composition. High-capacity high-performance lithium battery-powered, no external power supply. The appearance of the instrument delicate, compact, beautiful, easy to use.





    Specification



    Item Spec.
    Pressure range -100kpa~250pa~5kpa~250Mpa
    Accuracy 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02%
    Display 5-digit dynamic display + percentage indicator
    Pressure unit Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2
    Overload pressure 150% FS
    Destruction pressure 200% FS
    Power supply 4.2V rechargeable lithium battery
    Temperature -20 ℃ ~ 60 ℃
    Humidity ≤ 85% RH
    Calibration environment 20 ℃ ± 2 ℃
    Explosion-proof level ExiaIICT4 optional
    IP Grade IP66
    Data record limit 50000
    Process connection M20 × 1.5 (male), special thread customizable
    Dimensions height 170mm, width 110mm, thickness 50mm





    Digital High Accuracy Pressure Gauge USB Connected Battery Operated With Data Logger 0
