Low Power Consumption Digital Pressure Controller / Digital Water Pressure Gauge

Low Power Consumption Digital Pressure Controller / Digital Water Pressure Gauge

stainless steel pressure gauge

submersible pressure sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KPG201

Contact Us
Request A Quote
Product Details
Precision Grade:
0.5%FS,0.4%FS ,0.2%FS,0.1%FS,0.05%FS
Pressure Range:
-100kPa~0~600kPa~250MPa
Ambient Temperature:
(-20~50)℃
Relative Humidity:
<95%
Atmospheric Pressure:
(86~106)kPa
Storage Temperature:
(-30~80)℃
Display:
SFTN Liquid Crystal Display,White Backlight,5 Digit Display.
Power Supply Mode:
4.2V Rechargeable Lithium Battery
Installation Method:
Radial Installation、axial Belt Mounting Plate、Split Type Installation
Highlight:

stainless steel pressure gauge

,

submersible pressure sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability
1000 Pieces per Week
Product Description

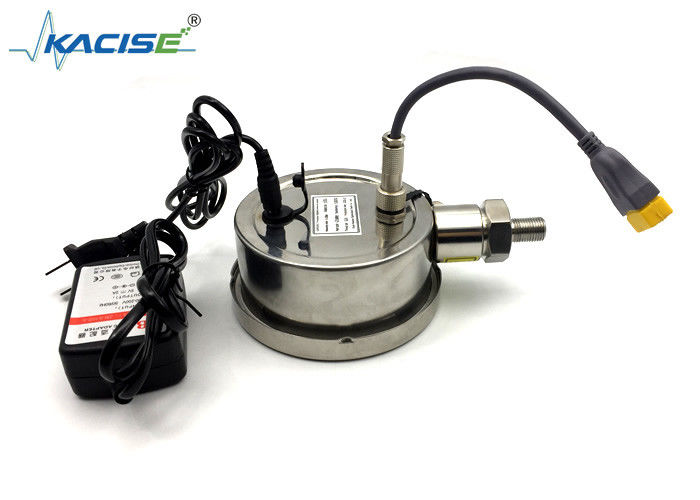

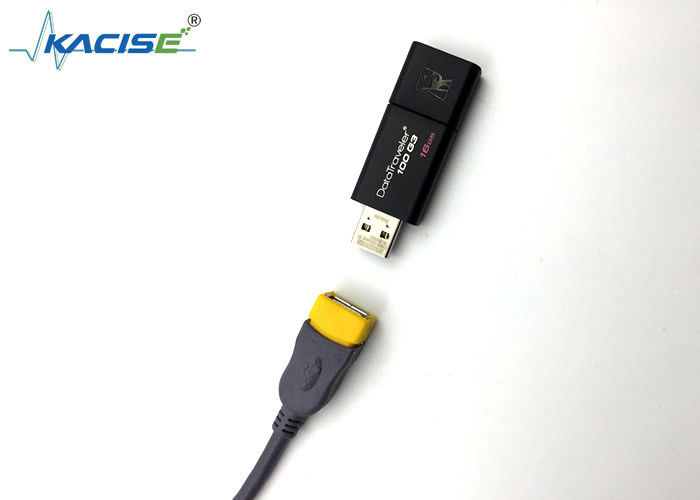

Low Power Consumption Long Life Time Battery Powered USB Data Transfer Digital Manometer With Data Logger



  Description



KPG201 precision digital pressure gauge is in accordance with the latest national standards developed and produced high-precision smart pressure measuring instruments. Pressure gauge mainly by the pressure sensor and signal processing circuit. Imported pressure sensor, superior performance, with high precision, corrosion resistance, shock resistance, vibration resistance, low temperature drift, high stability and other advantages; signal processing circuit using the latest ultra-low power processors, signal processing chips and power supply Management chip composition. High-capacity high-performance lithium battery-powered, no external power supply. The appearance of the instrument delicate, compact, beautiful, easy to use.



  Features



• Wide temperature compensation, ultra-low power consumption.

• Unit changing, peak valley and other functions fully preserved.

• Multi additional setting and functions available, user can set by environment and habits.

• IP grade ≧ IP66, higher than the industry level.



Specification



Item Spec.
Pressure range -100kpa~250pa~5kpa~250Mpa
Accuracy 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02%
Display 5-digit dynamic display + percentage indicator
Pressure unit Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2
Overload pressure 150% FS
Destruction pressure 200% FS
Power supply 4.2V rechargeable lithium battery
Temperature -20 ℃ ~ 60 ℃
Humidity ≤ 85% RH
Calibration environment 20 ℃ ± 2 ℃
Explosion-proof level ExiaIICT4 optional
IP Grade IP66
Data record limit 11000 (50000 Selective)
Process connection M20 × 1.5 (male), special thread customizable
Dimensions height 170mm, width 110mm, thickness 50mm
