Place of Origin: | China |
Brand Name: | Kacise |
Certification: | CE |
Model Number: | GXPS606 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotiable |
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pieces per week |
Pressure Range: | 0~200m | Accuracy: | ±0.5% Of F.S |
---|---|---|---|
Operate Temperature: | -10°C~70°C | Medium: | Compatible With Stainless Steel 1Cr18Ni9Ti |
Data Transmission Channel: | Wireless Lora | Power Supply: | 1.5-5.5V@150mA Battery / 7-24VDC |
High Light: | wireless pressure transducer,wireless pressure sensor |
Application
Feature
Introduction

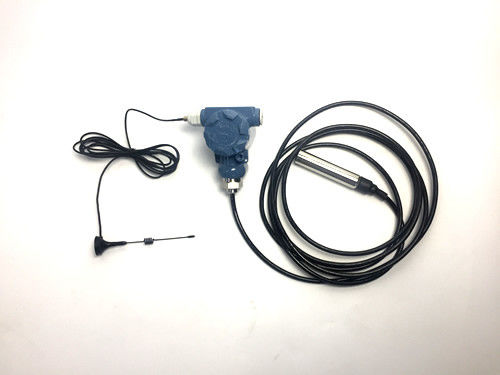

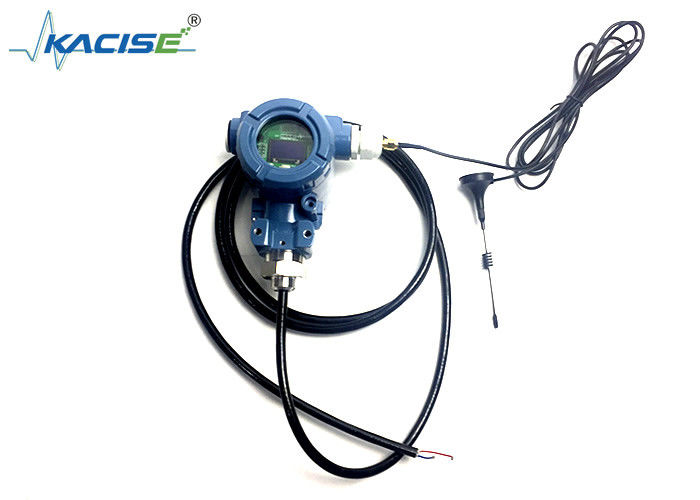

GXPS606 LoRa Wireless Transmission Liquid Volume Meter,Based on the principle that the measured hydrostatic pressure is proportional to the height of the liquid, the level sensor can be accurately placed in the container to measure the height from the end of the level gauge to the water surface, depending on the external structure, size and liquid of the container being tested. Density, calculate and display the volume or weight of the liquid in the container and display it on the display by wireless transmission.
Parameter
Level measurement range | 0~200 m |
Volume measurement range | 0~10^5 m³ |
Level measurement accuracy |
0.5% |
Volume measurement accuracy |
1% |
Operating temperature |
-40°C~85°C |
Compensation temperature |
-10°C~70°C |
Power supply | 1.5-5.5V@150mA battery / 7-24VDC |
Communication |
Wireless transmission |
Protection level |
IP65 |
Applicable medium | All corrosive media compatible with 1Cr18Ni9Ti and 316L |
Applicable tank | cuboids, cylinders, ellipsoidal columns |
Lora module parameters
MCU Side
MCU: STM32L072CZT6
Flash:192KB
RAM:20KB
EEPROM:6KB
Clock Speed: 32Mhz
LoRa Side
LoRa Chip: sx1276/sx1278
68 dB maximum link budget.
+20 dBm - 100 mW constant RF output vs.
+14 dBm high efficiency PA.
Programmable bit rate up to 300 kbps.
High sensitivity: down to -148 dBm.
Bullet-proof front end: IIP3 = -12.5 dBm.
127 dB Dynamic Range RSSI.
LoRaWAN 1.0.2 Specification
Installation
