Durable Wire Rope Vibration Isolator 20g/11ms Shock Resistance Return Air Function

Durable Wire Rope Vibration Isolator 20g/11ms Shock Resistance Return Air Function

    • Durable Wire Rope Vibration Isolator 20g/11ms Shock Resistance Return Air Function
    • Durable Wire Rope Vibration Isolator 20g/11ms Shock Resistance Return Air Function
  • Durable Wire Rope Vibration Isolator 20g/11ms Shock Resistance Return Air Function

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Certification: ISO9001:2008
    Model Number: GR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1ps
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work day
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 10000 Pieces per Week
    Contact Now
    Detailed Product Description
    Material: Aluminum And Stainless Steela, Stainless Steel Applications: Marine And Industrial Engine Mounts
    Shock Resistance: 20g/11ms Relative Product: Backdraft Damper
    Type: Shock Absorber Feature: Durable
    Function: Return Air
    High Light:

    wire rope shock absorber

    ,

    vibration isolation dampers

    Factory price wire rope isolator for photographic equipment

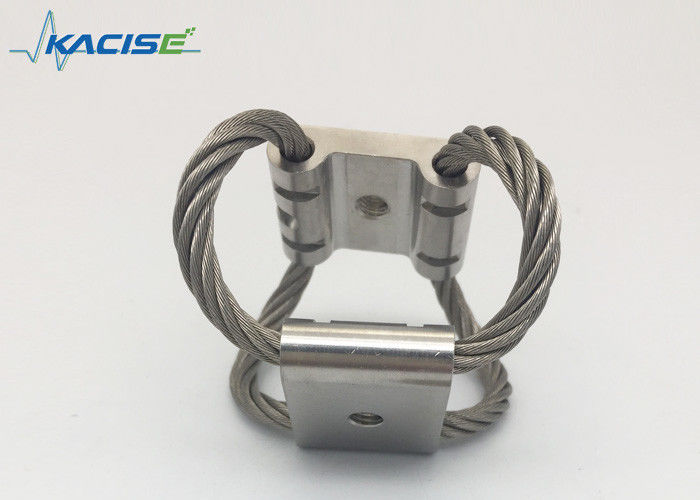

    Wire rope isolators are stable mounting assemblies of high quality stranded wire rope held with rugged metal retainers. Each isolating element has specific response characteristic determined by the diameter of the wire rope, the number of strands, the cable length, the cable twist or lay, and the number of cables per section.

    Inherent damping is provided by flexure hysteresis, i.e., the rubbing and sliding friction between the strands of the wire rope.

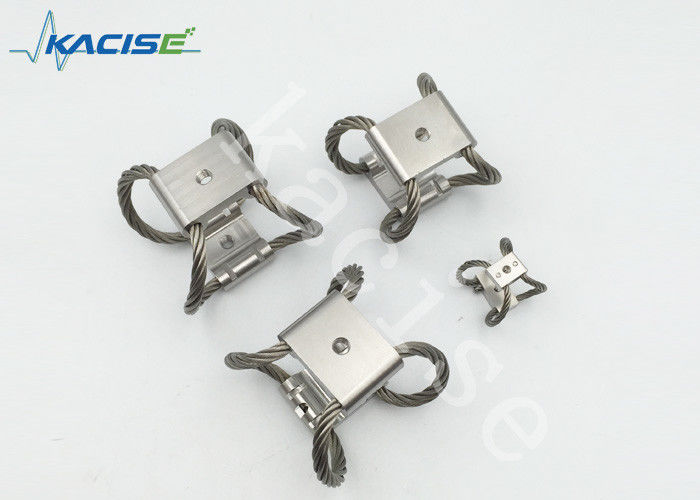

    GR Series Vibration Isolator

    Be designed as the same production of France

    Feature with less volume and weight

    With the characters of three dimensional variable stiffness and friction

    Widely be used on the small devices



    Options

    Factory price wire rope isolator for photographic equipment







    Dimension Parameter Table



    Model W
    (mm)
    H
    (mm)
    M
    (mm)
    Vertical loading
    (KG)
    45°loading
    (KG)

    Side hanging loading

    (KG)

    GR1-100 19 17 M3 0.33 0.16 0.11
    GR1-200 20 19 0.24 0.11 0.09
    GR1-300 23 23 0.18 0.076 0.07
    GR1-400 26 26 0.13 0.05 0.05
    GR2-100 20 16 M3 1.2 0.58 0.56
    GR2-200 21 19 0.93 0.49 0.4
    GR2-300 24 23 0.67 0.33 0.29
    GR2-400 27 27 0.49 0.22 0.2
    GR3-100 22 19 M3 2.9 1.2 1.2
    GR3-200 24 23 2.2 1.1 0.85
    GR3-300 27 27 1.8 0.67 0.62
    GR3-400 30 33 1.1 0.44 0.44
    GR4-100 47 42 M6 2.4 1.1 0.79
    GR4-200 54 53 1.8 0.67 0.6
    GR4-300 59 60 1.3 0.53 0.5
    GR4-400 68 75 0.67 0.36 0.3
    GR5-100 48 41 M6 8 2.4 1.8
    GR5-200 54 53 3.8 1.3 1.2
    GR5-300 59 60 2.7 1.1 0.9
    GR5-400 67 76 1.6 0.67 0.6
    GR6-100 54 47 M6 14.2 4 3.5
    GR6-200 59 55 9.3 3.3 3
    GR6-300 64 64 6.7 2.2 2.1
    GR6-400 73 79 3.6 1.3 1.2



    Packaging & Shipping



    Shippment

    1: Usually we ship your order by sea or by air...
    2: We do our best to ship your order within 1 week after receiving your payment
    3: We'll tell you the tracking number once your order has been sent.

    Package
    1:Inner packing: opp bag, then carton box for each product.
    2:Outer packing:export standard carton or wooden box,foam outside protecting the goods against damage.
    Payment
    1: We accept T/T Bank transfer, Western Union, Paypal

    Our Services

    1: Customize according to your special demand.

    2: Various style for each products and completely series products.

    3: Large stock for fast shipping.
    4: High quality with competitive price
    5: Sample order & small quantity order is ok

    6: Provide free products information.
    7: Reliable quality assured and active after-sell service

    8: Small quantity sample is available



    Company Information



    Established in 2005, Xi'an GX Electronic-Mechano Co., Ltd., a high-tech enterprise specialized in the design and production of vibration isolators, RF coaxial connectors, arresters, locked terminals, LC filters and copper products, is located in Xinkai Industrial Park, Xi'an Hi- tech Industrial Development Zone.
    We have many years of experience in supplying many kinds of vibration isolators, RF coaxial connectors, arresters, locked terminals, LC filters and copper products (with perfect cost performance by hot extrusion).
    The company's products are widely used in the fields of electrical and electronics, such as electronic equipments, aviation communication, oil devices and instruments, seismic instruments, ships building, and so on.
    Take wire rope isolators for example, we have designed and produced ten categories, the load bearing range is from 1kg to 1t, which meets many kinds of requirements and demands from our clients and gets stable customers’ royalty after their launch into domestic market.
    Our price is very competitive because we are manufactory, we are the source. We are ISO9001:2008 and national military standard certificated factory, so we can ensure the quality.
