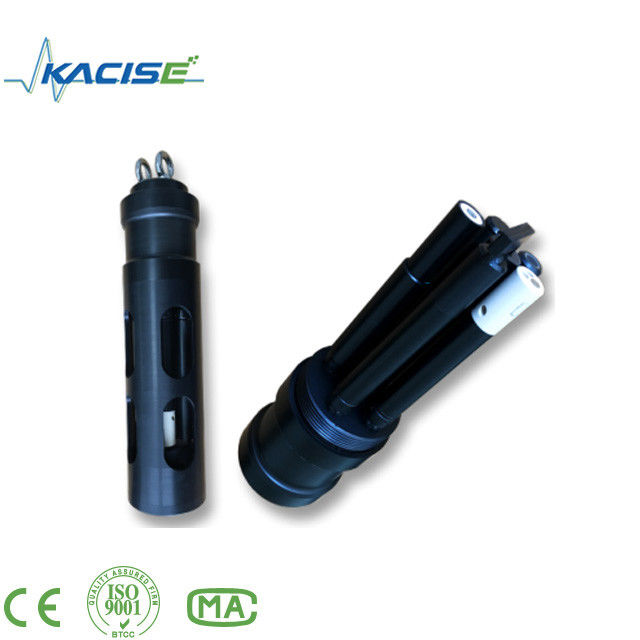

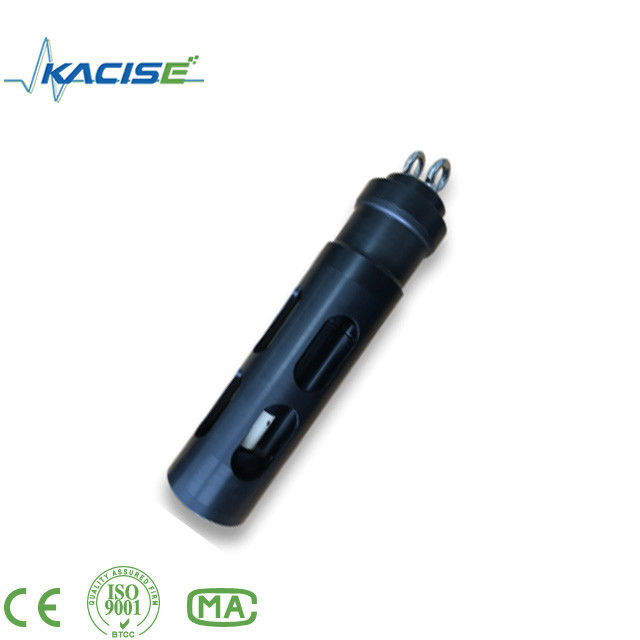

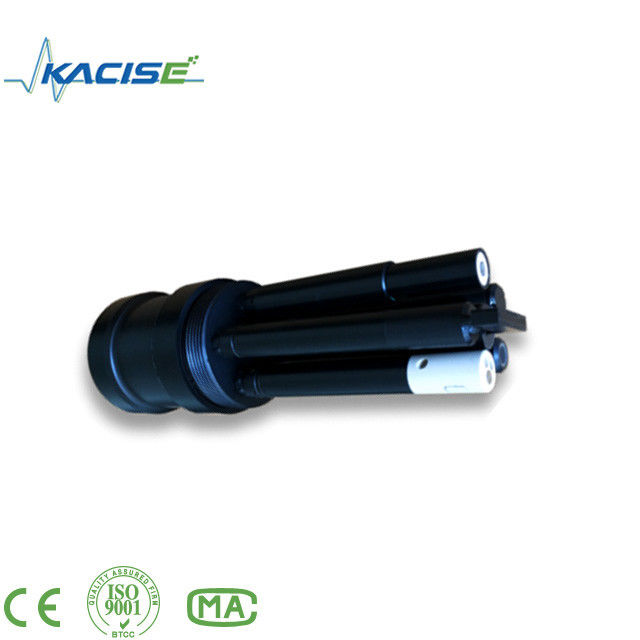

Continuous Water Quality Monitoring Sensors 12V Power Supply For Aquaculture

Continuous Water Quality Monitoring Sensors 12V Power Supply For Aquaculture

  • Continuous Water Quality Monitoring Sensors 12V Power Supply For Aquaculture
  • Continuous Water Quality Monitoring Sensors 12V Power Supply For Aquaculture
  • Continuous Water Quality Monitoring Sensors 12V Power Supply For Aquaculture
Continuous Water Quality Monitoring Sensors 12V Power Supply For Aquaculture
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: USD2000-USD6000
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100
Contact Now
Detailed Product Description
Nameter Water Quality Meters & Probes: Multiparameter Water Quality Meters & Probes Characteristic: Oil-in-water Sensor Probe
Output: RS485 Power Supply: 12V
High Light:

water turbidity sensor

,

oil in water sensor

continuous water quality monitoring sensors sensoring system for aquaculture



1. Feature

Digital sensor, RS485 output, support MODBUS, all calibration parameters are stored in the sensor, each probe has a waterproof connector, which can be easily plugged and replaced. Equipped with automatic cleaning function, it can effectively remove sensor surface contamination, prevent microbial growth, and be more accurate and less maintenance. Optional fluorescence dissolved oxygen, four-electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll, water oil and ammonia nitrogen sensors for long-term online monitoring. The all-in-one design allows for the simultaneous connection of six probes and seven parameters.





2.Technical Specifications

Fluorescent dissolved oxygen probe range 0-20mg/L
accurate ±0.3mg/L
Resolution 0.01mg/L
Fiber turbidity probe range 0-1000 NTU
accurate 0.3NTU
Resolution 0.1NTU
Four-electrode conductivity probe range 1Us/cm-200Ms/cm
accurate 1% FS
Resolution 0.1mS/cm
Chlorophyll sensor range 0~400 ug/L
accurate 0.1 µg/L
Resolution 0.1 µg/L
Digital pH probe range 0-14pH
accurate ±0.1pH
Resolution 0.01
Digital ORP probe range -999~999mV
accurate ±20mV
Resolution 1mV
Oil-in-water sensor probe range 0-5000ppb
accurate 5%
Resolution 0.1ppb
Ammonia nitrogen sensor probe range 0-1000mg/L
accurate ±10%
Resolution 0.1mg/L

Multi-parameter sensor

other information

power supply 12V ±5%
Protection level 0~50℃
Operating temperature IP68
Output RS485
cable length Standard 10m, customizable 5m, 15m and 30m cable





3. Application

Multi-parameter water quality sensor (seven parameters)

Integrated design, each sensor has a waterproof connector, calibration data is stored in the sensor, can be calibrated and replaced in the field. You can connect up to 6 water quality digital sensors at the same time, with optional fluorine dissolved oxygen, four electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll, water oil and ammonia nitrogen sensors. Equipped with a cleaning device to eliminate air bubbles and prevent microbial growth. Various water environment monitoring needs, such as rivers, lakes, oceans and groundwater. Excellent reliability, no maintenance, and can run for months in an unattended environment.
