Place of Origin:
China (Mainland)
Brand Name:
Kacise
Certification:
certificate of explosion-proof, CE
Model Number:
KBU601
1. Applications

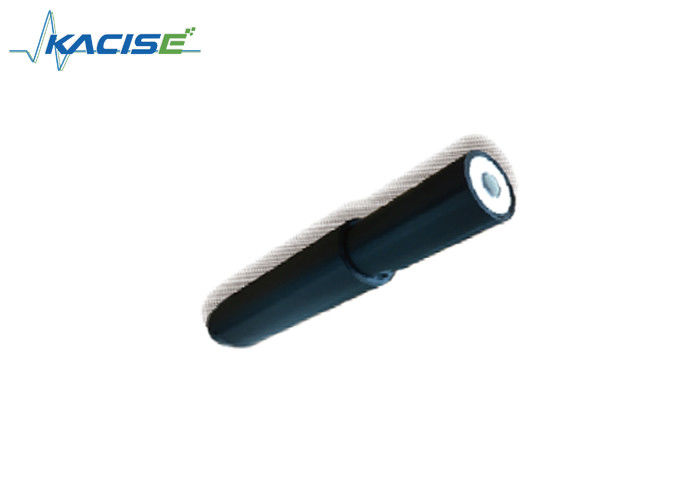

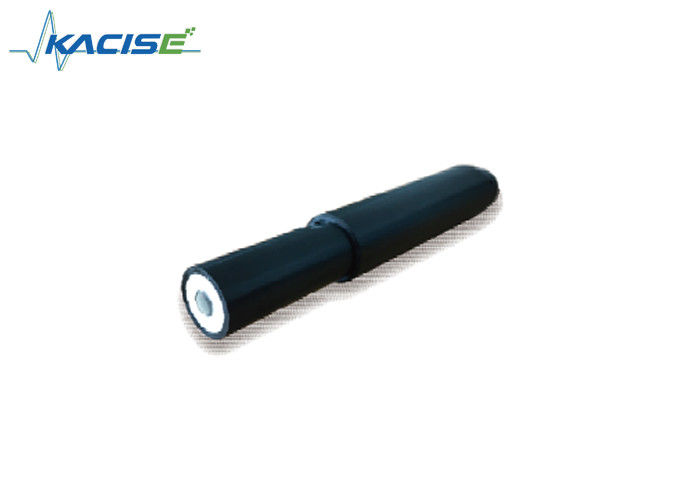

Kacise ORP digital sensor uses industrial on-line electrode. The front side of electrode is flat to clean easily. With built-in temperature sensor, Kacise ORP sensor is suitable for online long-term monitoring. The sensor can realize networking and system integration without controller by RS485 output, Modbus supported.
2. Feature
3.Technical Specifications
| Range | -999~999mV |
| Accurate | ±20mV |
| Resolution | 1mV |
| Protection level | IP68 (With electrode assembly completely) |
| Deepest depth | underwater 10 meters |
| temperature range | 0 ~ 50℃ |
| Output | Support RS-485, MODBUS protocol |
| Power supply | DC 5~12V, current <50mA |
| Installation | Input type |
| size | Φ26mm*167.5mm |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable |
| Sheating material | POM |
