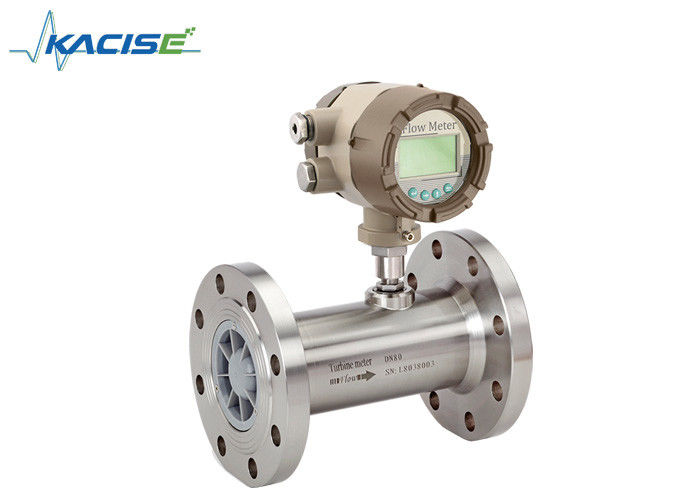

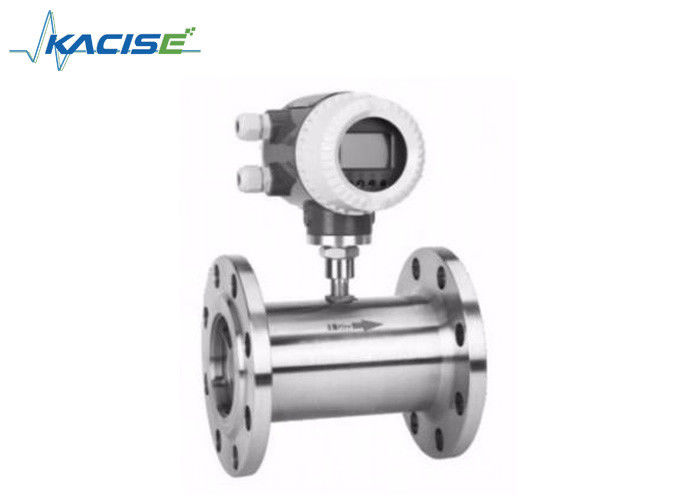

KXTUF Series Turbine Flow Meter

Description
KXTUF turbine flow meter is the use of advanced low-power single-chip microprocessor technology developed turbine flow sensor and display totalizer integration of new smart meter, with a compact structure, intuitive readings clear, high reliability, without outside power interference, anti-lightning, obvious low cost advantage, it is widely used to measure the closed pipe and stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3, carbide not corrode, and no fibers, particles and other impurities, kinematic viscosity at operating temperature is less than 5 × 10-6m² / s of liquid, for kinematic viscosity more than 5 × 10-6m² / s of liquid, can be quantitative control, excessive alarm, etc., is an ideal flow metering and energy meter.
Measurement objects: oil, organic liquids, inorganic liquid, liquefied petroleum gas, natural gas, coal gas and cryogenic fluids.

 Features
☆ High accuracy, generally up to ±1%R, ±0.5%R, high accuracy up to 0.2%R
☆Good repeat-ability, short-term repeat-ability up to 0.05% ~ 0.2%, in the trade settlement is the preferred choice of flow meter.
☆ Output of pulse frequency signal, suitable for totalizer and connection with PC; no zero shift and strong interference resist
☆ High frequency signal(3~4KHz) can be obtained, the signal resolution is strong.
☆ Wide range, medium and large diameter up to 1:20, small caliber 1:10.
☆ Compact structure & convenient maintenance

Applications
☆ Liquefied petroleum gas, refined oil and light crude oil transport and gathering stations, the first and terminal station of large crude oil pipeline        for trade settlement.
☆ Widely used in petroleum, chemical, metallurgy, paper and other industries to measure the volume of liquid flow and total volume.

Specifications

Measuring Range & Working Pressure

Instrument Classification
1.According to instrument function, KXTUF Turbine Flow meter can be classified to two types, that is:
☆ Turbine flow sensor/transmitter
☆ Smart integral turbine flow meter

2.Function Description
☆ Turbine flow sensor/transmitter
   This product itself has no local indication function, only remote transmission of flow signal. Flow signal can be divided to pulse signal or current     signal (4-20mA); low price, high integration level, small volume, especially suitable for using together with secondary indicator, PLC, DCS, and       other control systems with the computer.

According to output signal, the kind of product can be divided to KXTUF-N type and KXTUF-A type.

☆ Smart integral turbine flow meter
This product itself with local display function, two display units available, according to power supply mode, whether with remote signal transmission, it can be divided to KXTUF-B type and KXTUF-C type.

KXTUF-B:Power supply 3.2V 10AH Lithium cell (4 years service life), without signal output.

KXTUF-C:External 24V DC supply, output 4-20 mA standard two wire current signal, RS485 or HART communication optional.

Dimension

Diagram 1 (DN4~DN10): Threaded connection type turbine flow sensor (including straight pipe section).
Diagram 2 (DN15~DN40): Thread connected flow sensor size drawing.
Diagram 3 (DN4~DN10): Flange connected turbine flow sensor drawing.
Sensor installation method according to different specifications, Adopt thread or flange connection, the installation method is shown in diagram 1, 2, 3.

Installation dimensions

Ordering information
