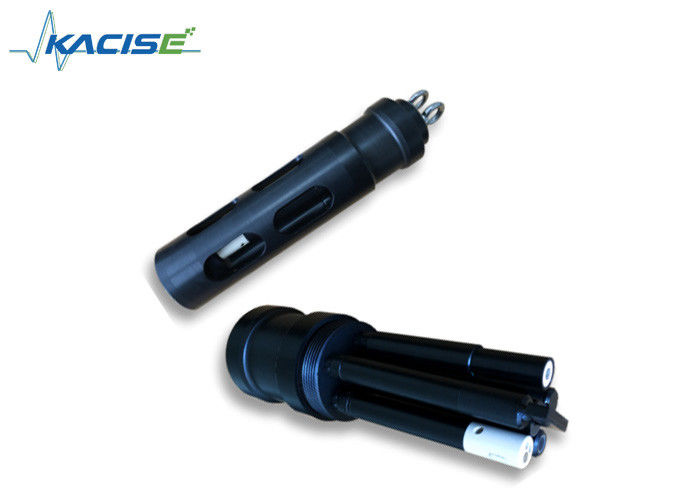

Multi Parameter Water Quality Sensor With Waterproof Connector 100mA Current

Multi Parameter Water Quality Sensor With Waterproof Connector 100mA Current

  • Multi Parameter Water Quality Sensor With Waterproof Connector 100mA Current
  • Multi Parameter Water Quality Sensor With Waterproof Connector 100mA Current
Multi Parameter Water Quality Sensor With Waterproof Connector 100mA Current
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: carton/wooden case, or customers requests
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100
Contact Now
Detailed Product Description
Accuracy: ±0.3mg/L Resolution: 0.01mg/L
Range: 0-20mg/L Operating Temperature: 0~50℃
Output: RS485 IP Grade: IP68
Current: 100mA Self-clean Brush: Optional
High Light:

water turbidity sensor

,

oil in water sensor

KWS-800 Online Multi-Parameter Water Quality Sensor



Introduction
The Kacise KWS-800 series of multi-parameter water quality sensors (seven optional parameters) are designed in an all-in-one configuration. Each sensor has a waterproof connector. Calibration data is stored in the sensor for field calibration and replacement. Up to 6 Kacise digital sensors can be connected at the same time, with optional fluori-dissolved oxygen, four-electrode conductivity, fiber turbidity, digital pH,digital ORP, chlorophyll and oil in water sensors. Equipped with an automatic cleaning device to eliminate air bubbles and prevent microbial growth, it can easily meet the needs of various water environment monitoring such as rivers, lakes, oceans and groundwater. Extremely reliable, it can run for months without maintenance in an unattended environment.

Feature
 Digital sensor, RS485 output, support MODBUS.
All calibration parameters are stored in the sensor, each with a waterproof connector for easy insertion and removal.
 Equipped with automatic cleaning device, it can effectively remove the surface contamination of the sensor, prevent the growth of microorganisms, more accurate and lower maintenance.
 Optional fluorimetry dissolved oxygen, four-electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll, water oil and ammonia nitrogen.
 Sensor for long-term online monitoring.
 All-in-one structure design, can connect six probes at the same time and measure seven parameters.


Technical Specifications



Fluorescent dissolved oxygen probeRange0-20mg/L
Accuracy±0.3mg/L
Resolution0.01mg/L
Fiber turbidity probeRange0-1000 NTU
 Accuracy<5% or 0.3NTU
Resolution0.1NTU
Four-electrode conductivity probeRange1us/cm-200ms/cm1us/cm-100ms/cm
Accuracy1% FS
Resolution0-1000uS/cm; 0.1uS/cm; 1mS/cm-100mS/cm
Chlorophyll sensorRange0~400 ug/L or 0~100RF
Accuracy0.1 µg/L
Resolution0.1 µg/L or 0.1% RFU
Digital pH probeRange0-14pH
Accuracy±0.1pH
Resolution0.01
Digital ORP probeRange-999~999mV
Accuracy±20mV
Resolution1mV
Oil-in-water sensor probeRange0-500ppb or 0-5000ppb
Accuracy5%
Resolution0.1ppb
Multi-parameter sensor otherinformationPower supply12V ±5%

Operating

temperature



0~50℃

Self-clean brushoptional
Current100mA
OutputRS485
Cable lengthStandard 10m, customizable 5m, 15m and 30m
IP GradeIP68


Multi Parameter Water Quality Sensor With Waterproof Connector 100mA Current 0

Application example
Multi Parameter Water Quality Sensor With Waterproof Connector 100mA Current 1

Certificates
Multi Parameter Water Quality Sensor With Waterproof Connector 100mA Current 2

Company information
Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 saleman, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.

When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
