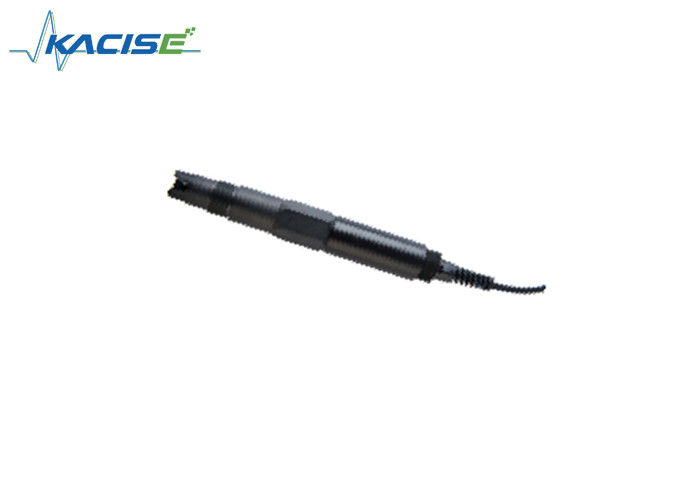

Wide Range Continuous Water Quality Testing Equipment 10m Cable ORP Electrode

Wide Range Continuous Water Quality Testing Equipment 10m Cable ORP Electrode

  • Wide Range Continuous Water Quality Testing Equipment 10m Cable ORP Electrode
Wide Range Continuous Water Quality Testing Equipment 10m Cable ORP Electrode
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiation
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: -1500~1500mV Accurate: ±3mV
Resolution: 0.1NTU Protection Level: IP65
Installation: 3/4” NPT THREAD
High Light:

water turbidity sensor

,

oil in water sensor

Aquaculture Industry Water Quality Sensor ORP Sensor RS485 Output without Display ORP Electrode





1. Application

Kacise ORP digital sensor uses industrial on-line electrode. The front side of electrode is flat to clean easily. With built-in temperature sensor, Kacise ORP sensor is suitable for online long-term monitoring. The sensor can realize networking and system integration without controller by RS485 output, Modbus supported.



2. Feature

  • Digital sensor, RS-485 output, support MODBUS.
  • Not affected by transmission distance, better stability
  • Built-in temperature sensor



3.Technical Specification

Range -1500~1500mV
Accurate ±3mV
Resolution 1mV
Protection level IP65
Display No display
temperature range 0 ~ 60℃
Output Support RS-485, MODBUS protocol
Power supply DC12~24V±10%
Installation 3/4” NPT THREAD
size 50X45X230mm
Probe cable length 10 m, customizable 5 m, 15 m and 30 m cable
Material PPR



Compay Introduction

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.



Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

FAQ

1. Q: What information need to be provided to choose the suitable model?

A: Application field, measuring range, accuracy, and other related parameters.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
