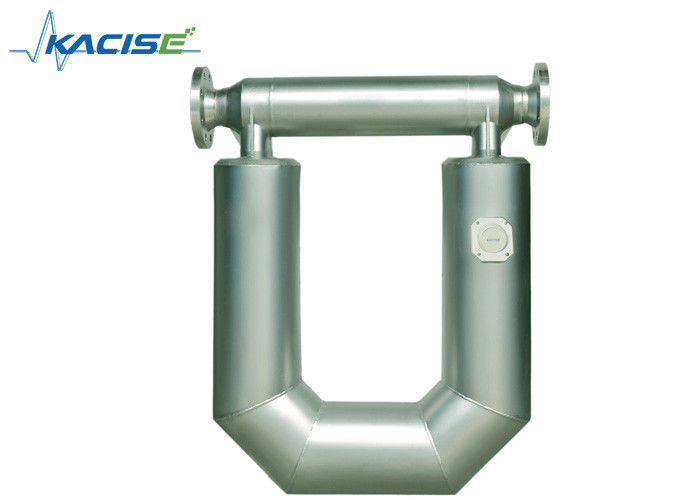

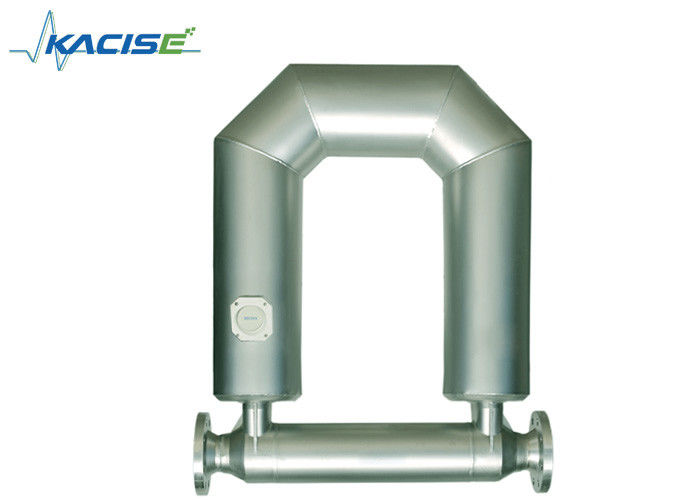

Explosion Proof Compact Coriolis Mass Meter 0 - 4.0MPa Pressure High Flow Rate Capacity

Explosion Proof Compact Coriolis Mass Meter 0 - 4.0MPa Pressure High Flow Rate Capacity

    • Explosion Proof Compact Coriolis Mass Meter 0 - 4.0MPa Pressure High Flow Rate Capacity
    • Explosion Proof Compact Coriolis Mass Meter 0 - 4.0MPa Pressure High Flow Rate Capacity
  • Explosion Proof Compact Coriolis Mass Meter 0 - 4.0MPa Pressure High Flow Rate Capacity

    Product Details:

    Place of Origin: Shaanxi, China (Mainland)
    Brand Name: KACISE
    Certification: ATEX IIB
    Model Number: KMF-Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/Pieces
    Price: Negotiable
    Packaging Details: carton or customers requests available
    Delivery Time: Shipped in 7 days after payment
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 3000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Accuracy Class: 0.10~0.20% Measuring Rang: 0~1000t/h
    Diameter: 3~250mm Temperature Rating: -50~350℃
    Pressure Rating: 0~4.0MPa Product Name: Coriolis Mass Flowmeter
    High Light:

    coriolis flow meter


    coriolis type mass flow meter

    Wholesale High Quality High Accuracy High Pressure Application Coriolis Mass Flow Meter




    Product Description


    KMF-Series Coriolis Mass Flow Meter directly measures the "Mass" of the medium with high accuracy based on the Coriolis Principle (Coriolis Force). The accuracy would not be affected by any factors like the temperature, pressure, density, viscosity, etc. And the compensation calculation is not required. The Coriolis Mass Flow Meter consists of two parts: the Sensor and the Transmitter. The Corioils Mass Flow Meter is designed and produced based on the national standard of explosion- proof standards. The Explosion- proof standard is Ex d ib ⅡC T5 Gb.



    Principles of Measurement


    The structure of Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid.

    A new force—Coriolis force would be appear while two conditions met: (1) vibrating with normal frequency in a pair of bended tubes, (2) fluid flowing in tubes. This force was produced upon synthesis from vibrating force and flowing force by fluid in tubes. And tubes would be wresting symmetric the center line because the force forced. Two displacement sensors on sides of tubes detect the force and output electric signals. The signals regulated, mass flow directly produced.





    Module DN Measurement Scope Work Pressure (MPa) Connection Type(mm)
    KMF-1-1AB 1.5 0~4(kg/h) 0~4 Weld Joints Φ6×1.5
    KMF-1-1A 3 0~40(kg/h) 0~4 Weld Joints Φ6×1.5
    KMF-1-1B 6 0~100(kg/h) 0~4 Weld Joints Φ10×2
    KMF-1-2A 8 0~200(kg/h) 0~4 Weld Joints Φ10×1
    KMF-1-3A 10 0~500(kg/h) 0~4 Flange DN10
    KMF-1-3B 15 0~1000(kg/h) 0~4 Flange DN15
    KMF-1-4 20 0~3000(kg/h) 0~4 Flange DN20
    KMF-1-5A 25 0~10(T/h) 0~4 Flange DN25
    KMF-1-5B 40 0~20(T/h) 0~4 Flange DN40
    KMF-1-6A 50 0~30(T/h) 0~4 Flange DN50
    KMF-1-6AB 65 0~50(T/h) 0~4 Flange DN65
    KMF-1-6B 80 0~100(T/h) 0~2.5 Flange DN80
    KMF-1-6C 100 0~150(T/h) 0~2.5 Flange DN100
    KMF-1-6CD 125 0~200(T/h) 0~2.5 Flange DN125
    KMF-1-6D 150 0~400(T/h) 0~2.5 Flange DN150
    KMF-1-6E 200 0~500(T/h) 0~2.5 Flange DN200





    The KMF Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.

    Alternative Energy

    Oil & Gas


    Food & Beverage

    Industrial Energy

    Life Sciences


    Metals and Mining


    Pulp & Paper


    Water & Wastewater





    ² Reduced fill time with higher flow rate capacity

    ² Compact design with no moving parts, no special mounting and no flow conditioning required

    ² Fast delivery and global support


    Instrument Selection

    Code.kmf-1-Product Flowmeter selection
      Code DN/Measuring range
      1A Diameter:3mm,0-40kg/h
      1B Diameter:6mm,0-100kg/h
      2A Diameter:8mm,0-200kg/h
      3A Diameter:10mm,0-5000kg/h
      3B Diameter:15mm,0-1000kg/h
      4 Diameter:20mm,0-3000kg/h
      5A Diameter:25mm,0-10th/h
      5B Diameter:40mm,0-20th/h
      6A Diameter:50mm,0-30th/h
      6AB Diameter:65mm,0-50th/h
      6B Diameter:80mm,0-100th/h
      6C Diameter:100mm,0-150th/h
      6CD Diameter:125mm,0-200th/h
      6D Diameter:150mm,0-500th/h
      6E Diameter:200mm,0-800th/h
      6F Diameter:250mm,0-1000th/h
        Code Transmitter output
        A 4-20mA(Instantaneous flow or density is optional);0-10Khz(Instantaneous flow pulse signal);RS485 Modbus RTU; HART
          Code Transmitter housing
          B Die-cast aluminum ally shell Wiring hole dimensions:M20*1.5
            Code Pressure rating
            16 1.6Mpa
            40 4.0Mpa
            xx Special customization:using this letter to ask for the customization,please informthe pressure rating
              Code Temperature rating
              A ﹣50~150°C
              B ﹣50~250°C
              C ﹣50~350°C
              D ﹣200~150°C
                Code Accuracy rating
                N 0.20%
                M 0.15%
                H 0.10%
                  Code Pressure link
                  F Standard Flanges GB/T 9123.1-2000 ANSI Weld Neck Flanges-ANSI B16.5
                  W Health type
                  L Welding thread
                  T Customization
                  Code Inspection certifcate
                    F Factory standard:factory test certificate
                    I GB:Third-party verification certificate
                      Code Material
                      A Measuring tube:316L
                      C Measuring tube:Hastellov
                      F Measuring tube:inner wall spray PTFE(for large diameter)
                      T Special customization: using this letter to ask for the customization,please inform the pressure rating
                        Code Transmitter
                        A Integratedtype
                        B(XX) Split type(cable length),with bracket
                          Code Explosion-proof mark
                          A EXD II CT5Gb
    kmf-1- 3b(0~800kg/h) A B 40 A N F F A B(10) A Typical Ordes information
    Applied Range
    Our products are widely used in petroleum, chemical, metallurgy, electricity, food, pharmaceutical, environmental protection and energy fields. More than 30 provinces and cities across the country, and exports in some countries.
    Work Shop



    our service


    1. Q: May I put my own logo on the product?

    A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.

    2. Q: How about the quality control?

    A: All products will be tested for 3 times before packed.

    3. Q: May I release trial order, 1 pc for example?

    A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.

    4. Q: Could you design according to my requirements?

    A: Of course, our team will design for you, to make our food grade pipe coriolis mass flow meter work perfectly at your end.


    Delivery details


    7 working days quick delivery. / Suggested Express company: DHL.
