| Place of Origin: | China (Mainland) |
| Brand Name: | Honeywell |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | QA-650 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Name: | Accelerometer | Bias: | Bias [mg] |
|---|---|---|---|
| Input Range: | ±30 | Input Voltage: | ±13 To±18 |
| Case Material: | 300 Series Stainless Steel | Type: | QA-650 |
| High Light: | linear acceleration sensor,triaxial acceleration sensor |
||

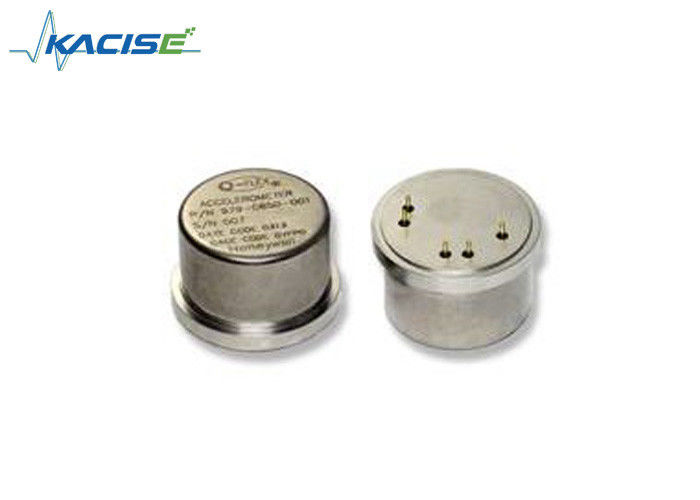

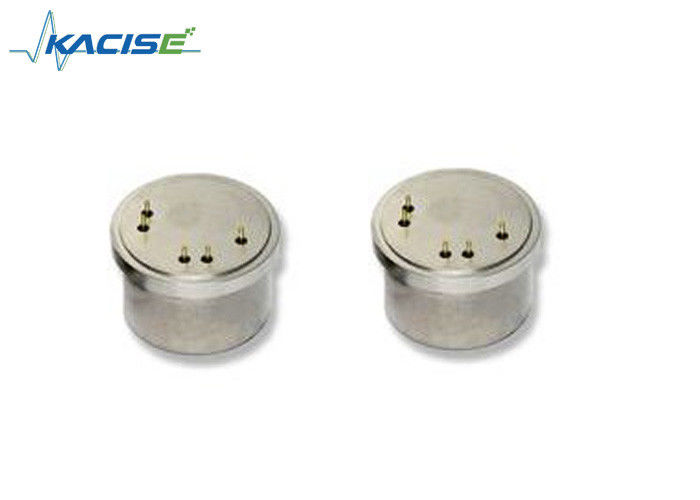

Quartz flexible accelerometer, as a kind of force feedback pendulum accelerometer, is developed on the basis of liquid floating pendulum accelerometer. The difference between the two mainly lies in that the detection mass of quartz flexible accelerometer is not floating, but is connected to the flexible beam support elastic torque is introduced. Therefore, this kind of accelerometer has higher accuracy, strong anti-disturbance ability, large measuring range and strong overload ability.
Working principle
Features
· Tactical navigation grade performance
· High value
· Environmentally rugged
· Analog output
· Compact design
· Built-in test
· Field-adjustable range
· Automotive test instrumentation
· Braking system deceleration
· Bridge and building sway and tilt monitoring
· Industrial and robotic control
· Land vehicle navigation
· Subway and train ride comfort control
· Offshore drilling platform motion monitoring
Configuration Drawings
| Performance | |
| Input Range [g] | ±30 |
| Bias [mg] | <15 |
| One-year Composite Repeatability [µg] | <2500 |
| Temperature Sensitivity [µg/ºC] | <100 |
| Scale Factor [mA/g] | 1.20 to 1.40 |
| One-year Composite Repeatability [ppm] | <2500 |
| Temperature Sensitivity [ppm/ºC] | <200 |
| Axis Misalignment [µrad] | <15000 |
| Vibration Rectification [µg/g2rms] | <100 (50-500 Hz) |
| Intrinsic Noise [µg-rms] | <3000 (0-10,000 Hz) |
| Environment | |
| Operating Temperature Range [ºC] | —55 to +96 |
| Shock [g] | 100 |
| Vibration Peak Sine [g] | 25 @ 30-500 Hz |
| Resolution/Threshold [µg] | <10 |
| Bandwidth [Hz] | >300 |
| Thermal Modeling | |
| YES | |
| Electrical | |
| Quiescent Current per Supply [mA] | <16 |
| Quiescent Power [mW] @ ±15 VDC | <480 |
| Input Voltage | ±13 to±18 |
| Physical | |
| Weight [grams] | 51 Nominal, 65 Max. |
| Diameter below mounting surface [inches] | Ø1.045 ±0.005 |
| Height - bottom to mounting surface [inches] | 0.617 Max. |
| Case Material | 300 Series Stainless Steel |
