Place of Origin:
China (Mainland)
Brand Name:
KACISE
Certification:
certificate of explosion-proof, CE
Model Number:
KPG201

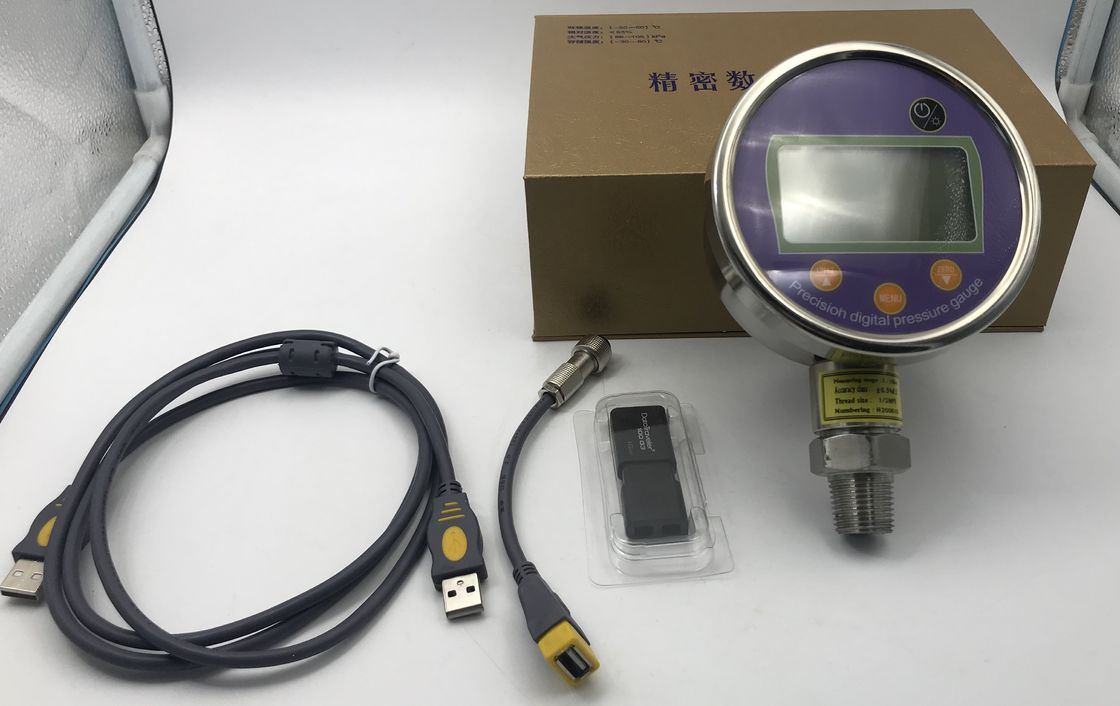

KPG201 Digital Pressure Gauge with Data Logger
Introduction
KPG201 Battery Operated Digital Pressure Gauge with Data Logger is a digital gauge with local display and data storage and communication function together. 10 thousand data storage capacity, USB communication and other bundled software which has functions of data acquisition, analyze,report and graph. Humanized interface design and efficient data processing ability. Six figures display on big LCD screen, very striking, which is the essentials of experimental data acquisition
Feature
0.025 ~ 7200 seconds per time acquisition speed
4.1V rechargeable battery, not need to change battery
11000 datas storage capacity, easy to carry and collect data
Magnetic induction button design
Pressure percentage bar charts shows
Signal isolation technique, anti-electromagnetic interference and RF technique
Zero stable technology, automatic temperature compensation technologyn
Application
Oil and gas pressure data collection, storage and analysis
Urban water network, heat supply network and gas network pressure data collection, storage and analysis
Lab pressure test and analyze
Verify pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge
Measuring corollary software of pressure monitor and other pressure instruments,
Accuracy grade can arrive 0.05, which can meet high precision pressure acquisition
Can work well in corrosive, impact and versatility environment
Meet the lab and industrial field high precision pressure acquisition requirement
| Item | Spec. |
| Pressure range | -100kpa~250pa~5kpa~250Mpa |
| Accuracy | 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02% |
| Display | 5-digit dynamic display + percentage indicator |
| Pressure unit | Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2 |
| Overload pressure | 150% FS |
| Destruction pressure | 200% FS |
| Power supply | 4.2V rechargeable lithium battery |
| Temperature | -20 ℃ ~ 60 ℃ |
| Humidity | ≤ 85% RH |
| Calibration environment | 20 ℃ ± 2 ℃ |
| Explosion-proof level | ExiaIICT4 optional |
| IP Grade | IP66 |
| Data record limit | 11000 |
| Process connection | M20 × 1.5 (male), special thread customizable |
| Dimensions | height 170mm, width 110mm, thickness 50mm |
Our Services
Company information
Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 saleman, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
