|Place of Origin:||China (Mainland)|
|Certification:||Intrinsically safe mode E, RoHS; CE|
|Minimum Order Quantity:||0-100|
|Packaging Details:||each unit has individual box and all boxes are packed in standard packages or customers requests available|
|Delivery Time:||5-8 work day|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Protection Level:||IP68||Deepest Depth:||Underwater 60 Meters|
|Principle:||NDIR Infrared Absorption||Measuring Range:||2000ppm/5000ppm/10000ppm|
|Response Time:||10 Sec||Accuracy:||±20ppm/±50ppm/±300ppm|
water turbidity sensor,
oil in water sensor

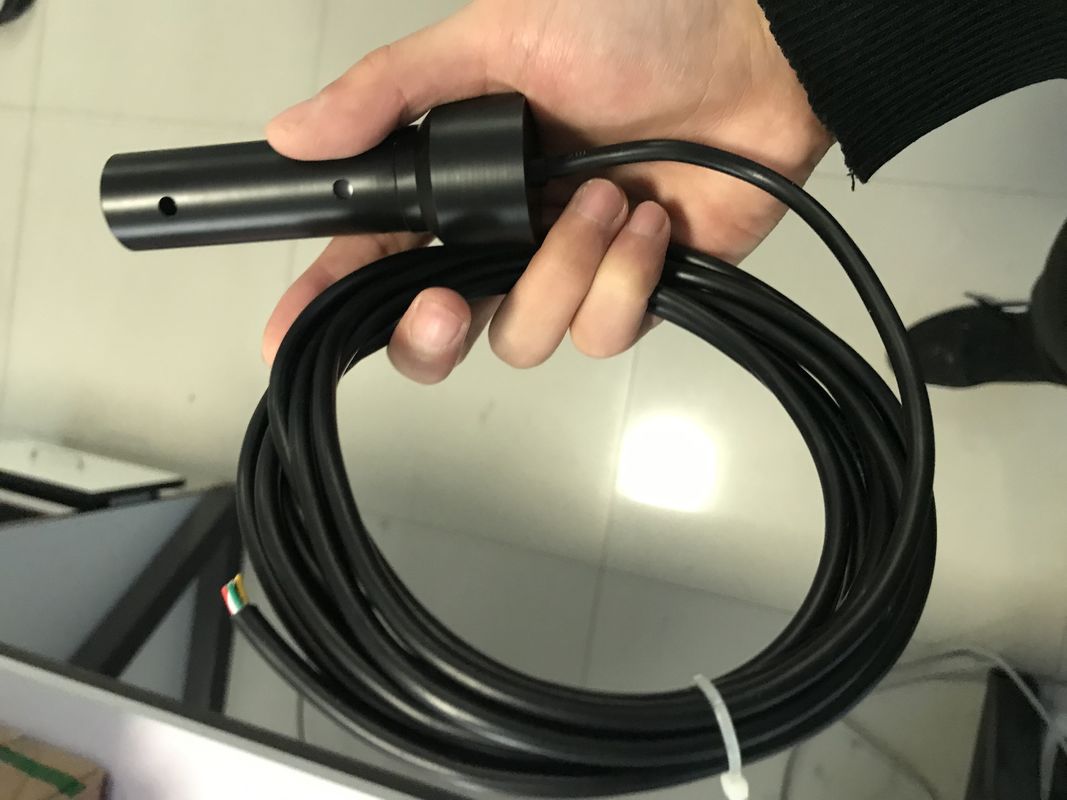

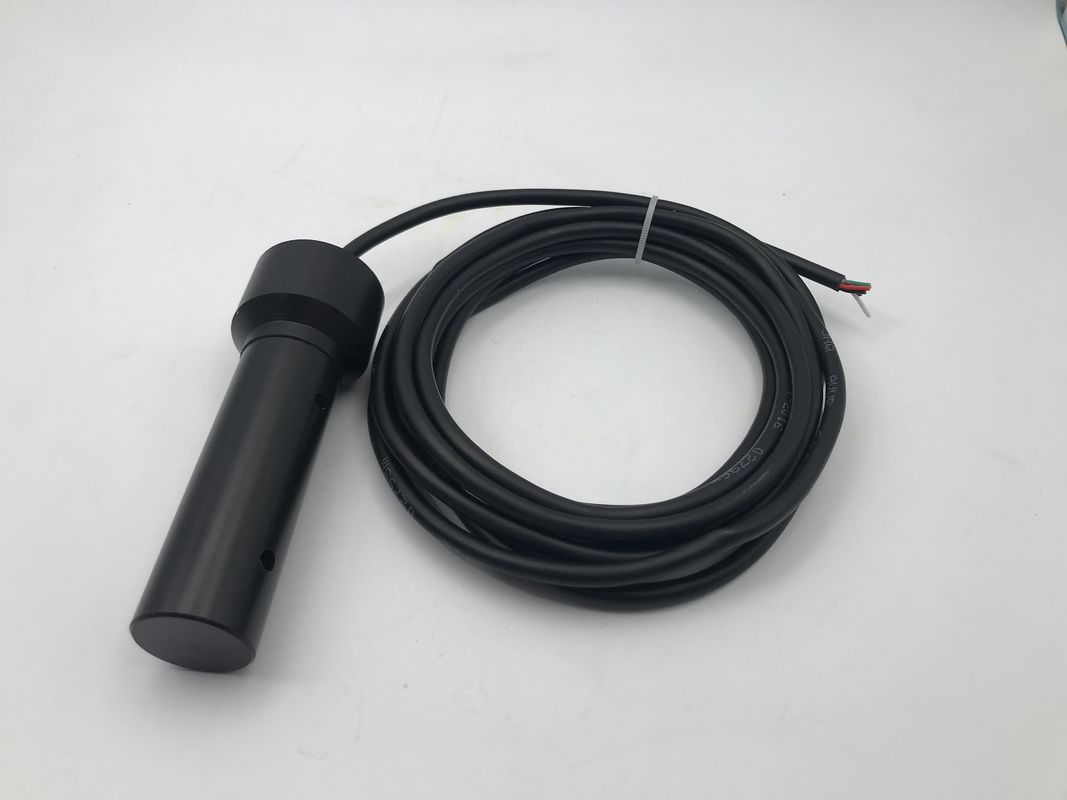

KWS5000 Dissolved CO2 Sensor In Water For Shrimp Fishing And Aquaculture In Seawater Or Fresh Water
KWS5000 is a compact, lightweight and easy to use sensor for measuring carbon dioxide content in water, which can be adapted to multiple environments, such as natural water, sewage, oil, oil-water mixed environment, etc. KWS5000 adopts imported light source, dual channel detector and dual space compensation. KWS5000 has good selectivity, anaerobic dependence and service life. Meanwhile, it has UART, IIC digital output, analog voltage output and PWM frequency output mode, which is convenient for customers to use. KWS5000 provides users with air calibration commands for zero calibration and sensitivity calibration, as well as KCDL pins for manual calibration. The sensor module can be calibrated using external air. The KWS5000 uses convection diffusion and a protective cover to accelerate fluid diffusion and protect gas penetration. The shell is removable and easy to clean and maintain. KWS5000 can be used to measure the concentration of dissolved CO2 gas in water. Also can be used for HVAC and indoor air quality monitoring, agricultural and livestock production process monitoring, agricultural products storage status monitoring. It can be installed in home networks, ventilation systems and controllers. Wall-mounted, robotic and automotive applications can also be applied to other devices to control air quality or monitor hypoxia.
|Principle||NDIR infrared absorption|
|Response time||10 sec|
|Deepest depth||Underwater 60 meters|
|Temperature range||0 ~ 80°C|
|Output||Support RS-485, MODBUS protocol|
|Power supply||DC 5V|
|Probe cable length||Φ27*104.8mm|
|Probe cable length||10 m, customizable 5 m, 15 m and 30 m cable|
|cap life||1 year|
|Maximum working pressure||1.5bar|
