| Place of Origin: | CHINA |
| Brand Name: | kacise |
| Certification: | CE,FDA |
| Model Number: | KBU601 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | $100-$2000 |
| Packaging Details: | Common package or custom package |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Sensor:Protection Level: | Ip68 | Sensor:Temperature: | 0-60°C |
|---|---|---|---|
| Sensor:Material: | PVC | Sensor:Cable Length: | Dedicated PH Cable, Standard 5 Meters (extendable) |
| Sensor:Operating Temperature: | 0-60°C | Sensor:Storage Temperature: | -10-60°C |
| High Light: | FDA water quality monitoring sensors,KPH500 Water Quality Probe,PH/ORP Water Quality Probe |
||

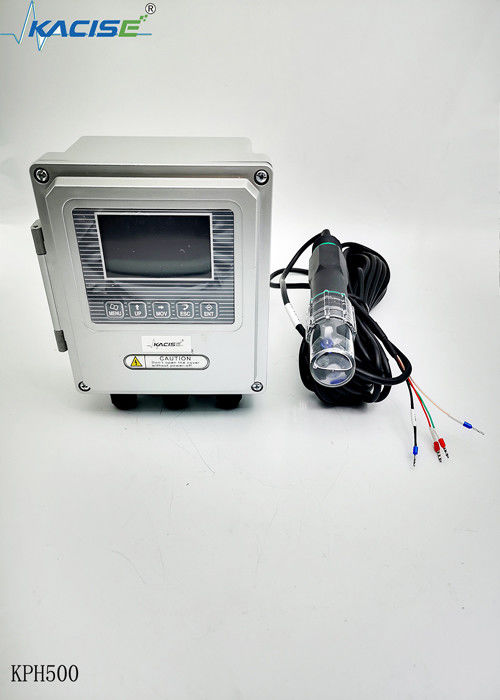

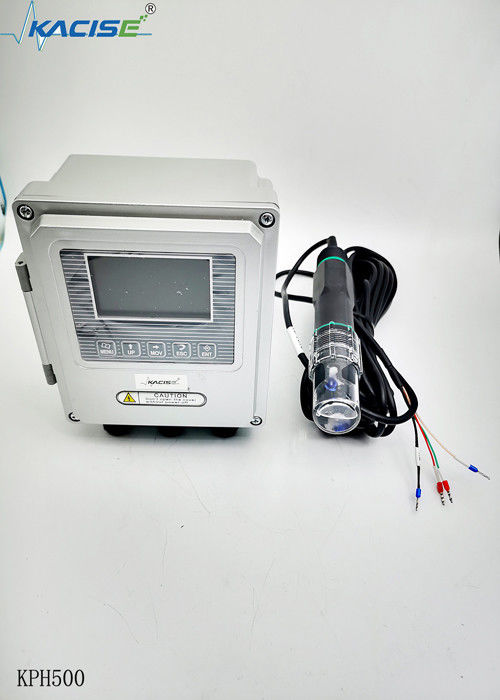

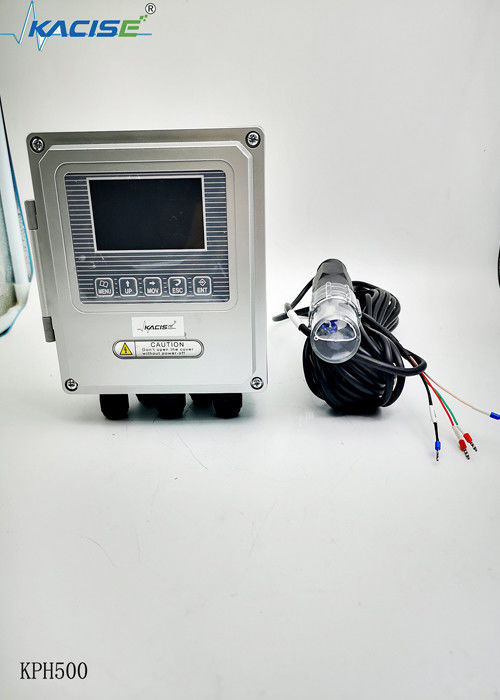

KPH500 PH/ORP sensor,Compact, flexible and easy to use,black PVC,gray meter host,water quality test.
Production Introduction
The PH/ORP meter is a precision meter used to detect the pH/oxidation-reduction potential of liquids. It is designed with a microcomputer based on the principle of the primary battery and is simple to operate and easy to maintain. Not affected by color, turbidity, colloidal substances, oxidants and reducing agents, it is suitable for the determination of various media such as clean water, wastewater, industrial water, chemical reagents, etc., and is widely used in agriculture, environmental protection and industry.
The sensor uses a composite electrode, which can eliminate the influence of the inconstant "K" value,
A long-term, stable and accurate measurement of PH is realized. The internal structure of the sensor is shown on the right.
PH/ORP size structure chart
Host size
Sensor size
PH/ORP technical parameters
| Class | Performance | PH parameter | OPR parameter |
| Host | Measuring range | 0-14PH | -2000mv-2000mv |
| Resolution | 0.01PH | 1mv | |
| Precision | 2% Calibration accuracy | ||
| Operating Temperature | Transmitter 0-65℃ | ||
| Material | PVC | ||
| Protection Level | I65/IP67(customized version) | ||
| Signal Output |
485 communication/4-20mA analog output/support HART protocol/NB.GPRS.LORA Communication (function option) |
||
| Supply Voltage | AC220V or DC24V (choose one of the two) | ||
| Power Consumption | <1W | ||
| Display | LCD Chinese display/TFT color LCD (customized version) | ||
| Installation Method | Wall mount | ||
| Sensor | Temperature Compensation | Automatic temperature compensation | |
| Protection Level | ip68 | ||
| Temperature | 0-60℃ | ||
| Sensor Material | PVC | ||
| Cable Length | Dedicated PH cable, standard 5 meters (extendable) | ||
| Operating Temperature | 0-60℃ | ||
| Storage Temperature | -10-60℃ | ||
| Installation Method | Bracket drop-in installation | ||
| Ordering Information Selection Table | ||
| KPH500 | PH/ORP analyzer | |
| Power supply | DC24V | |
| AC220V | ||
| Cable length | 5m | |
| 10m | ||
| 15m | ||
| 20m | ||
| Temperature compensation | Sensor without temperature compensation | |
| Sensor with temperature compensation | ||
| Signal output | Only 4-20mA | |
| Only 485 | ||
| Also with 4-20mA , 485 signal output | ||
| Special custom signal | ||
| KPH500-P-DC24V-5m-Sensor without temperature compensation-Only 485 | PH host, with DC24V adapter, cable between host and sensor,The cable length is 5 meters, the sensor is equipped without temperature compensation, and is only 485 communication. | |
| KPH500-R-AC220V-10m-Sensor with temperature compensation-Only 485 |
Optional ORP host, with 220V adapter, line between host and sensor |
|
Q&A
1.Does lemon make water alkaline?
Fresh lemons: If you prefer not to use baking soda, a fresh lemon added to your drinking water will also, eventually, make your purified drinking water more alkaline. ... Once you drink the acidic lemon water, it will become alkaline as your body reacts with the lemons' anions during the digestive process.
2.What happens if pH is too high in pool?
If the pH gets higher than 7.8, the water is becoming too alkaline. When water is too alkaline, it reduces the effectiveness of the chlorine — the pool chemical that kills pathogens. Water with a pH that's too high also can cause skin rashes, cloudy water and scaling on pool equipment.2019年7月26日
3.Can I use vinegar to lower pH in pool?
Lowering pH with Vinegar Commercially distilled white vinegar, often 5 percent acetic acid, has a pH of 2.4 and can be used to lower the pH in salt water aquariums. This amount should lower the tank pH by about 0.3 points. ... Most pool experts recommend a pool pH between 7.2 and 7.8.
4.Is pH 9 Water Safe?
Alkaline water has become a popular drinking water choice over the past few years. Some people say that drinking slightly alkaline water — with a pH between 8 and 9 — can improve your health. They say it may make you age more slowly, maintain a healthy pH in your body, and block chronic disease like cancer.
5.What pH level is harmful to humans?
Although the pH of blood ranges from 7.35-7.45, the pH of other body fluids is different. pH indicates the level of H+ ions, where low pH indicates too many H+ ions and high pH indicates too many OH- ions. If the pH levels drop below 6.9, it can lead to coma.
