Place of Origin: | CHINA |
Brand Name: | kacise |
Certification: | CE |
Model Number: | KMPW300 |
Minimum Order Quantity: | 0-100 |
---|---|
Price: | $0-$700 |
Packaging Details: | Common package or custom package |
Delivery Time: | 3-10days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100 |
Display/Resolution: | 5-inch Touch Screen (color)/800*480 | Controller Size: | 235.5mm * 184.5mm * 110.6mm |
---|---|---|---|
Power Supply: | (85 ~ 260) V AC, (9 ~ 30) V DC (to Be Customized) | Power Consumption: | Less Than 8W |
Storage Temperature: | (-20 ~ 70)℃ | Operating Temperature: | (-10 ~ 60)℃ |
High Light: | 8W Water Quality Monitoring Sensor,IP55 Water Quality Monitoring Sensor,Polarographic Dissolved Oxygen Water Quality Sensor |

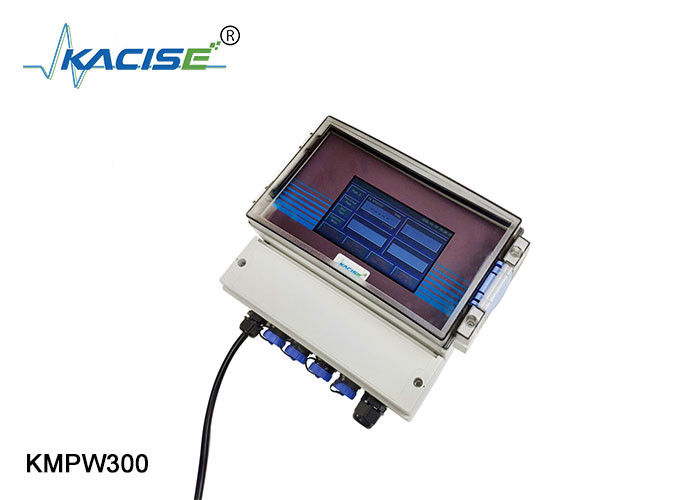

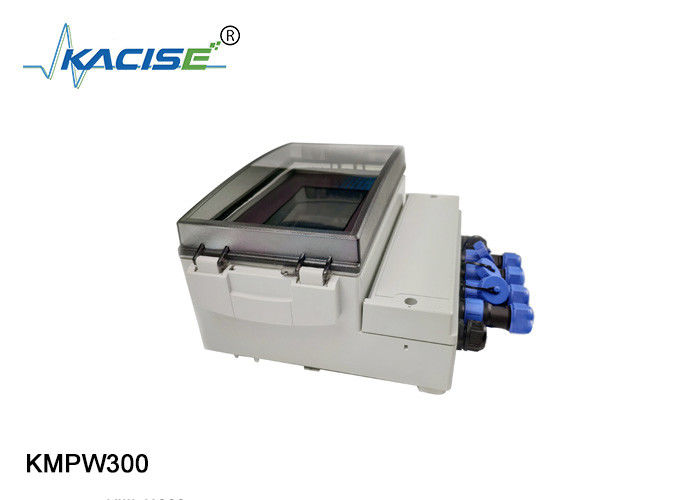

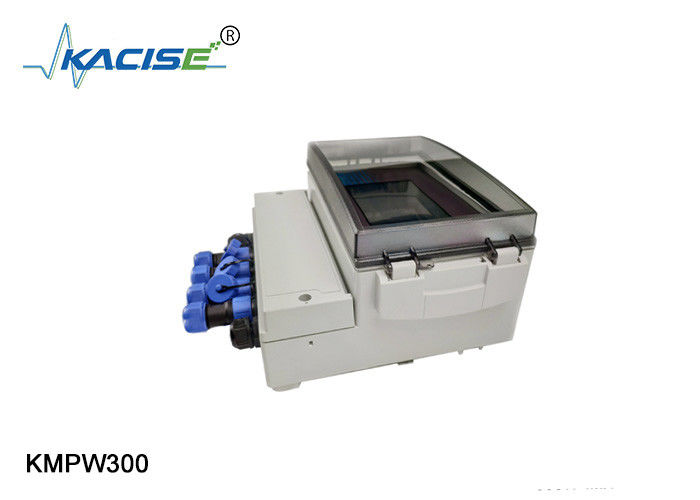

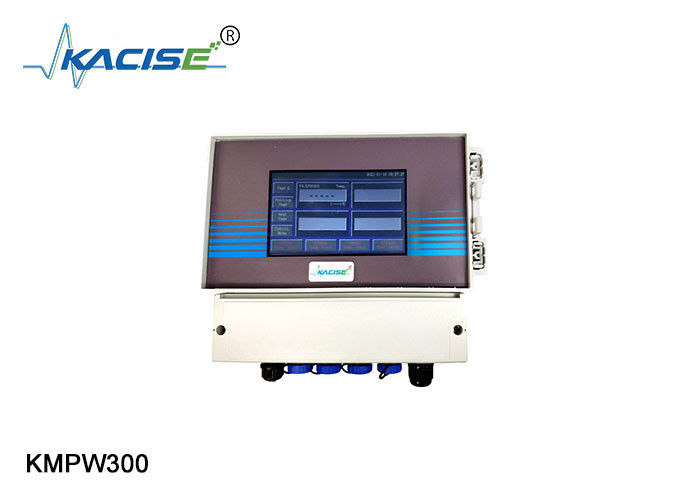

The Multi-parameter online monitor is composed of a controller, a pH sensor, a conductivity sensor, a dissolved oxygen sensor and a turbidity sensor...4 sensors can be connected at the same time, at the same time there are analog, digital, switch and other output interfaces. Sensor output RS485 signal, now
The anti-interferenceability is stronger when the field is applied.
Table 1-1 Instrument Configuration Information
Serial Number | Item | Note |
1 | Controller | |
2 | PH Sensor | |
3 | Polarographic Dissolved Oxygen Sensor | alternative |
4 | Fluorescence Dissolved Oxygen Sensor | |
5 | Conductivity Sensor | |
6 | Turbidity Sensor | |
7 | Membrane cap + electrolyte 1 bottle | use for polarographic dissolved oxygen |
8 | Calibration cups | use for turbidity calibration |
Table 3 Technical Specification of Controller
Display/Resolution | 5-inch touch screen (color)/800*480 | |
Controller Size | 235.5mm * 184.5mm * 110.6mm | |
Power Supply | (85 ~ 260) V AC, (9 ~ 30) V DC (to be customized) | |
Power Consumption |
less than 8W
|
|
Storage Temperature |
(-20 ~ 70)℃
|
|
Operating Temperature |
(-10 ~ 60)℃
|
|
Shell Material |
PC, ABS
|
|
Protection Class |
IP55
|
|
The Number of Sensors Supported |
4 digital sensors
|
|
Analog Output |
6 (0/4 ~ 20) mA analog output, maximum load of 500 ohms
|
|
Relay |
6-way relay (120VAC,24VDC/1A)
|
|
Digital Output | 1 RS485 output, 1 RS232 output |

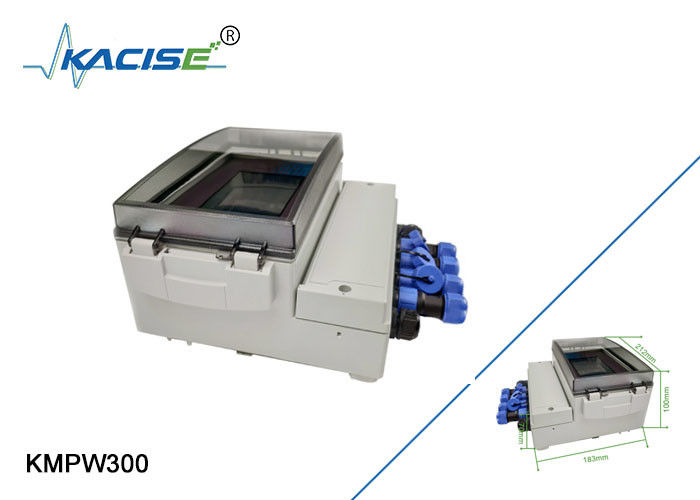

Figure 1-6 Controller Installation Size Diagram
1.6. Application
