| Place of Origin: | CHINA |
| Brand Name: | kacise |
| Certification: | CE |
| Model Number: | KTU300 |
| Minimum Order Quantity: | 0-100pcs |
|---|---|
| Price: | $0-$500 |
| Packaging Details: | Common package or custom package |
| Delivery Time: | 3-10days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs/day |
| Measurement Parameter:: | Turbidity, Temperature | Method Of Measurement:: | Infrared Scattering Method |
|---|---|---|---|
| Accuracy:: | ≤ ± 2% | Repeatability:: | ≤1% |
| Esolution:: | 0.01 NTU | Protection Level:: | IP68 |
| High Light: | Auto Cleaning Online Turbidity Sensor,IP68 Water Quality Monitoring Equipment,Infrared Scattering Online Turbidity Sensor |
||

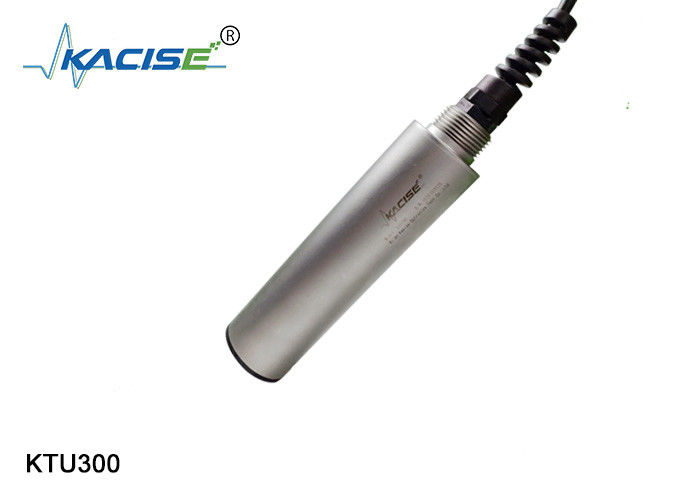

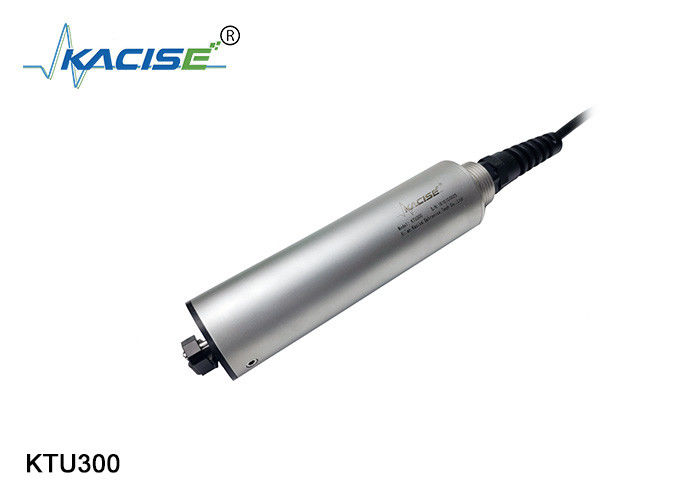

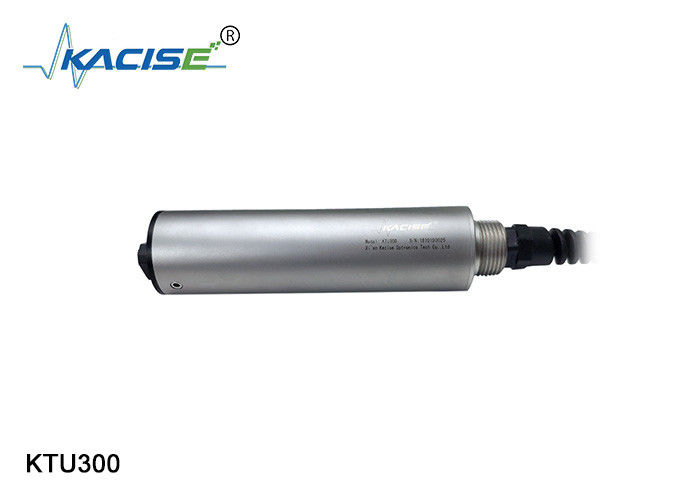

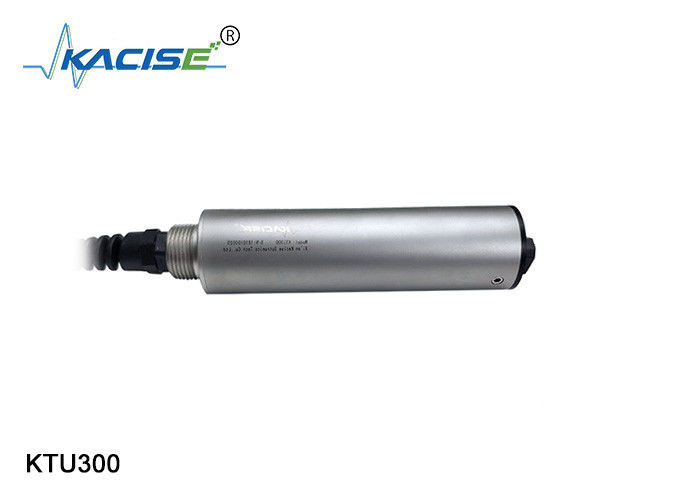

KTU300 online turbidity analyzer is an online water quality analyzer based on OSA optical water quality analysis platform.
Integrated design, using ISO7027 standard method, digital, intelligent sensor design concept, can automatically compensate for voltage fluctuations, device aging, temperature changes on the impact of measured values. RS485 signal output, easy networking and system integration, widely used in surface water, pollution sources and other industries.
Integrated design, anti-electromagnetic interference
High brightness infrared LED is used as light source to eliminate the influence of sample color
The unique optical and electronic filtering technology is used to eliminate the influence of ambient light on the measurement

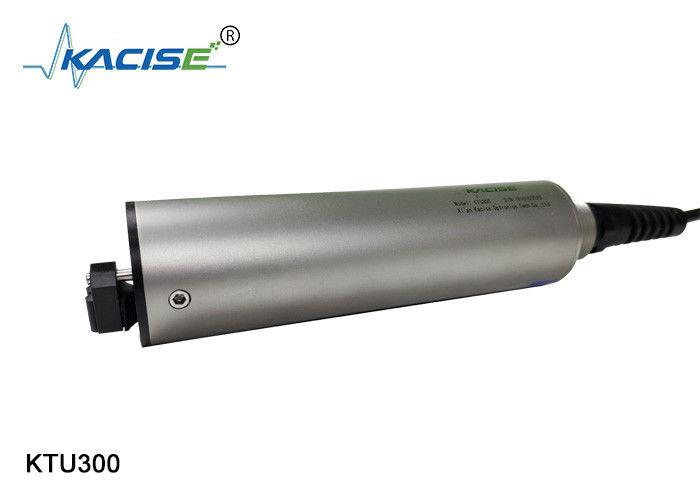

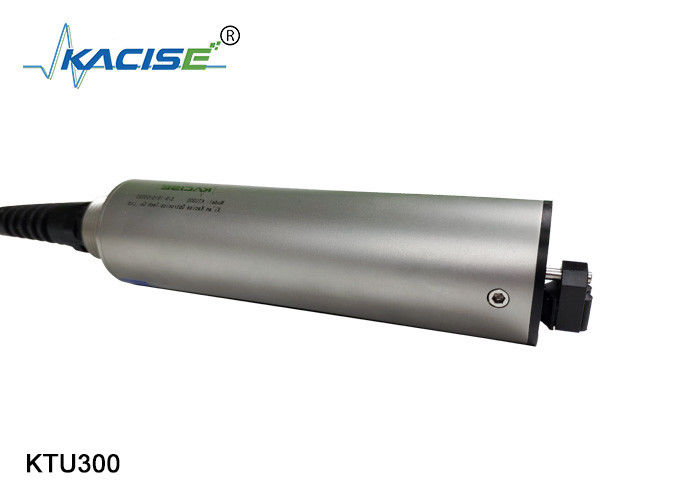

Cleaning brush automatic cleaning, greatly reducing the maintenance workload
Stainless steel case, IP68 waterproof grade, suitable for various working conditions
RS485 signal output, Standard Modbus protocol, easy integration, networking
| Model number | KTU300 |
| Measurement parameter | Turbidity, temperature |
| Method of measurement | Infrared scattering method |
| Measurement mode | Immersion measurement |
| Measuring range |
Turbidity: (0 ~ 100/500/2000/4000) NTU Temperature: (0 ~ 60) °C |
| Accuracy | ≤ ± 2% |
| Repeatability | ≤1% |
| Resolution | 0.01 NTU |
| Detection limit | 0.05 NTU |
| Response time | ≤5s |
| Zero Drift (24h) | ≤ ± 3% F.S. |
| Range Drift (24h) | ≤ ± 3% F.S. |
| Calibration period | Six months |
| Temperature range | (0 ~ 60) °C |
| Protection level | IP68 |
| Cleaning mode | Automatic cleaning of mechanical brush |
| MTBF | ≥1440h/Time |
| Means of communication | RS485(Modbus RTU), maximum baud rate 115200 bps |
| Supply voltage | (12/24) V DC |
| Power consumption | < 1W (in non-cleaning mode) |
| Material Quality | Stainless steel, POM |
| Weight | 0.5 kg |
| Contour dimension | 160 mm × φ40 mm |
ordering informations
| Ordering Information selection table | |||||
| KTU300 | Turbidity | ||||
| Code | Power supply | ||||
| 24 | DC24V | ||||
| 220 | AC220V | ||||
| Code | Material of Electrode | ||||
| Glass | Glass sensor electrode | ||||
| EPDM | Food Grade EPDM Rubber / FDA Compliant Material | ||||
| Metal | Metal sensor electrode | ||||
| Code | Signal output | ||||
| 4-20mA | Only 4-20mA | ||||
| RS485 | Only 485 | ||||
| 4-20mA&RS485 |
Also, with 4-20mA, 485 signal output
|
||||
| custom | Special custom signal | ||||
| Code | Cable length | ||||
| 5 | 5 m | ||||
| 10 | 10 m | ||||
| 15 | 15 m | ||||
| 20 | 20 m | ||||
| KTU300- | 24 | Glass | 4-20mA&RS485 | 5 |
Turbidity host, with DC24V adapter, Material of Electrode is glass, and is equipped with 485 communication and 4-20mA signal output., cable between host and sensor, the cable length is 5 meters.
|
