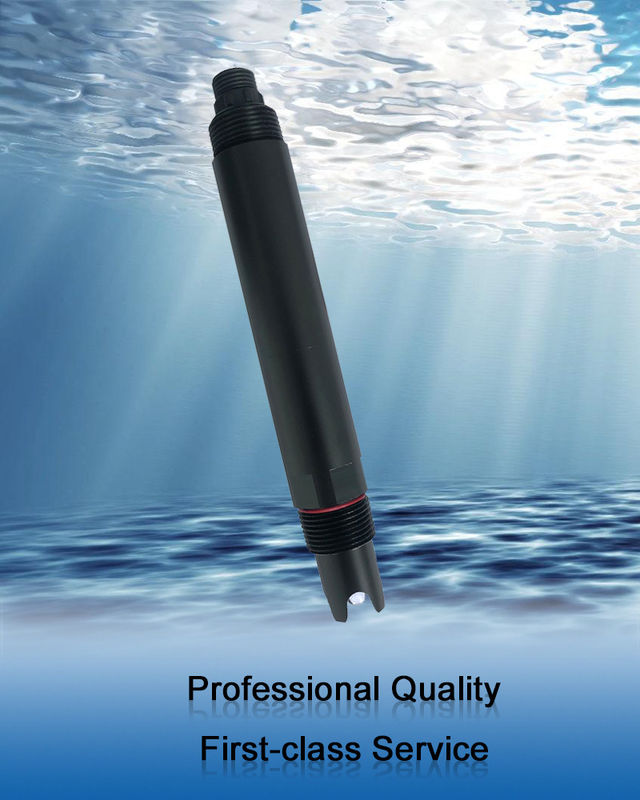

KPH601 Online PH Sensor Signal Output: RS-485 (Modbus/RTU Protocol)

1.Temperature compensation

The pH range (0-14) is determined through the ion product of the water, which to a very small extent dissociates into H+ and OH– ions. [H+ ] [OH– ] = 10–14 = I (25°C) The ion product I is strongly dependent on temperature.

The temperature influences the pH measurement through four factors:

• Chemical equilibria are temperature dependent

• Temperature dependence of the slope (see Nernst equation below)

• Position of the isothermal intersection

• Differing response time of the electrode (caused by temperature changes).

Every measuring solution has a characteristic temperature and pH behaviour (temperature coefficient). In general you should assume that a
temperature change results in a pH change (see buffer/temperature
table below). The reason for this is the temperature dependent dissociation which causes a change in the H+.

Buffer/temperature table Example:

3.Technical Specifications

4.Dimensional Drawing

Note:The sensor connector is M16-5 core waterproof joint male head.

5.Installation

Note: The sensor should not be installed upside down or horizontally when installed, at least at an angle of 15 degrees or more.
