Place of Origin: | CHINA |
Brand Name: | kacise |
Certification: | CE |
Model Number: | KPH310 |
Minimum Order Quantity: | 0-100 |
---|---|
Price: | $0-$2000 |
Packaging Details: | Common package or custom package |
Delivery Time: | 3-10days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100 |
Range Range: | 0 ~ 14 Ph | Resolution: | 0.01 Ph |
---|---|---|---|
Precision: | ± 0.1 Ph | Operating Temperature: | 0 ~ 65 °C |
Working Pressure: | < 0.2 Mpa | Temperature Compensation: | Automatic Temperature Compensation (NTC) |

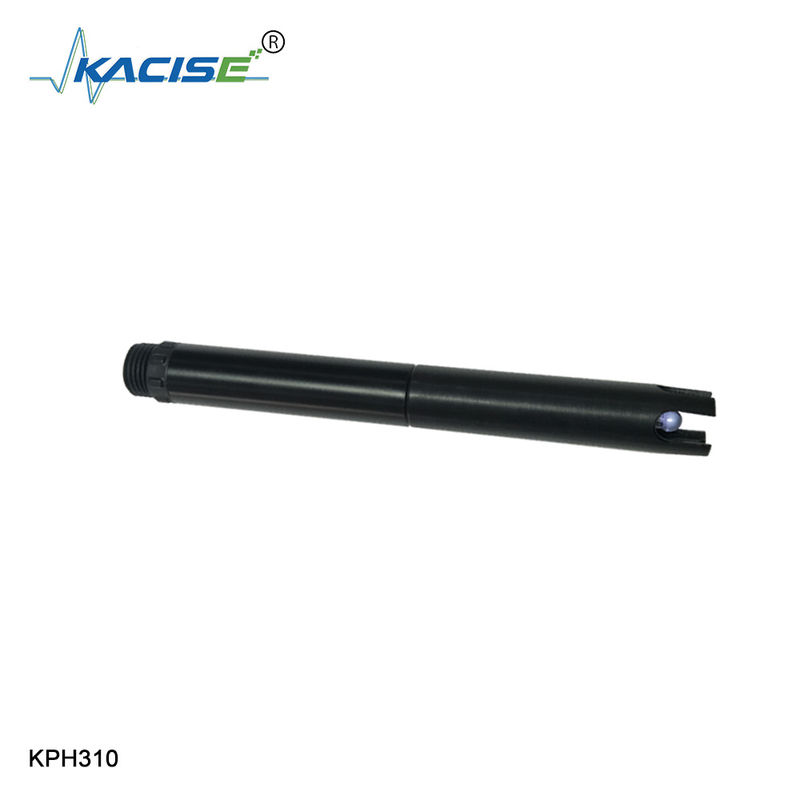

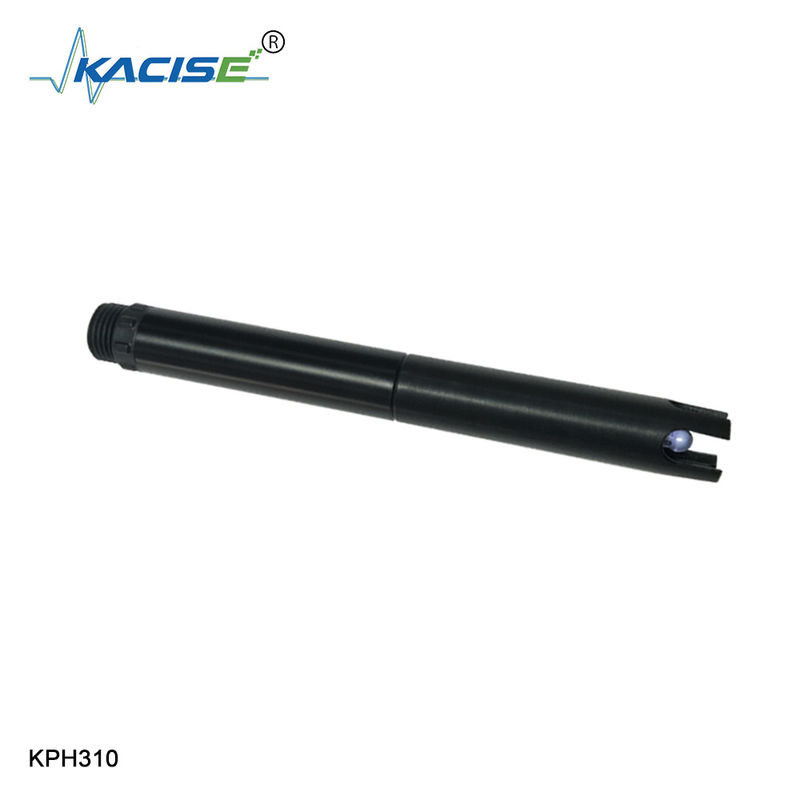

High Light: | Double High Impedance Online PH Sensor,Immersion Mount Online PH Sensor |
For environmental water quality monitoring, acid/alkali/salt solution, chemical reaction process, industrial production process, can meet the majority of industrial applications online pH measurement requirements.
Model Number | KPH310 |
Range Range | 0 ~ 14 Ph |
Resolution | 0.01 ph |
Precision | ± 0.1 ph |
Operating Temperature | 0 ~ 65 °C |
Working Pressure | < 0.2 mpa |
Temperature Compensation | Automatic temperature compensation (NTC) |
Power Supply | 12 ~ 24 VDC ± 10% |
Signal Output | RS-485(Modbus/RTU) |
Contact Material | Pom |
Installation Mode | Immersion mounting |
Cable Length | 5 meters, another length can be customized |
Calibration Mode | Two-point calibration |
Power Consumption | < 0.05 W |
Protection Level | IP68 |
Tips: Q&A
1.What is the difference between ORP and pH?
ORP is like pH in that pH indicates how acidic or basic a solution is based on the hydrogen ion activity within the solution and ORP indicates the reduction- oxidation status of a solution based on the collective electron activity within the solution.
2.What is a good ORP level?
Normal tap water, bottled water, rain water, and so forth, have a positive ORP generally between 200-400 mV,8 and even as high as 500-600 mV depending on location.
3.Is negative ORP good?
The more positive ORP, the more oxidize the solution is, that means the solution has a higher ability to destroy harmful contaminants. ... The more negative ORP reading, more anti-oxidizing the solution is, that means the solution contains less dissolved oxygen as the organics are consuming the oxygen.
