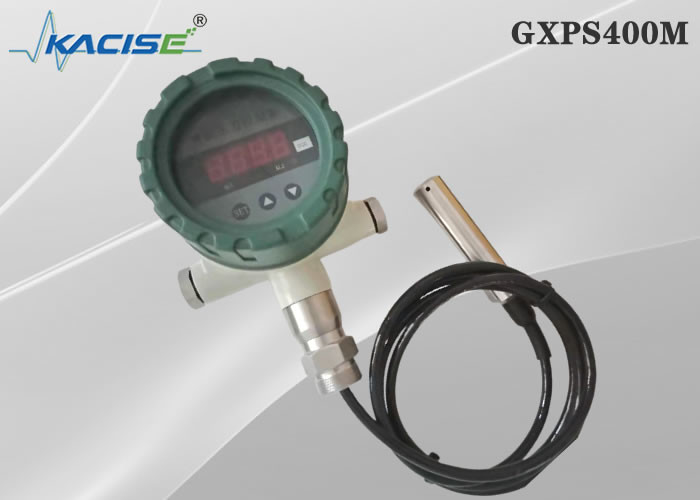

High Accuracy Small Size Split Pressure Level Transmitter GXPS400M Series

High Accuracy Small Size Split Pressure Level Transmitter GXPS400M Series

  • High Accuracy Small Size Split Pressure Level Transmitter GXPS400M Series
  • High Accuracy Small Size Split Pressure Level Transmitter GXPS400M Series
High Accuracy Small Size Split Pressure Level Transmitter GXPS400M Series
Product Details:
Place of Origin: China
Brand Name: Kacise
Model Number: GXPS400M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 90USD/pc
Packaging Details: carton
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100+
Contact Now
Detailed Product Description
Pressure Range: 0~1......500mH20 Load Pressure: 1.5 Times Nominal Value Pressure
Rupture Pressure: 3 Times Nominal Value Pressure Accuracy Stability: 0.25%F.S, 0.5%F.S
Output Signal: 4~20mA/0/1~5Vdc/0~10V Operating Temperature: -40°C~85°C
High Light:

20mA Pressure Level Transmitter

,

Precision Split Level Transmitter

,

Split Precision Pressure Sensor

GXPS400M Series Level Transmitter
Introduction
GXPS400M series level transmitter is a highly reliable, high stability, high accuracy, small size, split level transmitter. Widely used in the detection of a small diameter pipe and the liquid level in the reservoir fluid height. Such as water, oil, mildly corrosive liquids.
The product uses the 1Cr18Ni9Ti stainless steel structure with import oil-filled pressure core, dedicated zoom and V / I transmitter conversion circuit, which can facilitate their zero and full scale calibration and external zero and span programmable regulation.
Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.
The intrinsically safe certificate; explosion proof; CE certificate. Non polarity; circulation output lead of the two-wire and three-wire voltage output for both AC and DC.
Feature

  • Ø24 diameter
  • Split structure
  • 0.1, 0.25, 0.5%F.S
  • The diffused silicon oil-filed core
  • Non-polarity two wire current output
  • Multiple pressure range and signal output
  • Intrinsically safe, explosion proof ,CE certificate

Application

  • Tail dam water level
  • Hydrologic monitoring
  • Water saving irrigation
  • Small caliber tube level
  • Constant pressure water supply
  • Frequency conversion water supply
  • Liquid storage tank liquid level height
  • Circulation fluid consumption monitoring
  • Electronic interface and signals definition

High Accuracy Small Size Split Pressure Level Transmitter GXPS400M Series 0



Rear cover inside connection terminal definition

High Accuracy Small Size Split Pressure Level Transmitter GXPS400M Series 1



Parameter

High Accuracy Small Size Split Pressure Level Transmitter GXPS400M Series 2



Ordering information
GX-Type-Range-Output-Accuracy-Power-Structure-Cable length-Package
1. Type: GXPS400M
2. Range: 1m…500m= the upper limitation of the range
3. Output: A=4~20mA, V=0~5V, V1=1~5V, V2=0~10V
4. Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S,
5. Power: 24VDC, 11~30Vdc, or customized
6. Structure: T= submersible type, G=F=split, C=customized
7. Cable length: XXm=XX meter 1-150m
8. Package: Bb, Foam
