| Place of Origin: | China |
| Brand Name: | Kacise |

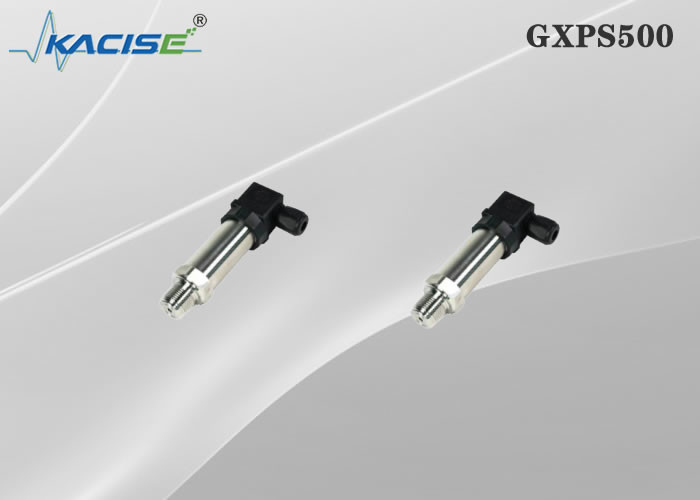

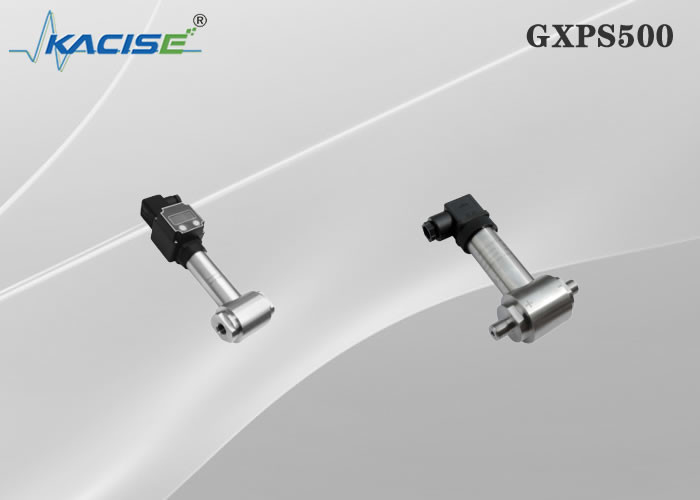

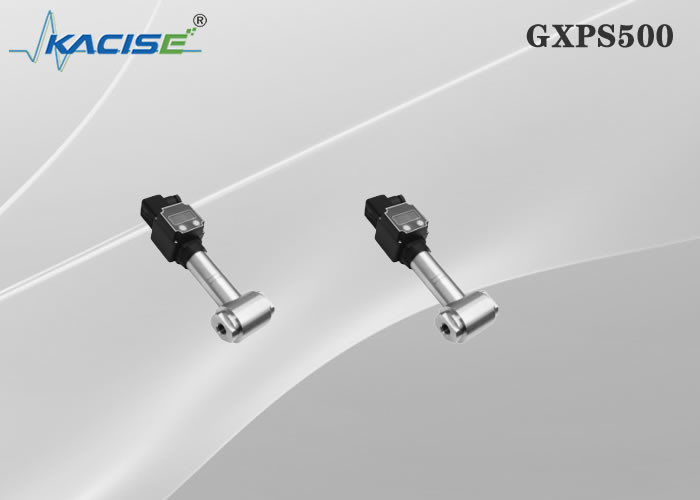

| Model Number: | GXPS500 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 110USD/pc |
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Pressure Range: | 0~±5kPa……±5000kPa | Load Pressure: | 1.5 Times Nominal Value |
|---|---|---|---|
| Pipeline Isostatic Pressing: | 3, 5, 10 Times Nominal Value 20MPa | Accuracy: | ±0.25%F.S, ±0.5%F.S |
| Stability: | Typical Value 0.1%F.S Max. Value: 0.2%F.S | Operating Temperature: | -40°C~85°C |
| Compensation Temperature: | -10 °C~70 °C | Medium Compatibility: | All Caustic Medium Compatible With 1Cr18Ni9Ti & 316L |
| High Light: | GXPS500 Differential Pressure Transmitter,Intrinsic Safety Differential Pressure Transmitter |
||
Feature
AC,DC voltage output
Various screw connection
Accuracy ±0.25,±0.5%F.S
Diffused-Silicon oil-filled core
Non polarity 2 line current output
Display and output node available
Multiple pressure range and output signal
Intrinsically safe mode , isolation explosion protection, CE
Against severe electromagnetic interference, lightning protection
Application
Effluent treatment
Flow measurement
Underwater engineering
Water-efficient irrigation
Coal mine air pressure difference
Hydropower station stage difference
Centralized air-condition Terminal Control
City flood protection and water logging drainage project
Electronic interface and signals definition
Parameter
| Spec. | Value | ||
| Pressure range | 0~±5kPa……±5000kPa | ||
| Load pressure | 1.5 times nominal value | ||
| pipeline Isostatic pressing | 3, 5, 10 times nominal value 20MPa | ||
| Accuracy | ±0.25%F.S, ±0.5%F.S | ||
| Stability | Typical value 0.1%F.S, Max. value: 0.2%F.S | ||
| Operating temperature | -40°C~85°C | ||
| Compensation temperature | -10 °C~70 °C | ||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti & 316L | ||
| Electrical properties | two-wire system | Three-wire system | |
| Output signal | 4~20mA | 0/1~5V | 0~10V |
| Power supply | 10~30Vdc | 8~36Vdc/ac | 11~30Vdc/ac |
| Load resistance | (U-10)/0.02Ω | >100kΩ | |
| Min. isolation | >100M Ω@50V (between case & terminations) | ||
| Electric Strength | 500V@60 second | ||
| vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | ||
| Seal grade | Waterproof cable, Protection grade IP68; DIN43650, IP65 | ||
| Response time | 10ms | ||
| Pressure durable | 2×106 pressure circle @25 °C | ||
| EMI/ EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | ||
| lightning protection | Air conduction resistance 8000V, outer casing, cable conduction resistance 4000V | ||
