| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | KTF |
| Price: | $80.00 - $400.00/sets |
|---|---|
| Packaging Details: | Each unit has individual box and all boxes are packed in standard packages. We can also do the packing based on the requirement of our customers. |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Type: | Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters | DN (mm): | DN10 - DN200 |
|---|---|---|---|
| Pressure: | 1.6 Mpa ,2.5Mpa ,4.0Mpa ,6.3Mpa, Special | Medium: | Heavy Oil,high Viscosity Oil,Fuel Oil, Chemical Liquids And Bitumen |
| Communication: | RS-485 /MODBUS | Accuracy: | 0.5% Or 0.2% |
| Output: | Pulse, 4-20mA Analog Output, RS485, Hart | Power Supply: | 12-24VDC /3.6V Lithium Battery |
| Medium Viscosity: | 300-2000mPa.S | Ex-proof: | ExmdIIBT4 |
| Port: | Shanghai Or Other Ports Required By Customers | ||
| High Light: | Digital Display Turbine Water Flow Meter,High Viscosity Liquid Turbine Flow Meter,Oval Gear Type Turbine Flow Meter |
||
1. General Introduction:

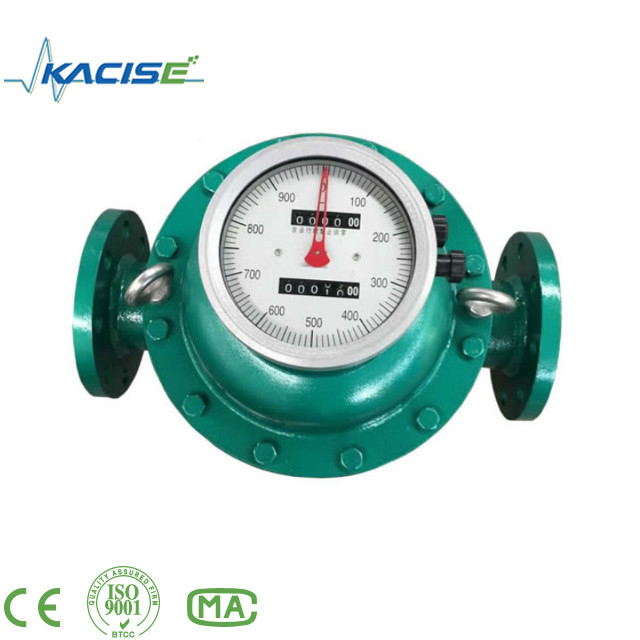

As one of the typical positive displacement flow meter, the oval gear flow meter is used to measure liquid flow rate with viscosity 300-2000mpa.s in pipelines under certain pressure and -10~100℃. Since it adopts advantage of simple structure, high reliability and accuracy, low requirement for pipes and could accept wide range for both viscosity and flow rate range.
The oval gear flow meter oil oval gear flowmeter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability,applying to the industry and commerce of petroleum, chemical, medicine, transportation, food, etc.
2. Technical Features:
3. Technical Specifications:
|
Medium |
Heavy oil, high viscosity oil, fuel oil, chemical liquids and bitumen |
|
Accuracy |
0.5% or 0.2% |
|
Output |
Pulse output ,4~20mA Output and without output |
|
Material |
Cast iron, cast steel or stainless steel material |
|
Display |
LCD Display or Local Mechanical display |
|
Function |
Return to zero function |
|
Accessories |
''Y''Filter or square filter |
|
Temperature |
-20~100℃ |
4. Working Principle:
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
