| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | KTFL Series |
| Price: | $400.00 - $640.00/pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 3000 Piece/Pieces per Month turbine flow meter |
| Warranty: | 1 Year | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|
| Pressure: | 1.6 Mpa ,2.5Mpa ,4.0Mpa ,6.3 Mpa | Medium: | Oil, Organic Liquids, Inorganic Liquid, LPG And Cryogenic Fluids. |
| Accuracy: | +/-0.2% (Customize), +/-0.5% (Standard) | Power Supply: | 220VAC/ 24VDC |
| Output: | 4~20mA/ Pulse | Material: | SS304, SS316L |
| Connection: | Flange, Thread, Inserted, Sanitary | Name: | Alcohol Turbine Flow Meter |
| Protection Level: | IP65 | Port: | Shanghai Or Other |
Description

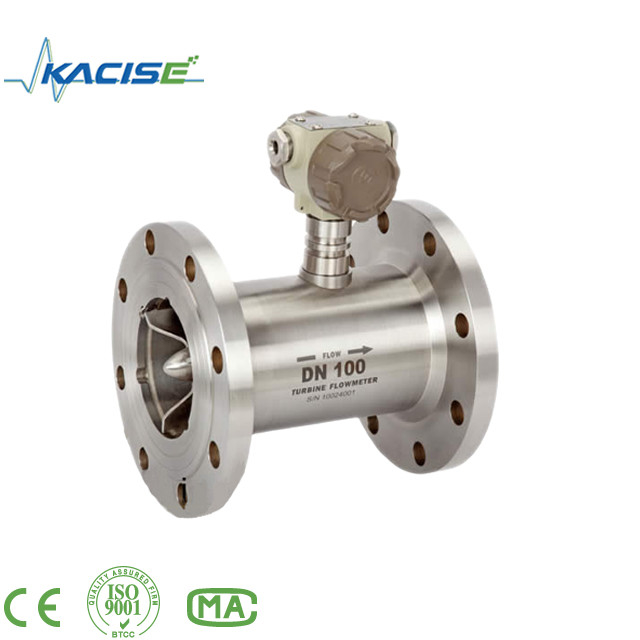

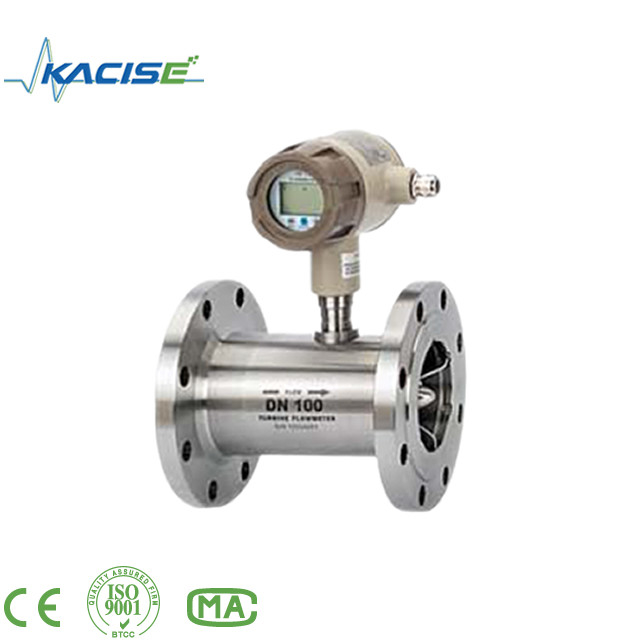

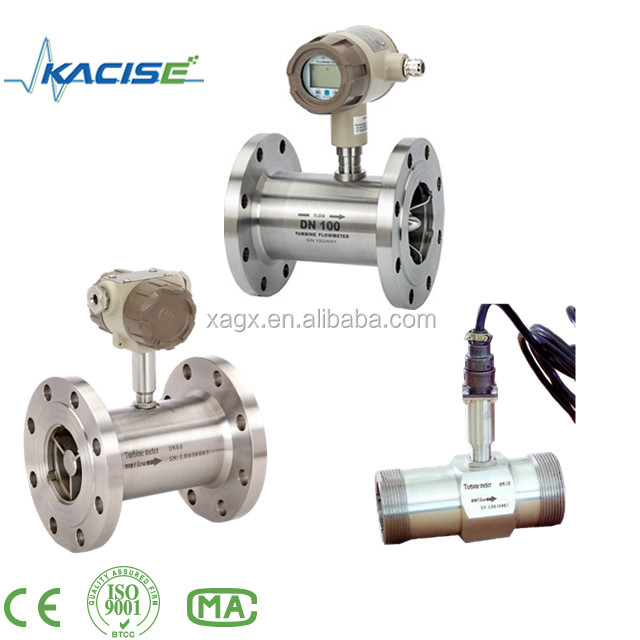

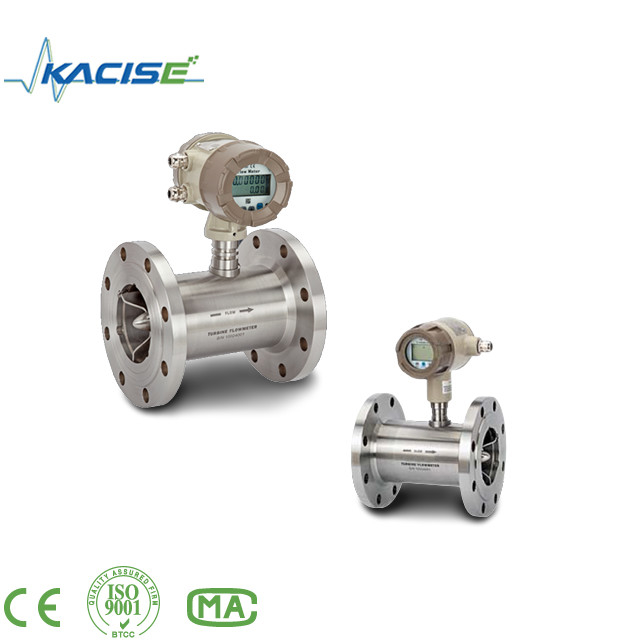

KTFL Series Low power diesel turbine flowmeter is the use of advanced low-power single-chip microprocessor technology developed turbine flow sensor and display totalizer integration of new smart meter, with a compact structure, intuitive readings clear, high reliability, without outside power interference, anti-lightning, obvious low cost advantage, it is widely used to measure the closed pipe and stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3, carbide not corrode, and no fibers, particles and other impurities, kinematic viscosity at operating temperature is less than 5 × 10-6m² / s of liquid, for kinematic viscosity more than 5 × 10-6m² / s of liquid, can be quantitative control, excessive alarm, etc., is an ideal flow metering and energy meter.
Measurement objects: oil, organic liquids, inorganic liquid, liquefied petroleum gas, natural gas, coal gas and cryogenic fluids.
Features
1. High accuracy, generally up to ±1%R, ±0.5%R, high accuracy up to 0.2%R
2.Good repeatability, short-term repeatability up to 0.05%~0.2%, in the trade settlement is the preferred choice of flow meter.
3. Output pulse frequency signal, no zero drift and strong anti-interference ability.
4. High frequency signal(3~4KHz) can be obtained, the signal resolution is strong.
5. Wide range, medium and large diameter up to 1:20, small caliber 1:10.
6. Can be customized, for example Low temperature type, Bi-Directional type, Mixed sand type and Underground type etc.
7. Can be made into an insert type, suitable for large diameter measurement, the pressure loss is small, the price is low, take it out with not cut off the liquid.
Technical Data
| Paremeter | Value | |
|
Diameter | Thread | DN4, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80mm |
| Flange(Clamp) | DN15, 20, 25, 32, 40, 50, 65, 80, 100, 125,150, 200mm | |
| Insertion | DN150, 200, 250, 300, 350, 400, 500~1100mm | |
| Accuracy | ±1, ±0.5, ±0.2%R(customized) | |
| Range ratio | 1:10, 1:15, 1:20 | |
| Sensor material | 304, 316(L) stainless steel etc. | |
|
Working environment | Medium temp. | -20~120℃ |
| Ambient temp | -20~60℃ | |
| Relative humidity | 5%~90% | |
| Atmospheric pressure | 86~106Kpa | |
| Signal output | Pulse,4~20mA | |
| Comm interface | RS485,HART etc. | |
| Power supply | 24VDC/ Battery | |
| Signal line interface | Basic type | Houseman connector or own three-core cable |
| Explosion proof type | Internal thread M20×1.5 | |
| Explosive-proof grade | ExiaIICT4 or ExdIIBT6 | |
| Protection level | IP65 or higher(customized) | |
Dimension
Diagram 1(DN4~DN10): Threaded connection type turbine flow sensor (including straight pipe section).
Diagram 2(DN15~DN40): Thread connected flow sensor size drawing.
Diagram 3(DN15~DN20): Flange connected turbine flow sensor drawing.
Model selection
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
We supply high quality Turbine Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
