| Price: | $2,400.00 - $6,000.00/pieces |
|---|---|
| Packaging Details: | Wooden crates or customer requirements |
| Supply Ability: | 2000 Piece/Pieces per Month |
| Accuracy Grade: | Grade 0.2 Grade 0.5 Grade | Ambient Temp: | -25℃~+55℃ |
|---|---|---|---|
| Relative Humidity: | ≤95% | Maintenance: | Less And Easy |
| Port: | Shanghai Or Other | ||
| High Light: | 100% Healthy Material Milk Flowmeter,Coriolis Heavy Mass Flow Meter |
||

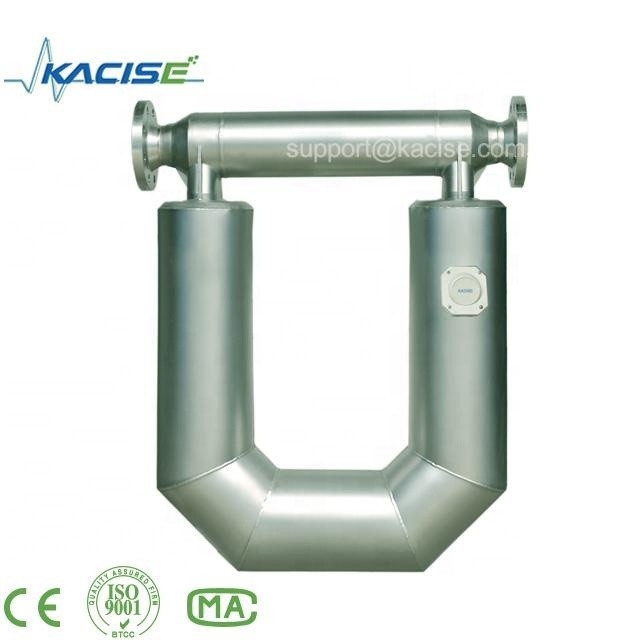

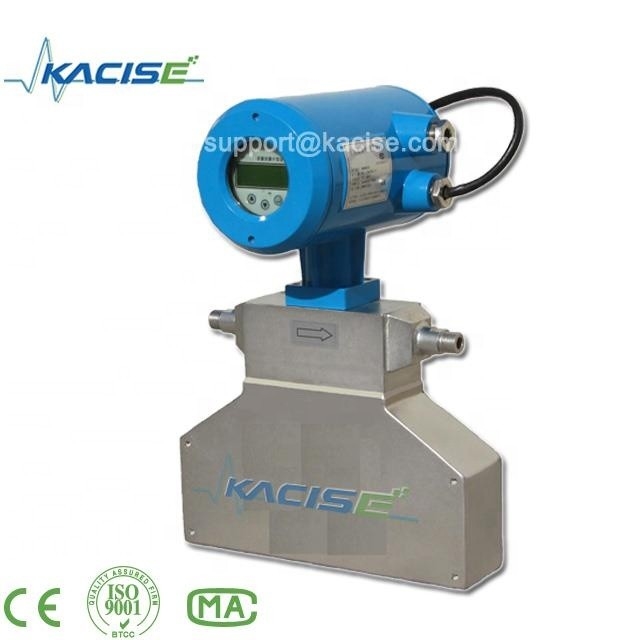

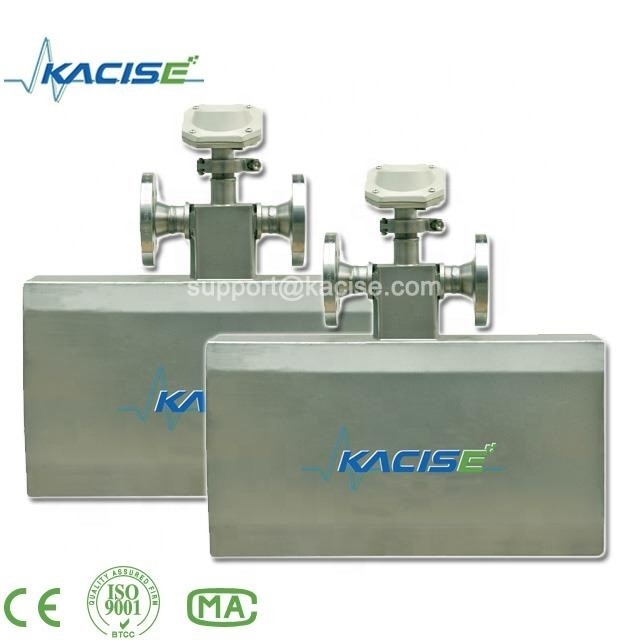

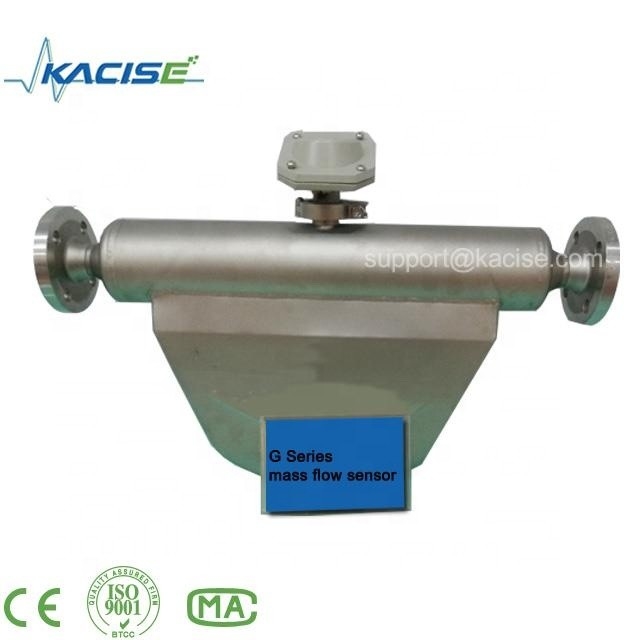

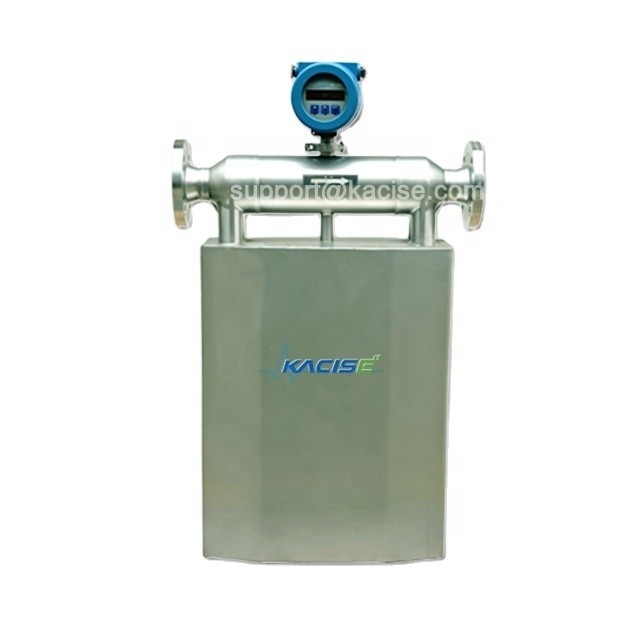

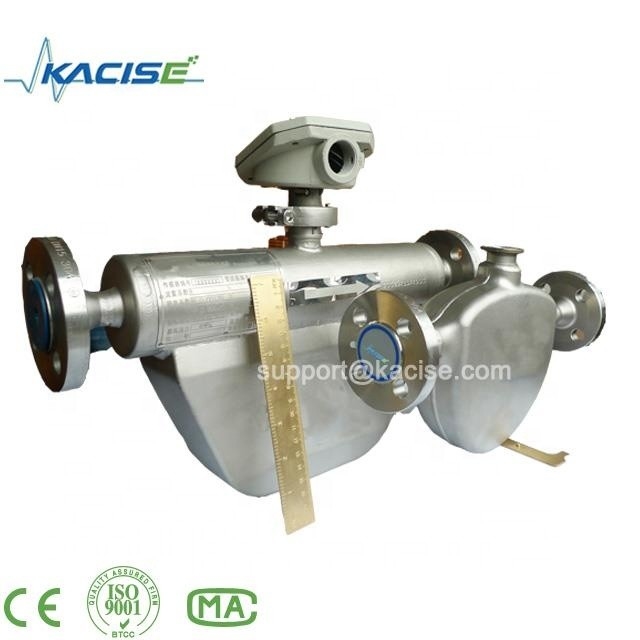

Milk mass flowmeter consist of mass flow sensor and mass flow transmitter. It does not measure the volume per unit time (e.g., cubic meters per second) passing through the device, but measures the mass per unit time (e.g., kilograms per second) flowing through the device. The result of volumetric meter varies with temperature, pressure, composition, etc., but mass flow meter does not have such problem.
Milk mass flow meter is designed according to Coriolis Effect. The inlet arm and the outlet arm vibrate with the same frequency as the overall vibration, but when there is mass flow the two vibrations are out of sync: the inlet arm is behind, the outlet arm is ahead. The two vibrations are shifted in phase with respect to each other, and the degree of phase-shift is a measure for the amount of mass that is flowing through the tubes.
Feartures:
1.Reduced fill time with higher flow rate capacity
2.Compact design with no moving parts, no special mounting and no flow conditioning required
3.Fast delivery and global support
Dimensions of large - scale instrument
|
Model |
Weld Neck Flanges-ANSI B16.5 |
A |
B |
C |
E |
F |
W |
G |
K |
d |
D |
|
|
DN |
LB |
|||||||||||
|
KMF-1-6c |
100 |
150 |
670 |
510 |
740 |
858 |
1092 |
260 |
19.1 |
190.5 |
157.2 |
228.6 |
|
KMF-1-6CD |
125 |
150 |
670 |
510 |
740 |
858 |
1092 |
260 |
22.4 |
215.9 |
185.7 |
254 |
|
KMF-1-6D |
150 |
150 |
860 |
670 |
950 |
1130 |
1370 |
280 |
22.4 |
241.3 |
215.9 |
279.4 |
APPLIED RANGE
FAQ
1.Q: May I put my own logo on the product?
A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.
2.Q: How about the quality control?
A: All products will be tested for 3 times before packed.
3.Q: May I release trial order, 1 pc for example?
A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent
within 1 week, after payment is received.
4.Q: Could you design according to my requirements?
A: Of course, our team will design for you, to make our mass flowmeter work perfectly at your end.
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
