| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | KFM-Series |
| Price: | $200.00 - $6,000.00/pieces |
|---|---|
| Packaging Details: | Wooden cases or customer requirements |
| Supply Ability: | 3000 Piece/Pieces per Week liquid coriolis flow meter |
| Measuring Theory: | Coriolis Force | Package: | Wooden Box Package |
|---|---|---|---|
| Keywords: | Vw Mass Air Flow Meter | Material: | 316L |
| Accuracy: | ±0.15%,±0.2% | Signal Output: | 4-20mA,0-10khz |
| Digital Communication: | RS485/MODBUS HART/FF (opt) | Temp. Range: | -40~350℃ |
| Pressure: | ≤6.3mpa | Port: | Shanghai Or Other |
| High Light: | Explosion Proof Coriolis Mass Flow Meter,Liquid Coriolis Mass Flow Meter,SS316L Liquid Mass Flow Meter |
||

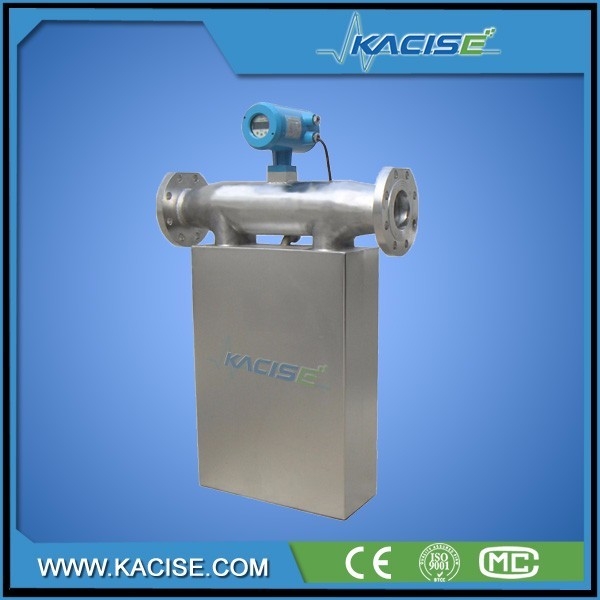

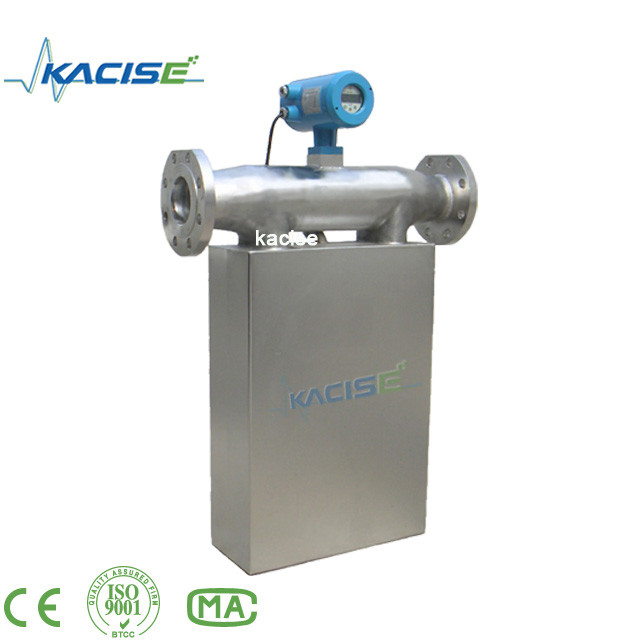

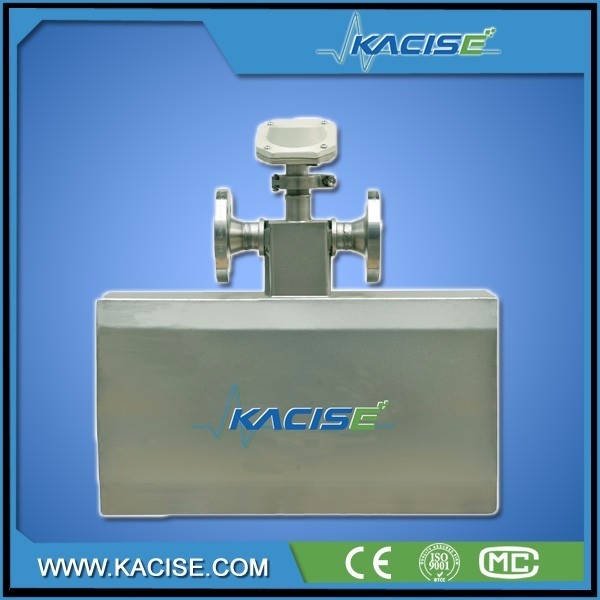

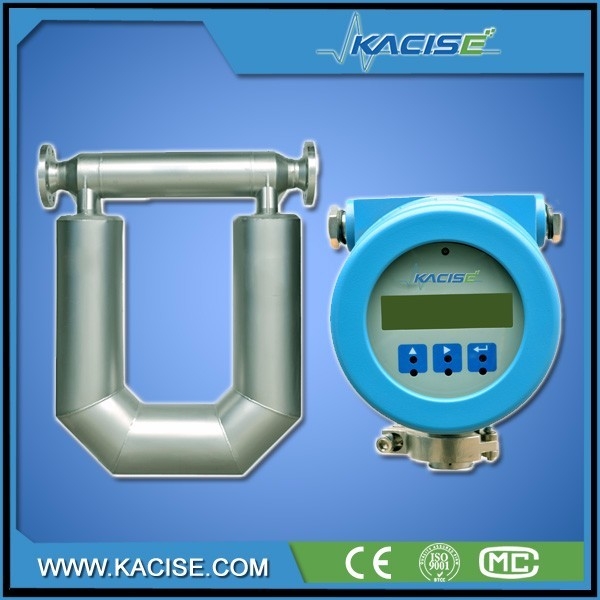

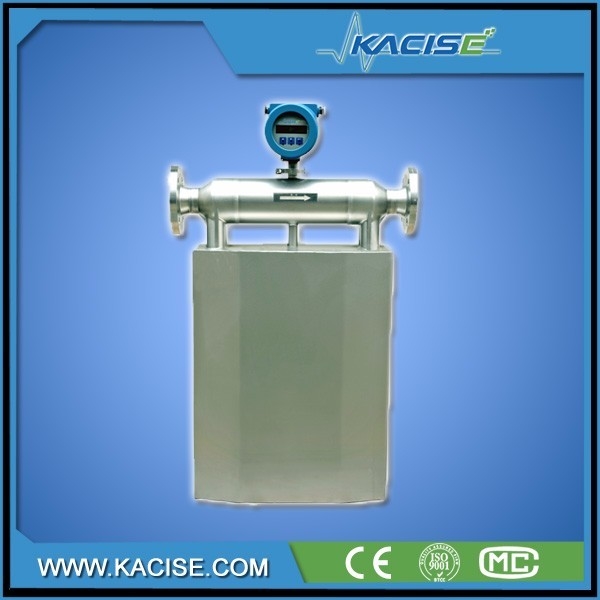

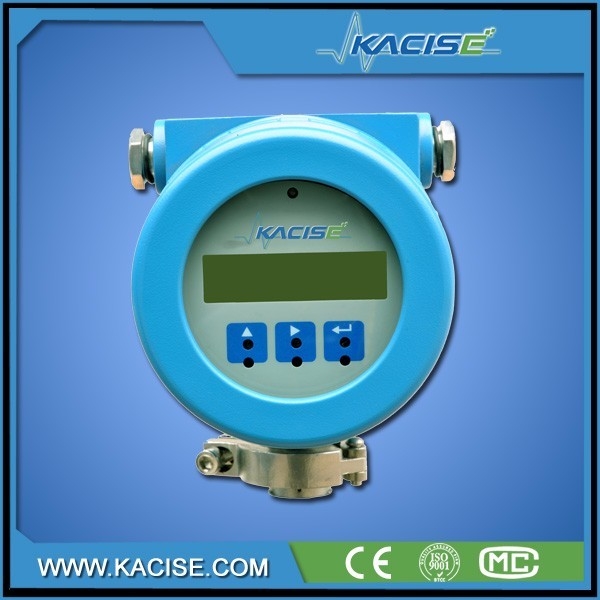

KMF100 Series Coriolis Mass Flow Sensor and GXPS 200/GXPS 100 transmitter are paired to constitute KMF100 Series flow meter with accuracy in 0.2% or 0.15%.
liquid coriolis mass flowmeter Feature
1. Double-U or double-C flow tube ensures high metering accuracy and customer’s requirement.
2. A comprehensive series of data supplied, including mass flow, volume flow, density, temperature and reference parameters, makes reliable results without tedious conversion, the flowmeter is a direct substitute of voltmeter.
3.Integrated installation structure reduces installation cost.
4. Standard size of sensor output interface makes the compatible transmitter replaceable, which is easier for maintenance.
5.High stability spares people from frequent calibration.
6.Dispensing with rectification and special installation of filter or straight tube parts.
7. Having no moving parts so there is no need for frequent maintenance.
8.No choke-flow parts and the larger flow normal diameter enable the reduction of pressure loss, energy consumption and improvidence.
9. A vast range of calibers can suit all the metering requirements in the process of.
Dimensions of large - scale instrument
|
Model |
Weld Neck Flanges-ANSI B16.5 |
A |
B |
C |
E |
F |
W |
G |
K |
d |
D |
|
|
|
DN |
LB |
|
|
|
|
|
|
|
|
|
|
|
KMF-1-6c |
100 |
150 |
670 |
510 |
740 |
858 |
1092 |
260 |
19.1 |
190.5 |
157.2 |
228.6 |
FAQ
A:We Will contact you as soon as possible but within 12 hours. Whatsapp:
Q:Could I get samples?
A:Yes, samples are available.
Q: What certificates do we have ?
A:We have the certification of ISO,CE and SGS etc.,we could send them to you by email.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have inventory for standard models. Pls tell me your detailed requirements, we will send to you as early as we can.
Q:Could I visit your factory?
A:Welcome! our factory is located in shanxi province, China.
Q: How soon can we arrange your production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately.
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
