| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | kws-300 |
| Price: | $100.00 - $299.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 2000 Piece/Pieces per Week pressure transducer transmitter |
| Usage: | Fiber Optic Chlorophyll Sensor | Theory: | Principle Of Fluorescence |
|---|---|---|---|
| Output: | Support RS-485, MODBUS Protocol, Support RS-485, MODBUS Protocol, Support RS-485, MODBUS Protocol | Accuracy: | <1% |
| Measuring Range: | 1uS/cm~200 MS/cm | Power Supply: | DC 5~12V, Current <50mA |
| Port: | Shanghai Or Other |

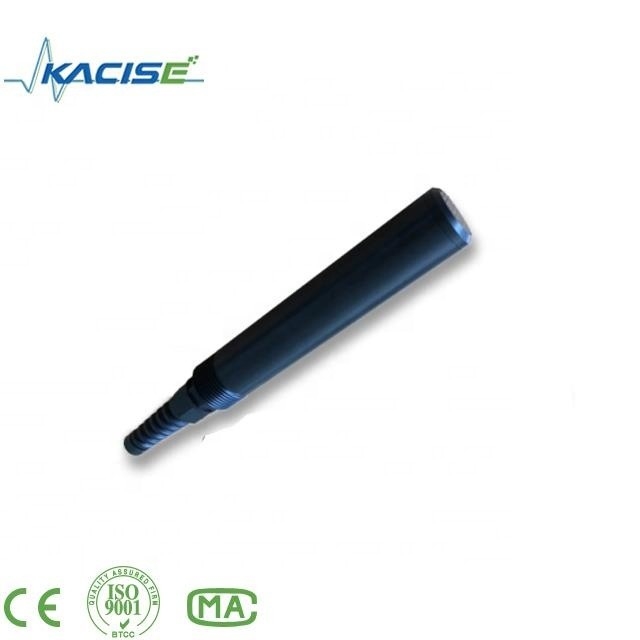

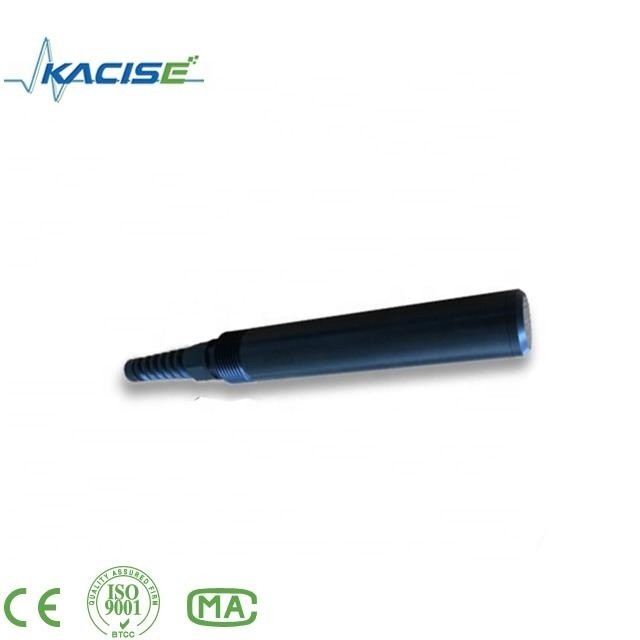

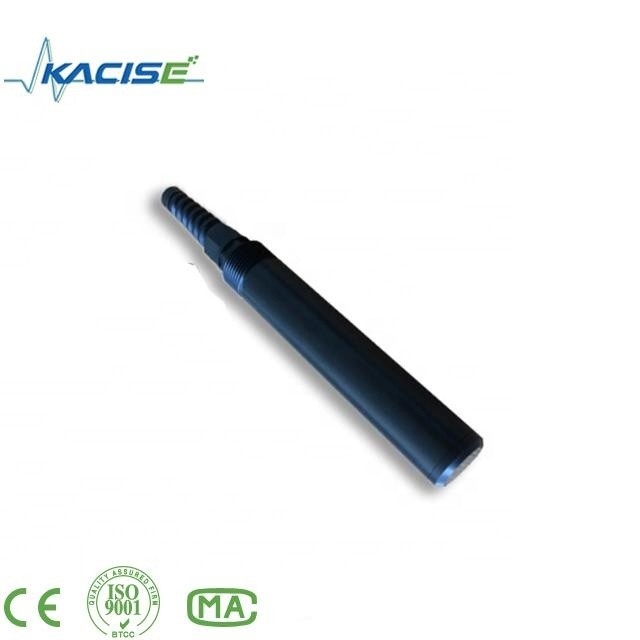

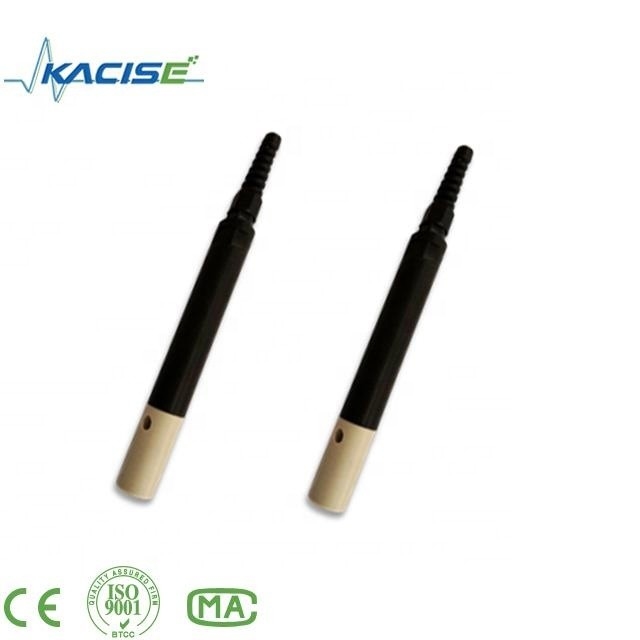

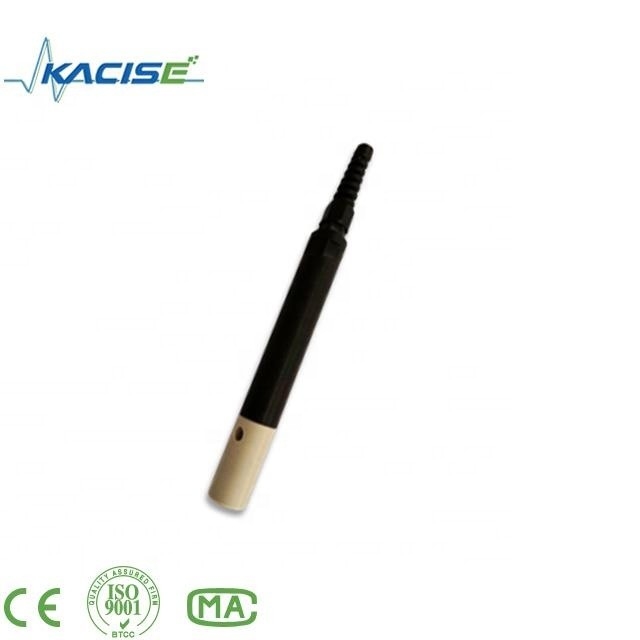

Kws-300 Four-electrode Conductivity Sensor
1. Feature
1uS / cm~200 mS / cm, accuracy <1%
RS485 output, support Modbus, open communication protocol
0~50°C, protection class IP68, maximum pressure 6bar
Will not be polarized and can be used continuously online
Wide range of applications and a wider range of applications
Very resistant to pollution and strong anti-interference
Very stable measurement and higher precision
Robust construction and long service life
2. Application
Kacise Sensor launched a new generation of four-electrode conductivity sensor, using international leading four-electrode technology, RS485 digital interface, support MODBUS protocol, environmentally friendly design. Compared to traditional two-electrode conductivity sensors, it offers higher accuracy, wider measurement range and excellent stability. The four-electrode conductivity sensor also has unique advantages in terms of number: one is to completely solve the polarization problem in the high conductivity test; the other is to completely solve the polarization problem in the high conductivity test; the other is to solve the problem of inaccurate reading caused by electrode contamination.
3.Technical Specifications
| Measuring range | 1uS/cm~200 mS/cm
|
| Response time | <10 sec |
| Protection level | IP68 |
| accuracy | <1% |
| Electrode material | nickel |
| product material | peak |
| temperature range | 0 ~ 50℃ |
| Output | Support RS-485, MODBUS protocol |
| Power supply | DC 5~12V, current <50mA |
| Temperature sensor | NTC |
| Shell diameter | 22mm |
| Shell length | 146.5 mm |
| Probe cable length | 10 meters, customers can choose 5 meters, 15 meters and 30 meters cable |
| Optical window | optical fiber |
4.Application Picture
5.Production
6.Packaging
