| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Price: | $100.00 - $700.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 100 Piece/Pieces per Month |
| Principle: | Ultraviolet Fluorescence Method | Measuring Range: | -999~999mV |
|---|---|---|---|
| Response Time: | 10 Sec | Accurate: | ±20mV |
| Protection Level: | IP68 | Deepest Depth: | Underwater 60 Meters,underwater 10 Meters |
| Temperature Range: | 0 ~ 50℃ | Output: | Support RS-485, MODBUS Protocol |
| Power Supply: | DC 5~12V, Current <50mA | Product Material: | POM |
| Port: | ShenZhen | ||
| High Light: | ORP Water Quality Sensor,Online Digital ORP Sensor,IP68 ORP Sensor |
||

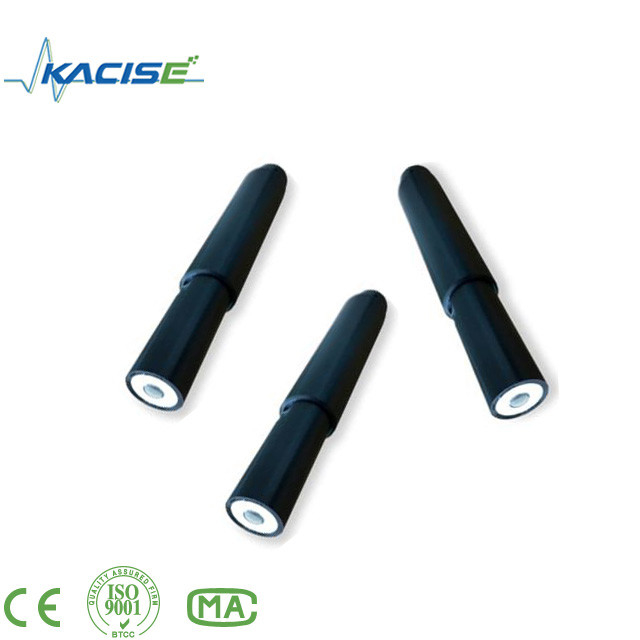

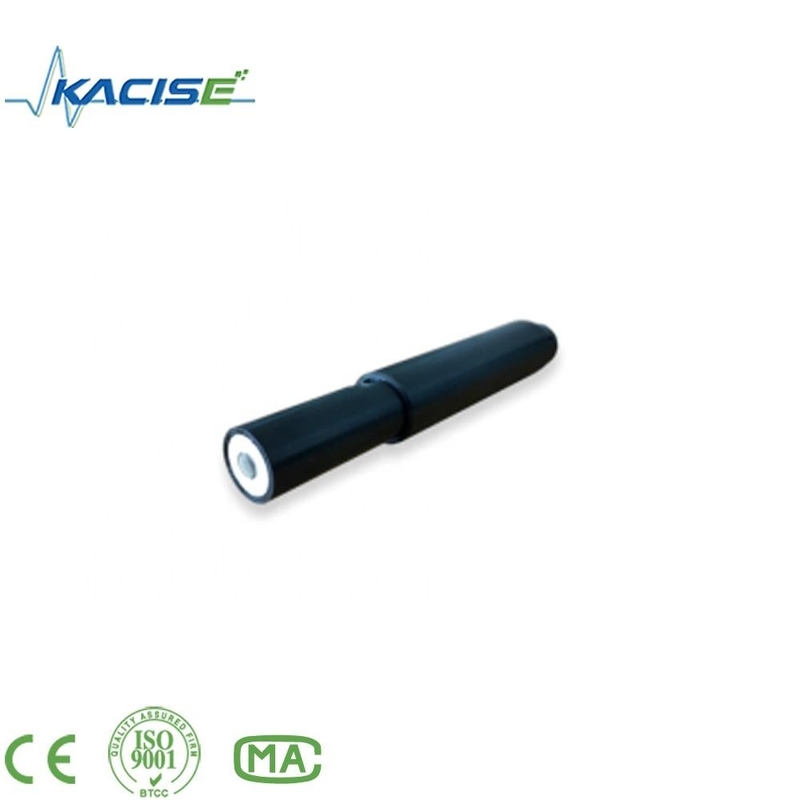

Online digital ORP sensor
1. Applications
The Kacise ORP sensor features an industrial in-line electrode with a flat front end for easy cleaning. Built-in temperature sensor for online long-term monitoring environment. The sensor adopts RS485 output and supports Modbus, which can realize networking and system integration without controller.
2. Feature
3.Technical Specifications
|
product |
parameter |
|
|
principle |
Ultraviolet fluorescence method |
|
|
Measuring range |
-999~999mV |
|
|
Response time |
10 sec |
|
|
accurate |
±20mV |
|
|
Protection level |
IP68 |
|
|
Deepest depth |
Underwater 60 meters |
underwater 10 meters |
|
temperature range |
0 ~ 50℃ |
|
|
Output |
Support RS-485, MODBUS protocol |
|
|
Power supply |
DC 5~12V, current <50mA |
|
|
size |
Φ26*177.5 mm |
|
|
Probe cable length |
10 m, customizable 5 m, 15 m and 30 m cable |
|
|
product material |
POM |
|
