K0/K1＜20mg Quartz Accelerometer Sensor Used In Petroleum Field / Deviation Value

K0/K1＜20mg Quartz Accelerometer Sensor Used In Petroleum Field / Deviation Value

  • K0/K1＜20mg Quartz Accelerometer Sensor Used In Petroleum Field / Deviation Value
  • K0/K1＜20mg Quartz Accelerometer Sensor Used In Petroleum Field / Deviation Value
  • K0/K1＜20mg Quartz Accelerometer Sensor Used In Petroleum Field / Deviation Value
  • K0/K1＜20mg Quartz Accelerometer Sensor Used In Petroleum Field / Deviation Value
K0/K1＜20mg Quartz Accelerometer Sensor Used In Petroleum Field / Deviation Value
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KSJB6
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Product Name: Accelerometer Sensor Scope: ±30g
Bandwidth: 800~2500 Hz Dimension: Ф18.2X16mm
Resolution Ratio: ＜30µg Noise: ≤8mv
Operating Temperature: -40～180℃ Deviation Value K0/K1: ＜20mg
High Light:

Deviation Value Accelerometer Sensor

,

Quartz Accelerometer Sensor

,

Petroleum Field Accelerometer Module

Product Description:

Revolutionizing the landscape of precision instrumentation, the KSJB6 series quartz flexible accelerometer is a testament to innovation in engineering. Crafted for miniaturization, high-temperature resilience, and seismic durability, this device has become synonymous with reliability. Its exceptional repeatability, robust start-up performance, and high reliability make it indispensable for both static and dynamic testing, serving as the industry standard for vibration sensing. The product's unique design incorporates advanced packaging technology and a specialized circuit, ensuring an output current directly proportional to input acceleration. Users benefit from customization options, including the integration of a built-in temperature sensor for offset value and scale factor compensation, minimizing the impact of ambient temperature. Launched in 2012, this product has made a significant impact, with thousands of deliveries and a solid reputation, particularly in the precision testing of oil drilling equipment.

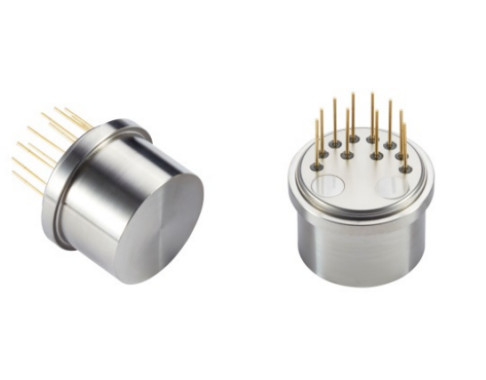

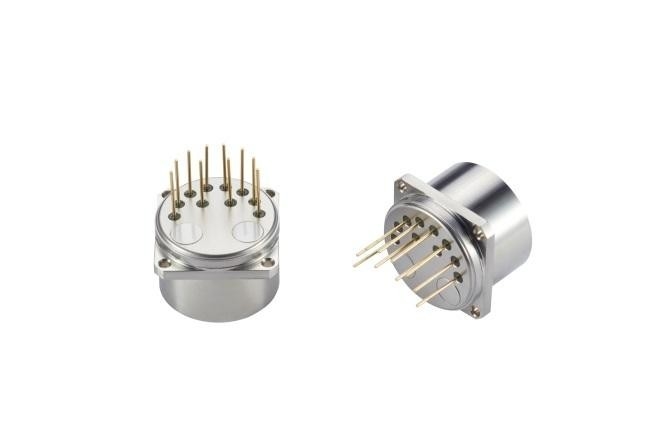

K0/K1＜20mg Quartz Accelerometer Sensor Used In Petroleum Field / Deviation Value 0K0/K1＜20mg Quartz Accelerometer Sensor Used In Petroleum Field / Deviation Value 1

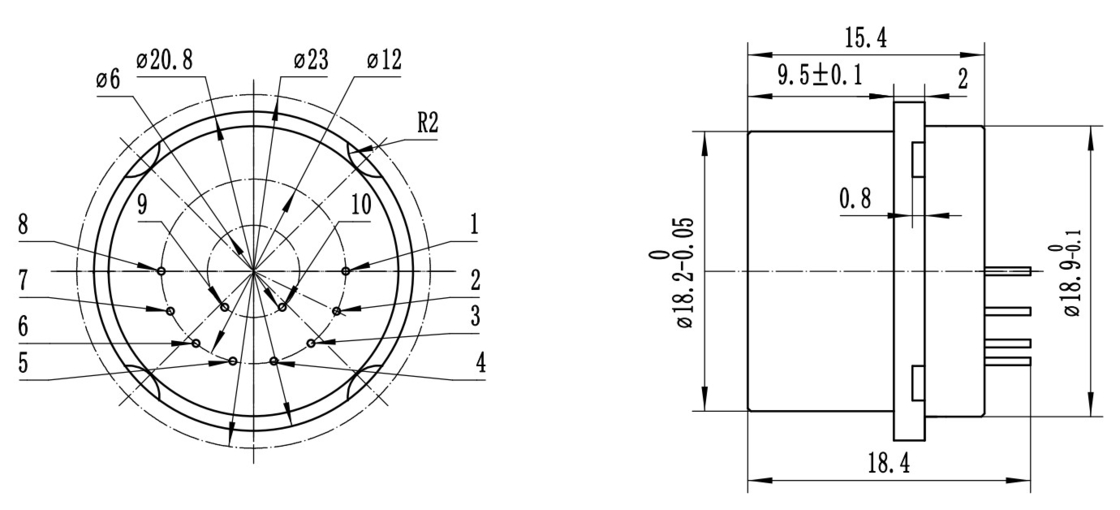

1.JB6-01A and JB6-02A dimensions

K0/K1＜20mg Quartz Accelerometer Sensor Used In Petroleum Field / Deviation Value 2

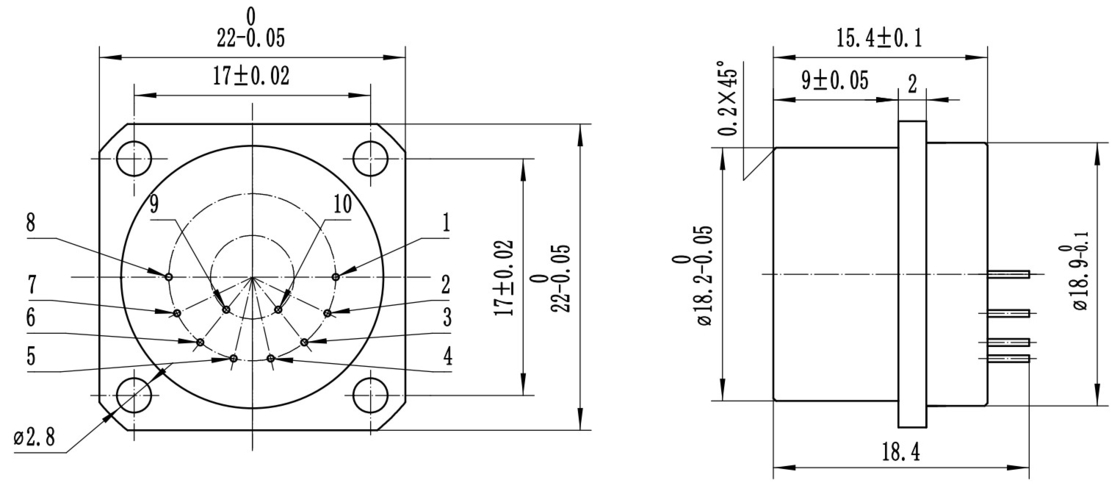

2.JB6-01B and JB6-02B dimensions

K0/K1＜20mg Quartz Accelerometer Sensor Used In Petroleum Field / Deviation Value 3

Technical Parameters:

Number Parameters KSJB6-01 KSJB6-02
1 Scope ±30g ±30g
2 Threshold value 30μg 30μg
3 deviation value K0/K1 ≤(±20 mg) ≤(±20 mg)
4 scale factor K1 1.9～2.1mA/g 1.9～2.1mA/g
5 Second order nonlinear coefficient K2 ≤±20μg /g2 ≤±50μg /g2
6 0g 4 hours short-term stability ≤30 μg ≤40 μg
7 1g 4 hours short-term stability ≤30 ppm ≤40 ppm
8 deviation value synthesis repeatability σK0 (1σ,one month) ≤150 μg ≤220 μg
9 Scale factor integrated repeatability σK1/K1 (1σ,one month) ≤150ppm ≤220 ppm
10 Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) ≤±40 μg /g2 ≤±50 μg /g2
11 deviation value Temperature coefficient(The mean value of the whole temperature zone) ≤±80 μg /℃ ≤±150 μg /℃
12 Scale factor Temperature coefficient(The mean value of the whole temperature zone) ≤±100 ppm /℃ ≤±200 ppm /℃
13 Noise(The sampling resistance is 840Ω) ≤8mv ≤8.4mv
14 Natural frequency 350~800 Hz 350~800 Hz
15 bandwidth 800~2500 Hz 800~2500 Hz
16 Random vibration 25g(20-2000Hz) 25g(20-2000Hz)
17 strike 1000g,0.5ms,1/2sin 1000g,0.5ms,1/2sin
18 Operating temperature range -40℃+150℃ -40+180℃
19 Storage temperature range -60-+180℃ -60-+200℃
20 Power supply ±12~±15V ±12~±15V
21 Current consumption ±20mA ±20mA
22 dimension Ф18.2X16mm Ф18.2X16mm
23 weight 25g 25g

Note:



1. Scale factor is adjusted according to user requirements;

2.Temperature sensor: divided into AD590, pt1000,

3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;

4. Install according to user requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements.
