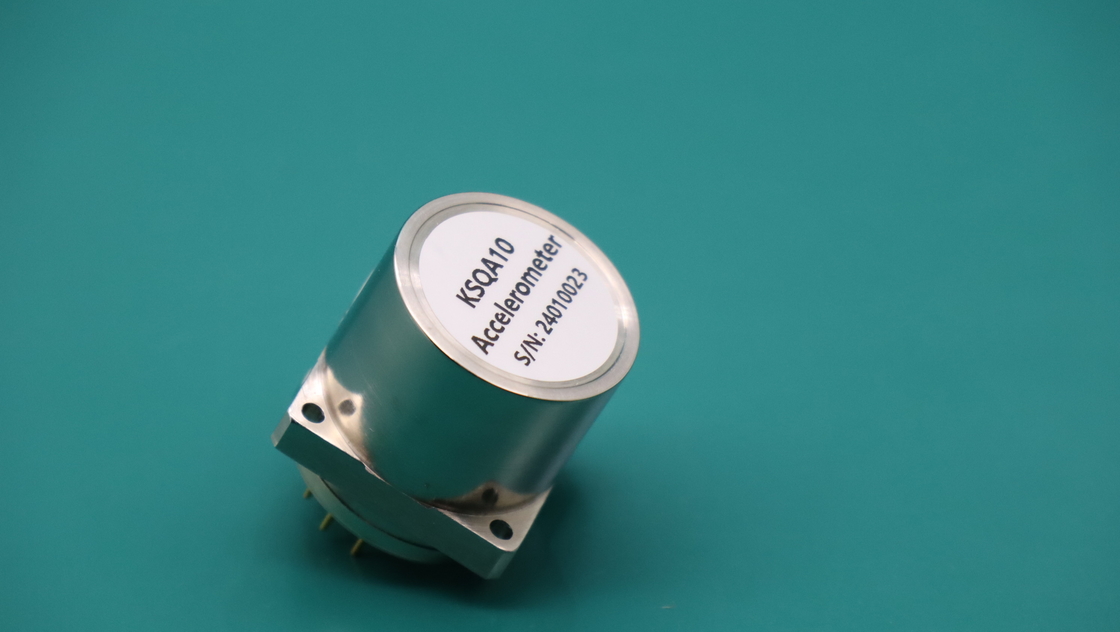

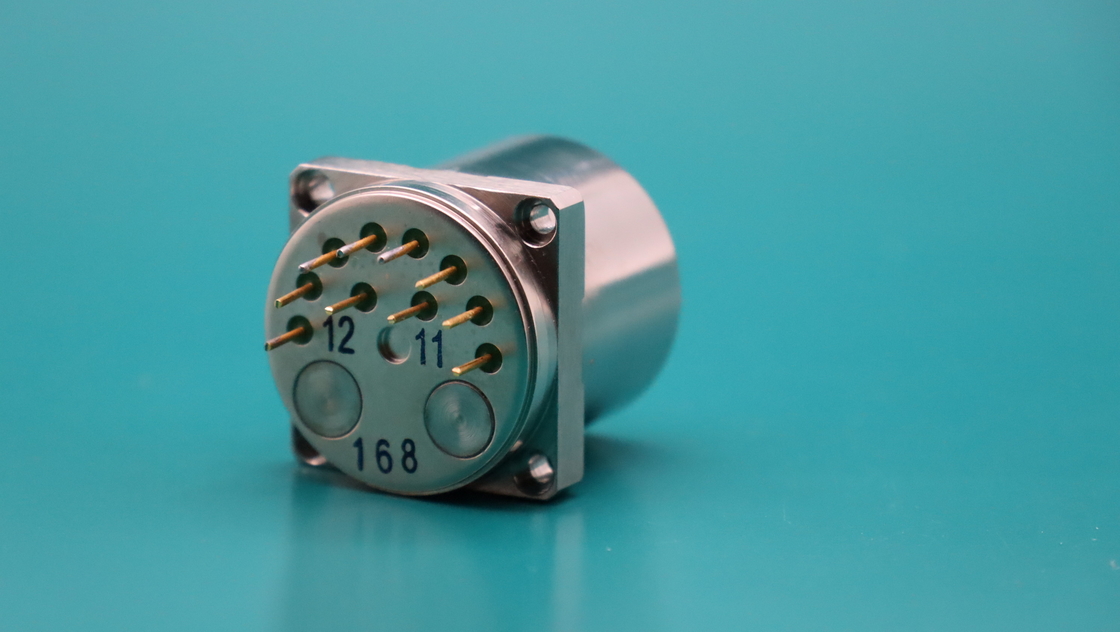

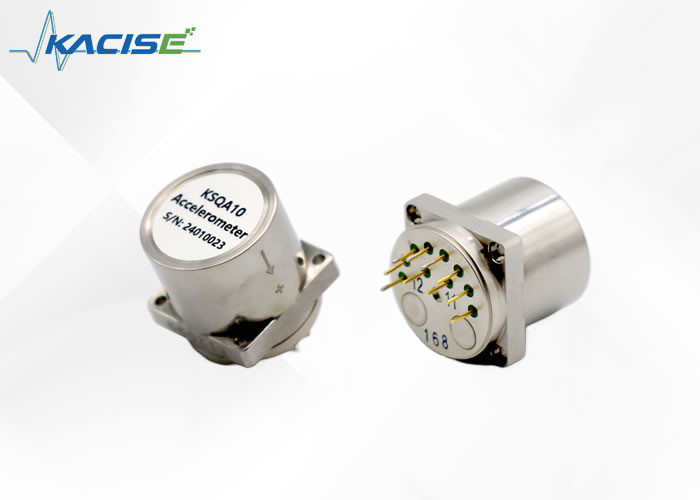

Product Description:
The Quartz Flexible Accelerometer is a high-precision instrument that is made up of a quartz glass flexible support and an advanced servo circuit based on the principle of inertia. It is designed to accurately measure acceleration and the output of the accelerometer is proportional to the input acceleration.
This accelerometer has a current output form of high output impedance, which allows users to choose the sampling resistance according to their specific requirements without affecting the stability of the system.
Currently, the Quartz Flexible Accelerometer comes in a series of products that vary in type from the high-precision μg KSQA07 accelerometer designed for satellite microgravity measurement to the low-cost KSQA13 accelerometer that is capable of operating in harsh environments. There are dozens of options available and the accelerometer is widely used in various fields including aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and more. The accelerometer provides signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter |
KSQA10A |
KSQA10B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤30μg/°C |
≤50μg/°C |
| One-month Composite Repeatability (1σ) |
≤30μg |
≤50μg |
| Scale Factor |
1.2 ~ 1.6mA/g |
1.2 ~ 1.6mA/g |
| Temperature Sensitivity |
≤30ppm/°C |
≤80ppm/°C |
| One-month Composite Repeatability (1σ) |
≤30ppm |
≤50ppm |
| Linearity |
≤15μg/g2 |
≤40μg/g2 |
| Threshold |
<5μg |
<5μg |
| Resolution |
<5μg |
<5μg |
| Size |
Ø25.4×32mm |
Ø25.4×32mm |
| Weight |
≤70g |
≤70g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Application in the inertial navigation system of the new generation weapon
● Two models are available
