Product Description:

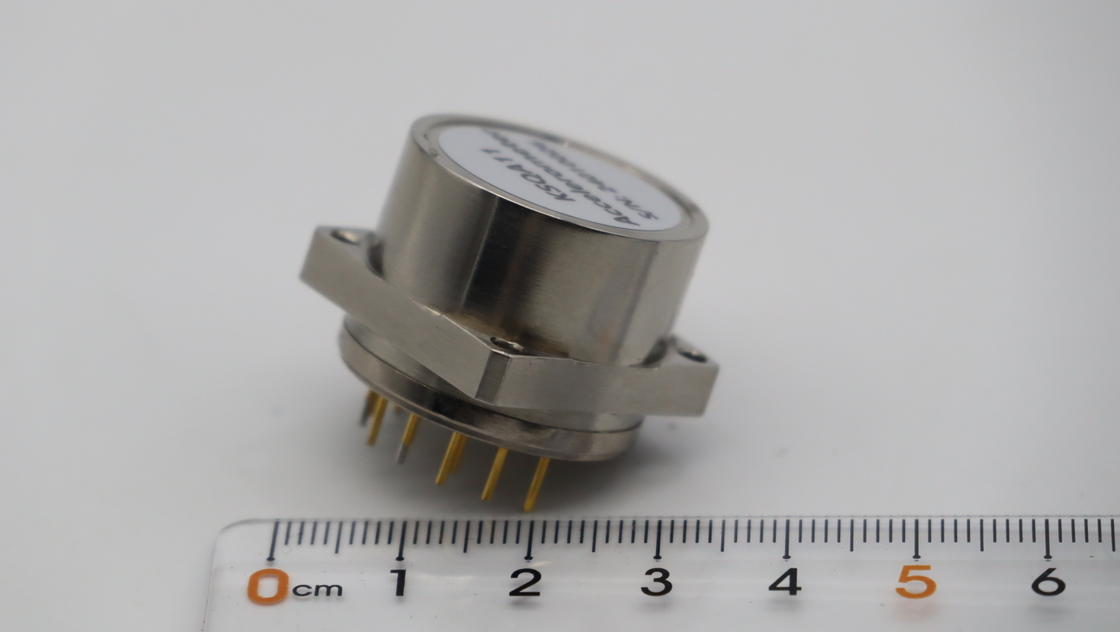

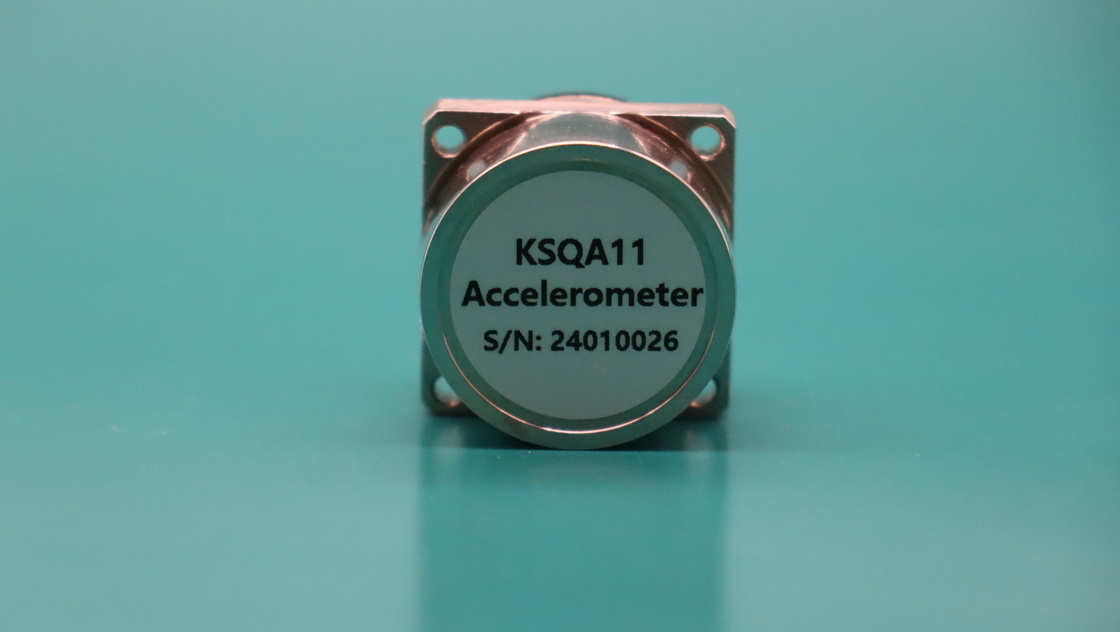

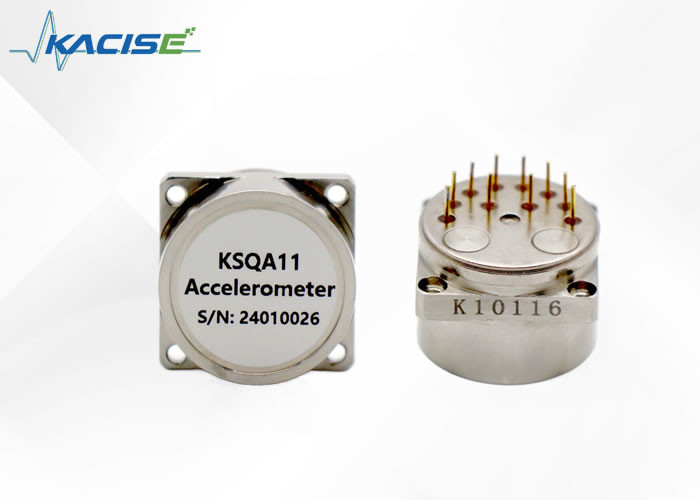

The Quartz flexible accelerometer is a precision instrument that is made up of quartz glass flexible support and an advanced servo circuit based on the principal of inertia. Whenever the carrier experiences acceleration, the output of the accelerometer accurately reflects the input acceleration.
Our accelerometer has a current output form of high output impedance. Users have the freedom to choose the sampling resistance based on their needs without affecting the stability of the system.
Currently, our quartz flexible accelerometer has become a series of products, with many different types available. These range from the high-precision μg KSQA07 accelerometer used in satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. There are as many as dozens of these different types, and they are widely used in aerospace, aviation, navigation, ships, vehicles, petroleum, geotechnical engineering, and other fields.
Quartz flexible accelerometers are highly useful instruments that provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
Technical Parameters:
| Parameter |
KSQA11 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±30g |
| Bias |
≤8mg |
| Temperature Sensitivity |
≤40μg/°C |
| One-month Composite Repeatability (1σ) |
≤50μg |
| Scale Factor |
1.0 ~ 1.6mA/g |
| Temperature Sensitivity |
≤80ppm/°C |
| One-month Composite Repeatability (1σ) |
≤80ppm |
| Linearity |
≤40μg/g2 |
| Size |
Ø25×25mm |
| Weight |
≤50g |
| Environment |
| Operating Temperature |
-45°C~+100°C |
| Storage temperature |
-55°C～+110°C |
| Shock |
500g |
| Vibration Peak Sine |
25g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
