Product Description:

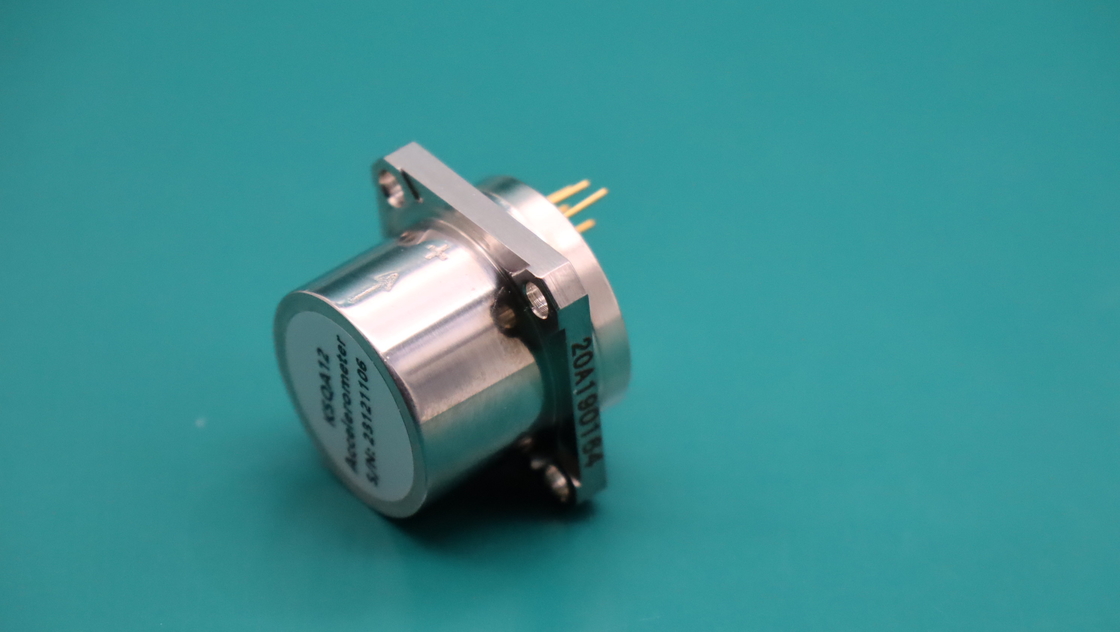

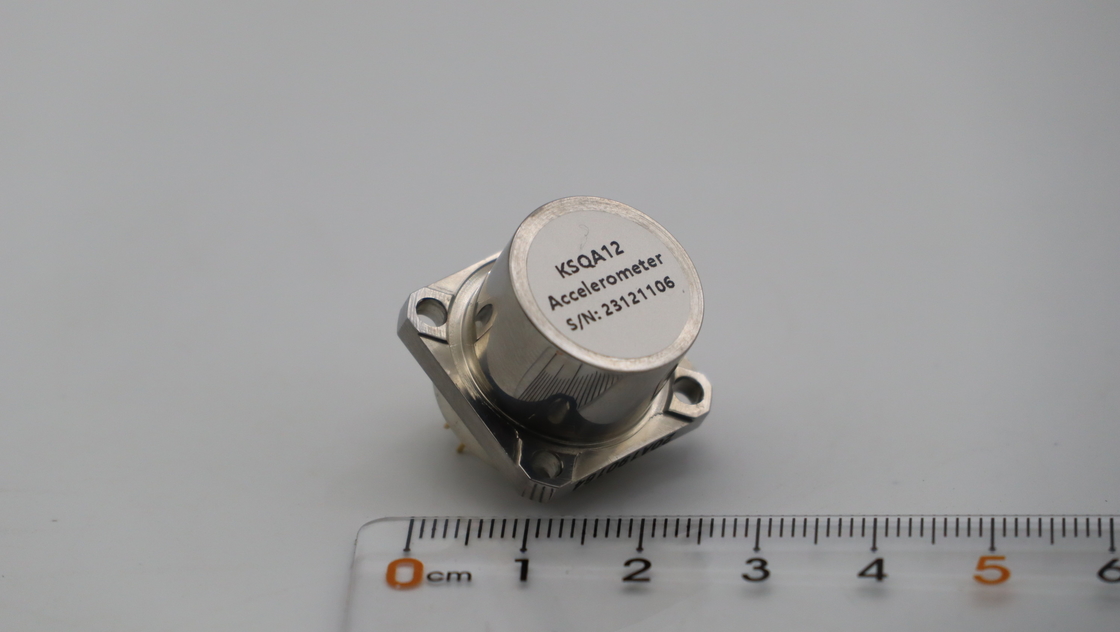

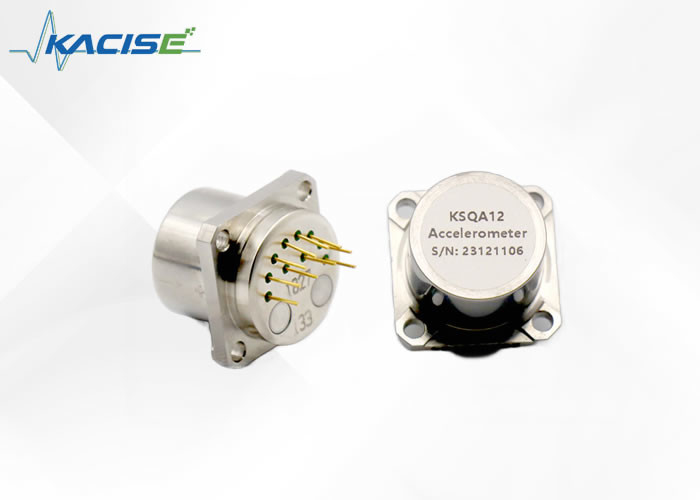

Quartz Flexible Accelerometer: A Precision Instrument
The Quartz flexible accelerometer is a precision instrument that is made up of a quartz glass flexible support and an advanced servo circuit based on the principle of inertia. When the carrier experiences acceleration, the output of the accelerometer is precisely proportional to the input acceleration.
Our accelerometer has a high output impedance in terms of current output form, and users have the freedom to choose the sampling resistance based on their requirements without affecting the system's stability.
Applications and Product Range
Our quartz flexible accelerometer has formed a series of products. Products range from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer.
The accelerometer has many different types, as many as dozens, and is widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields.
These accelerometers provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Triangle precision mounting flanges
● Application in unmanned aircraft and petroleum pipeline
● Two models are available
Technical Parameters:
| Parameter |
KSQA12A |
KSQA12B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±80g |
±30g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤40μg/°C |
≤50μg/°C |
| One-month Composite Repeatability (1σ) |
≤40μg |
≤80μg |
| Scale Factor |
0.6 ~ 1.3mA/g |
0.9 ~ 1.3mA/g |
| Temperature Sensitivity |
≤60ppm/°C |
≤60ppm/°C |
| One-month Composite Repeatability (1σ) |
≤40ppm |
≤80ppm |
| Linearity |
≤50μg/g2 |
≤50μg/g2 |
| Threshold |
<5μg |
<5μg |
| Resolution |
<5μg |
<5μg |
| Size |
Ø18.2×23.6mm |
Ø18.2×23.6mm |
| Weight |
≤35g |
≤35g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
