Product Description:

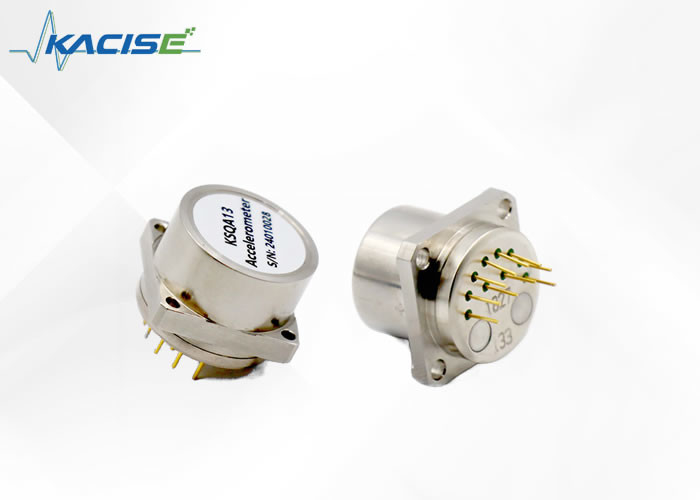

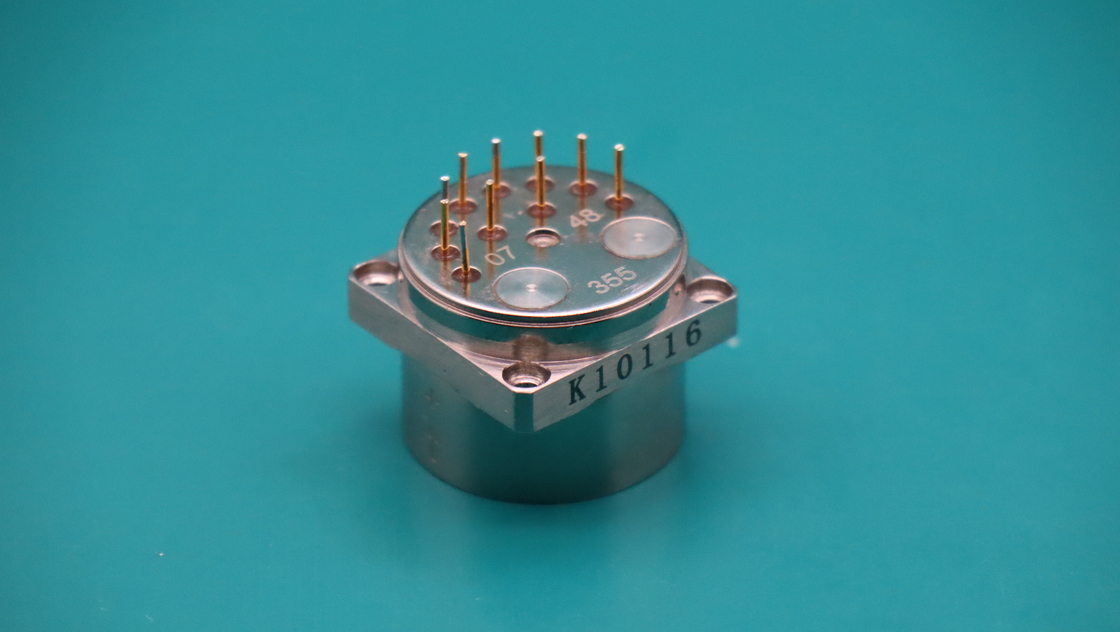

Quartz Flexible Accelerometer
The quartz flexible accelerometer is a precise instrument consisting of a quartz glass flexible support and an advanced servo circuit based on the principle of inertia. Its output is precisely proportional to the input acceleration when the carrier experiences acceleration.
The accelerometer has a current output form of high output impedance, and users can choose the sampling resistance according to their requirement without affecting the stability of the system.
Product Series
At present, our quartz flexible accelerometer has formed a series of products, consisting of dozens of types. These range from the high-precision μg KSQA07 accelerometer designed for satellite microgravity measurement, to the low-cost and anti-harsh environment KSQA13 accelerometer.
Wide Applications
The quartz flexible accelerometer is widely used in various fields, such as aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering. It provides signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
● High temperature resistance
Technical Parameters:
| Parameter | KSQA13 |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±10g |
| Bias | ≤10mg |
| Temperature Sensitivity | ≤100μg/°C |
| Three-hour Stability(1σ) | ≤100μg |
| Scale Factor | 2.3 ~ 3.5mA/g |
| Temperature Sensitivity | ≤100ppm/°C |
| Three-hour Stability (1σ) | ≤100ppm |
| Size | Ø25×25mm |
| Weight | ≤60g |
| Environment |
| Operating Temperature | -45°C~+100°C |
| Storage temperature | -55°C～+120°C |
| Shock | 500g |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
