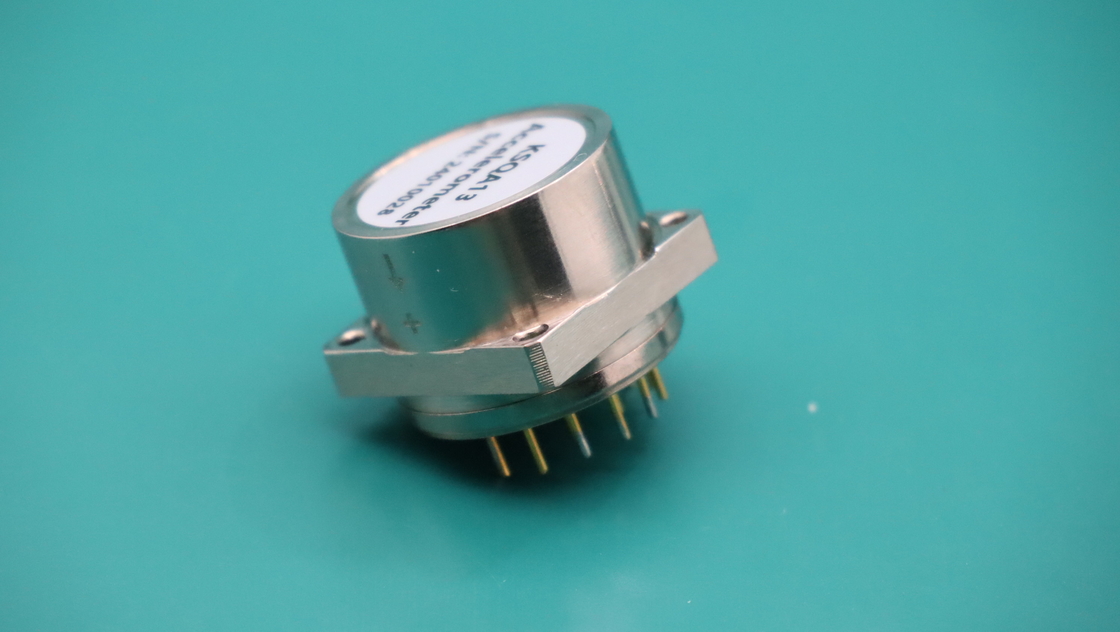

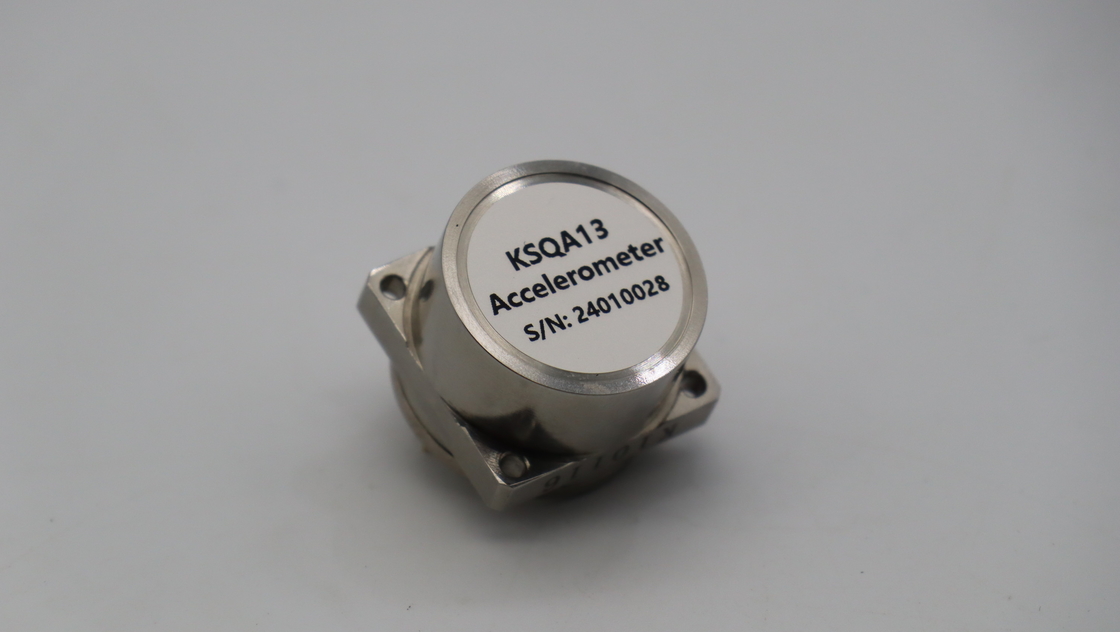

Sensitivity 500g Shock Accelerometer Sensor 2.3 ~ 3.5mA/g Scale Factor Operates -45°C~+100°C

Sensitivity 500g Shock Accelerometer Sensor 2.3 ~ 3.5mA/g Scale Factor Operates -45°C~+100°C

2.3 ~ 3.5mA/g Accelerometer Sensor

Sensitive Accelerometer Sensor

500g Accelerometer Sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KSQA13

Contact Us
Request A Quote
Product Details
Scale Factor:
2.3 ~ 3.5mA/g
Size:
Ø25×25mm
Vibration Peak Sine:
15g@20Hz ~ 2000Hz
Input Range:
±10g
Weight:
≤60g
Shock:
500g
Operating Temperature:
-45°C~+100°C
Temperature Sensitivity:
≤100ppm/°C
Highlight:

2.3 ~ 3.5mA/g Accelerometer Sensor

,

Sensitive Accelerometer Sensor

,

500g Accelerometer Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 working days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000 Pieces per Week
Product Description

Product Description:

Quartz flexible accelerometer

The quartz flexible accelerometer is a precision instrument that comprises quartz glass flexible support and an advanced servo circuit based on the principle of inertia. The output of the accelerometer is precisely proportional to the input acceleration when the carrier is subjected to acceleration. Our accelerometer has a high output impedance current output form that allows users to choose the sampling resistance according to their requirement without affecting the system's stability.
Currently, our quartz flexible accelerometer has formed a series of products that are available in as many as dozens of types. From the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. These accelerometers have been widely used in various fields including aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, providing signals for navigation, guidance, control, leveling, monitoring, and other systems.

Features:

● Excellent index repeatability

● Analog output

● Wide temperature range

● Wide load resistance range

● Small size and light weight

● Shock and vibration resistance

● High temperature resistance



Technical Parameters:

ParameterKSQA13
Power supply parameter
Power Voltage±12~±18V DC
Product performance
Input Range±10g
Bias≤10mg
Temperature Sensitivity≤100μg/°C
Three-hour Stability(1σ)≤100μg
Scale Factor2.3 ~ 3.5mA/g
Temperature Sensitivity≤100ppm/°C
Three-hour Stability (1σ)≤100ppm
SizeØ25×25mm
Weight≤60g
Environment
Operating Temperature-45°C~+100°C
Storage temperature-55°C~+120°C
Shock500g
Vibration Peak Sine15g@20Hz ~ 2000Hz


Dimensions:

Sensitivity 500g Shock Accelerometer Sensor 2.3 ~ 3.5mA/g Scale Factor Operates -45°C~+100°C 0Sensitivity 500g Shock Accelerometer Sensor 2.3 ~ 3.5mA/g Scale Factor Operates -45°C~+100°C 1

Applications:

● Inertial monitoring system

● Inertial navigation system

● Flight control system

● Vibration monitoring

● Oil drilling platforms and geological exploration

● Inertial measurement unit

● Motion monitoring equipment

Support and Services:

Our Accelerometer Sensor product technical support and services include:

  • Assistance with installation and setup
  • Troubleshooting and diagnostics
  • Repair and replacement services
  • Technical documentation and resources

Packing and Shipping:

Product Packaging:

The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.

Shipping:

The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
