Product Description:

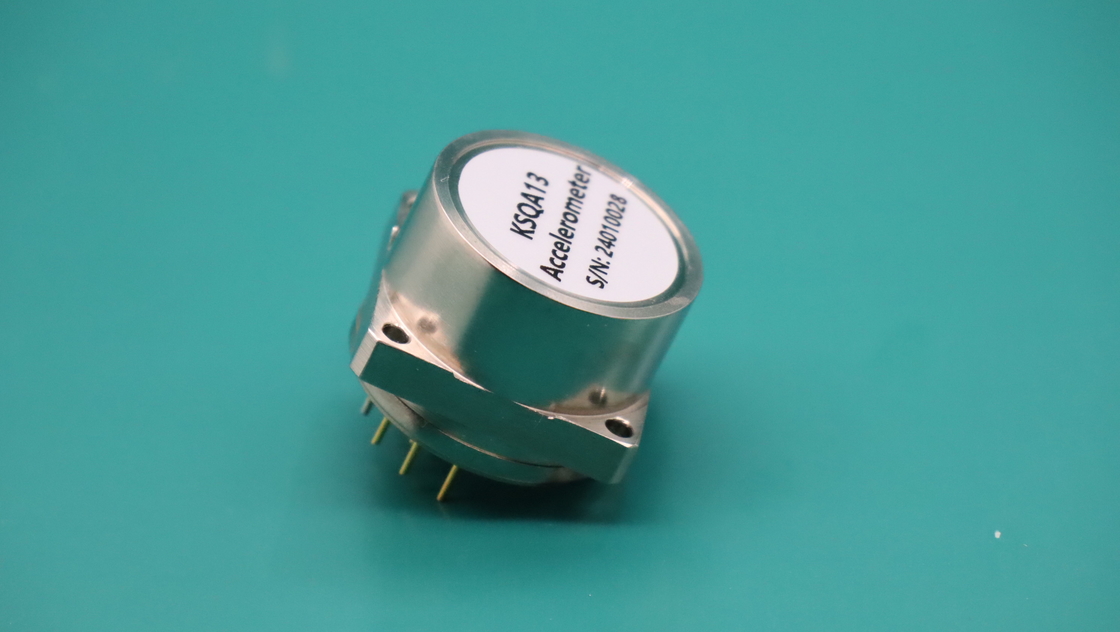

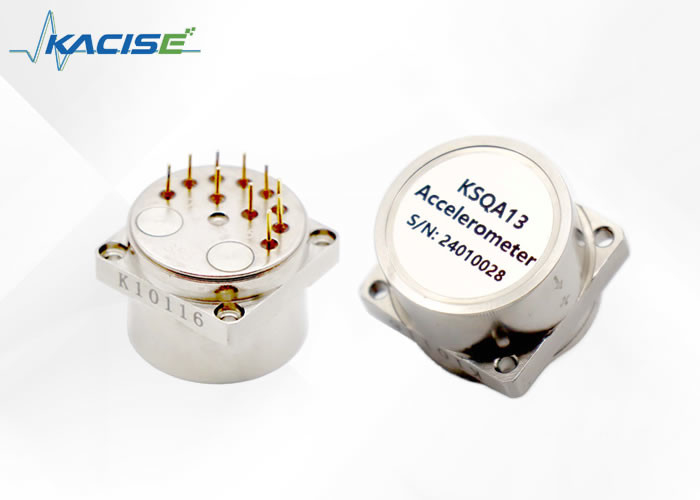

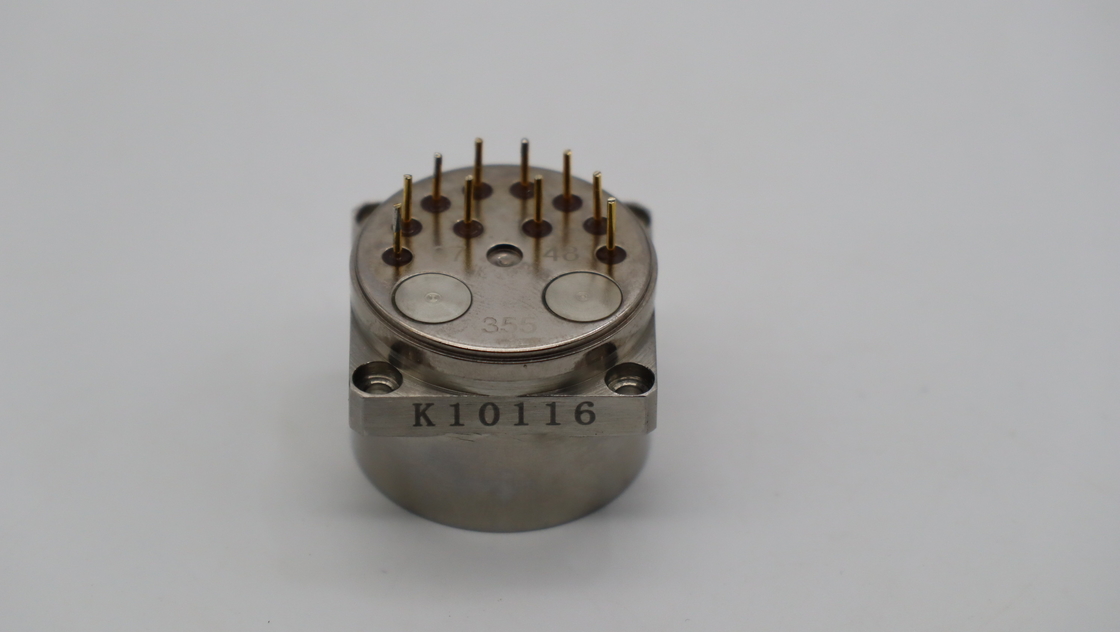

Quartz Flexible Accelerometer
The Quartz Flexible Accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. This device is designed to provide a precise output proportional to the input acceleration when the carrier is subjected to acceleration.
Our accelerometer comes with a current output form that has high output impedance. Users can easily choose their required sampling resistance, and it won't affect the system's stability.
Currently, the Quartz Flexible Accelerometer comes in a series of products, types ranging from high-precision µg KSQA07 accelerometer for satellite microgravity measurement to low-cost, anti-harsh environment KSQA13 accelerometer that has dozens of variations. It is widely used in several fields, including aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and more. The device provides signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
● High temperature resistance
Technical Parameters:
| Parameter | KSQA13 |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±10g |
| Bias | ≤10mg |
| Temperature Sensitivity | ≤100μg/°C |
| Three-hour Stability(1σ) | ≤100μg |
| Scale Factor | 2.3 ~ 3.5mA/g |
| Temperature Sensitivity | ≤100ppm/°C |
| Three-hour Stability (1σ) | ≤100ppm |
| Size | Ø25×25mm |
| Weight | ≤60g |
| Environment |
| Operating Temperature | -45°C~+100°C |
| Storage temperature | -55°C～+120°C |
| Shock | 500g |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Our Accelerometer Sensor product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and diagnostics
- Repair and replacement services
- Technical documentation and resources
Packing and Shipping:
Product Packaging:
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
