Product Description:
Introduction

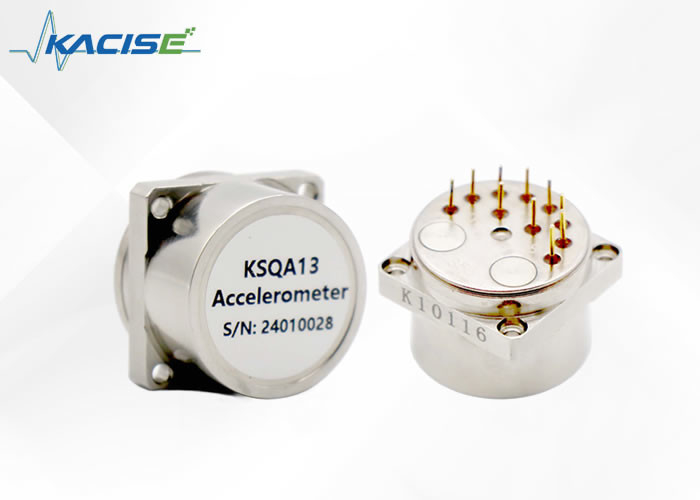

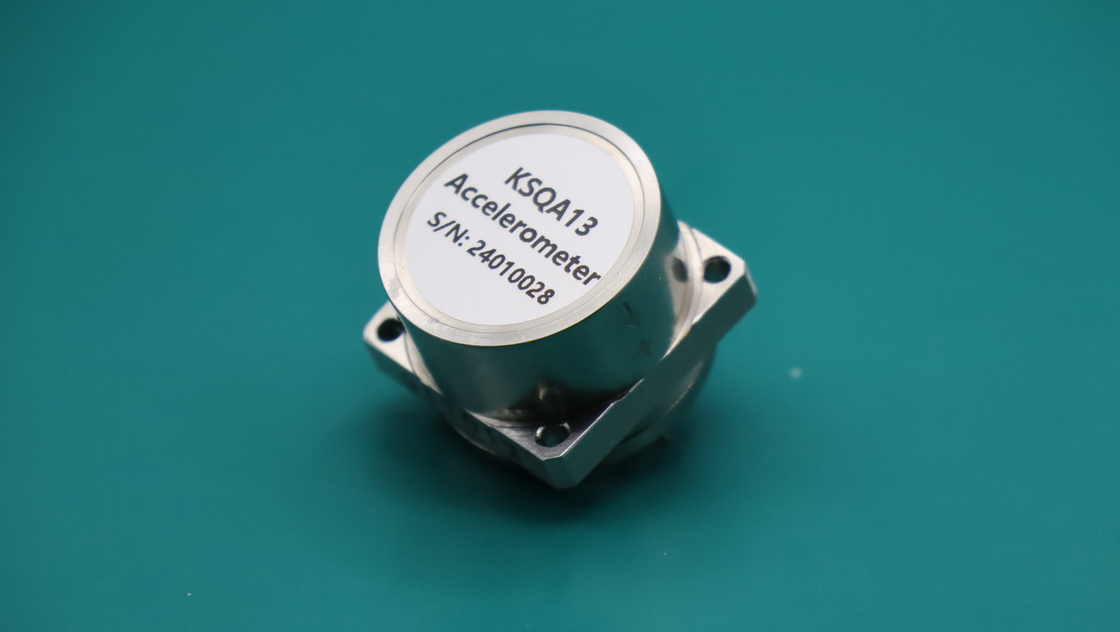

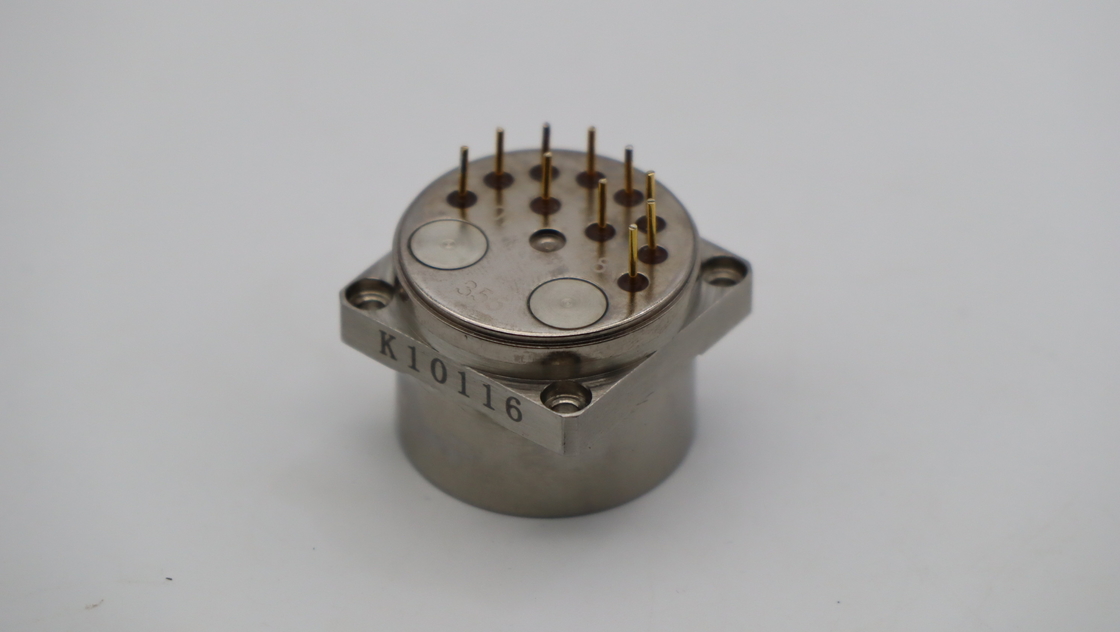

The Quartz Flexible Accelerometer is a precision instrument that comprises a quartz glass flexible support and advanced servo circuit based on the principal of inertia. When the carrier is subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration.
Features and Benefits
Our accelerometer has a current output form of high output impedance, allowing users to choose the sampling resistance according to their requirement without affecting the stability of the system. This makes it highly adaptable and able to meet the demands of a variety of applications.
Product Range
Our Quartz Flexible Accelerometers have formed a series of products, with types ranging from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. We have as many as dozens to choose from, and they are widely used in various fields, including aerospace, aviation, navigation, shipbuilding, vehicle manufacturing, petroleum industries and geotechnical engineering.
Applications
Our accelerometers are used for providing signals for navigation, guidance, control, leveling, monitoring, and other systems. Their precision and adaptability make them suitable for a variety of fields, and they're an excellent choice for many different types of projects.
Features:
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
● High temperature resistance
Technical Parameters:
| Parameter |
KSQA13 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±10g |
| Bias |
≤10mg |
| Temperature Sensitivity |
≤100μg/°C |
| Three-hour Stability(1σ) |
≤100μg |
| Scale Factor |
2.3 ~ 3.5mA/g |
| Temperature Sensitivity |
≤100ppm/°C |
| Three-hour Stability (1σ) |
≤100ppm |
| Size |
Ø25×25mm |
| Weight |
≤60g |
| Environment |
| Operating Temperature |
-45°C~+100°C |
| Storage temperature |
-55°C～+120°C |
| Shock |
500g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
