KWS-350 Digital Conductivity Sensor , Output method RS-485 (Modbus RTU)，Casing material POM

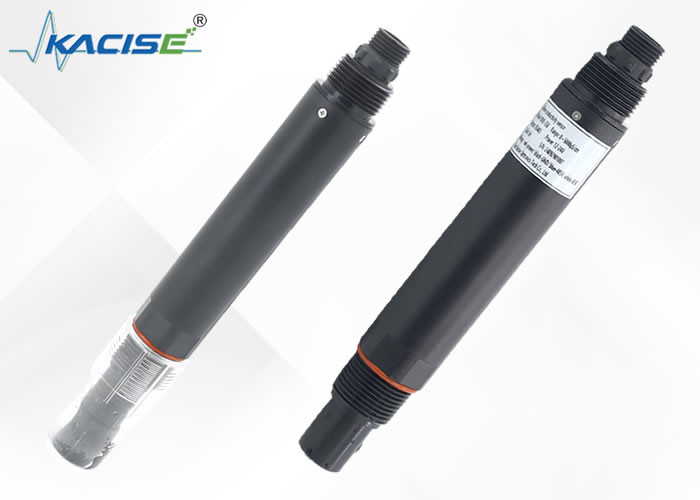

The Kacise KWS-350 digital conductivity sensor boasts a broad measurement range and automatically adjusts its measurement scale. It features an integrated temperature sensor that provides real-time temperature compensation. This sensor is highly resistant to contamination, ensuring reliable long-term online monitoring even in harsh environments without the risk of polarization. It offers an RS485 output, allowing for network connectivity without the need for a controller.

Feature

• Drinking water / surface water / industrial water treatment
• Signal output: RS-485 (Modbus/RTU protocol)
• Conveniently connect to third-party equipment such as PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen.

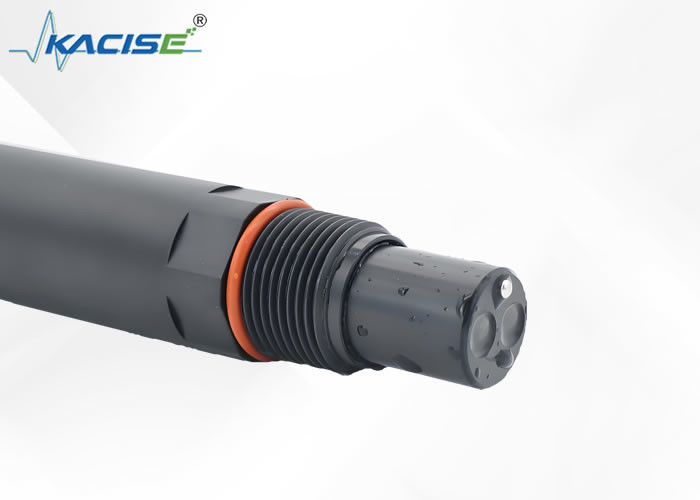

• Immersion installation, with 3/4NPT pipe thread, convenient for immersion installation or installation in pipelines and tanks.
• IP68 protection.

0~20μS/cm,0~200μS/cm,0~5000μS/cm can output conductivity and TDS at the same time.

Technical Specifications

Dimensions

KWS-350 (Range: 0~20.00μS/cm)

KWS-350 (Range: 0~200.0μS/cm)

KWS-350 (Range: 0~5000μS/cm)

Note: The sensor connector is a male M16-5-core waterproof connector.

KWS-350 (Range: 0~200.0mS/cm)

Note: The sensor connector is a male M16-5-core waterproof connector.

Support and Services

Customer Support

Technical Assistance: Our specialized support team is ready to help with installation, setup, and problem-solving. Contact us through phone, email, or live chat for assistance.

Documentation: Detailed user manuals, setup guides, and technical specifications are accessible on our website for your convenience.

Warranty and Returns

Warranty Coverage: All our sensors include a standard one-year warranty against manufacturing defects. You can also opt for extended warranty plans.

Return Policy: If you're unhappy with your purchase, you may return the sensor within 30 days for a complete refund, as long as it is in its original state.

Appendix:KWS-350 Digital Conductivity Sensor Manual_V1.0.pd...
