The KWS-380 Digital TDS Sensor With RS-485 Output For Various Water Quality Monitoring

The KWS-380 Digital TDS Sensor With RS-485 Output For Various Water Quality Monitoring

RS-485 output digital TDS sensor

Water Quality Monitoring digital TDS sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

CE

Model Number:

KWS-380

Contact Us
Request A Quote
Product Details
Precision:
±1.5%,±0.3℃
Ip Grade:
IP68
Output:
RS-485, MODBUS Protocol
Power Supply:
12~24VDC
Highlight:

RS-485 output digital TDS sensor

,

Water Quality Monitoring digital TDS sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

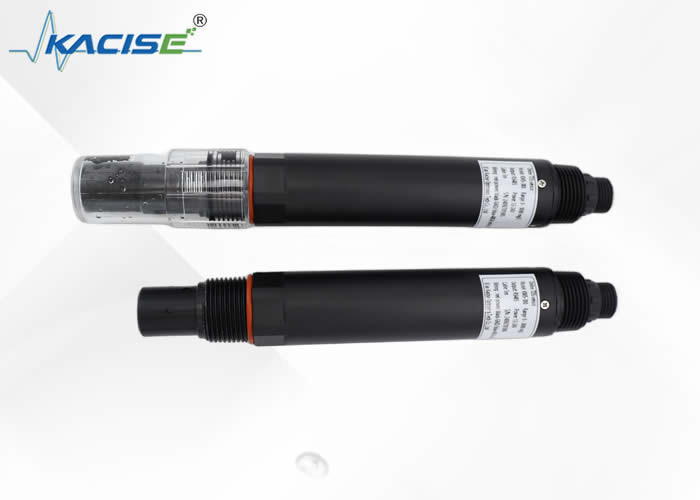

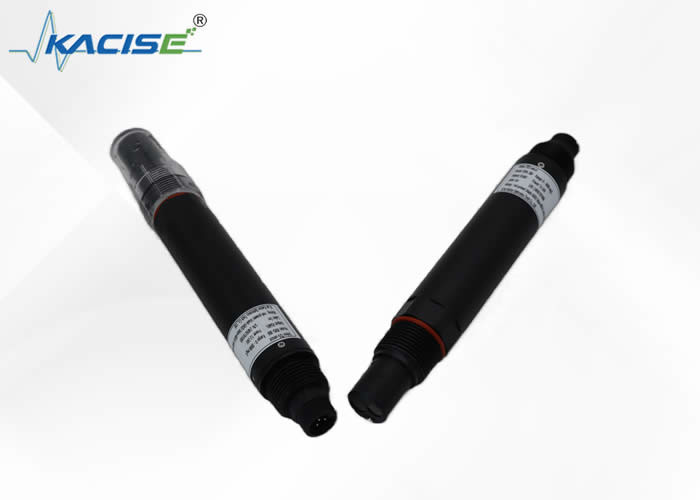

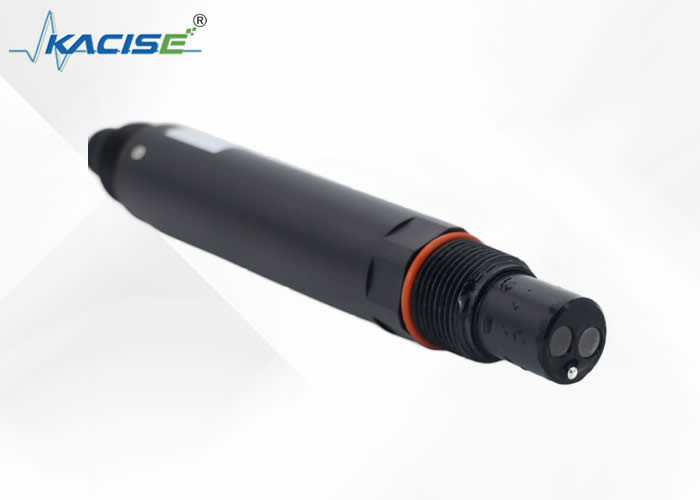

The KWS-380 digital TDS sensor with RS-485 output is used for various water quality monitoring

Introduction

The KWS-380 digital TDS sensor with RS-485 output is an outstanding and versatile device that finds extensive application in various water quality monitoring scenarios. It is engineered with high-precision sensing elements, enabling it to accurately measure the Total Dissolved Solids (TDS) content in water. The RS-485 output interface allows for seamless integration with a wide range of monitoring systems and data loggers. Whether it's in environmental water quality assessment, industrial process water monitoring, or even in agricultural irrigation water management, this sensor can provide reliable and real-time TDS data. It helps in ensuring the compliance of water quality standards, safeguarding the health of ecosystems, optimizing industrial production processes, and promoting efficient water use in agriculture. Its durability and stable performance make it a preferred choice for professionals engaged in different water quality monitoring fields.

Feature

  • For drinking water/surface water/various water supply/industrial water treatment.
  • Signal output: RS-485 (Modbus/RTU protocol)
  • It is convenient to connect to third-party equipment such as PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen.
  • Submerged installation, with 3/4NPT pipe thread, easy to submerged or installed in pipes and tanks.
  • IP68 protection level.
  • 0~20μS/cm, 0~200μS/cm, 0~5000μS/cm are optional.
  • Can output conductivity and TDS at the same time.

Technical Specification

Measuring Range

and Resolution

KWS-380A

0~20μS/cm

(TDS 0-10mg/L)

0.01



KWS-380B

0~200μS/cm

(TDS 0-100mg/L)

0.1

KWS-380C

0~5000μS/cm

(TDS 0-3000mg/L)

1

KWS-380D

0~200 mS/cm 0.1
Accuracy ±1.5%,±0.3℃
Storage Temperature -5~65℃
Ip Grade IP68
Working Temperature 0~50℃, <0.6MPa
Output RS-485, MODBUS protocol
Power Supply 12~24VDC
Temperature Compensation Automatic (PT1000)
Wetted Part Material POM and stainless steel
Cable Length Standard 5m, other length customizable
Calibration Method Two-point calibration
Power Consumption 0.2w@12V

Dimension

The KWS-380 Digital TDS Sensor With RS-485 Output For Various Water Quality Monitoring 0

The KWS-380 Digital TDS Sensor With RS-485 Output For Various Water Quality Monitoring 1



Production Flow



The KWS-380 Digital TDS Sensor With RS-485 Output For Various Water Quality Monitoring 2

Company Information

The KWS-380 Digital TDS Sensor With RS-485 Output For Various Water Quality Monitoring 3

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.



Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services
  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
FAQ

1. Q: What information need to be provided to choose the suitable The KWS-380 digital TDS sensor with RS-485 output is used for various water quality monitoring?

A: Please provide us: application filed, measuring range, power supply and output, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
