KWS-201 On-line Ammonia Sensor Optimal for Aquaculture Nitrogen Concentration

KWS-201 On-line Ammonia Sensor Optimal for Aquaculture Nitrogen Concentration

Aquaculture Ammonia Sensor

Nitrogen Concentration Ammonia Sensor

On-line Ammonia Sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

CE

Model Number:

KWS-201

Contact Us
Request A Quote
Product Details
Measuring Range:
0-100mg/L (optional 0-1000mg/L)
Measurement Accuracy:
±10% Or ±0.5mg/L (whichever Is Greater)
Sensor Interface:
Support RS-485, MODBUS Protocol
Casing:
POM+316L (customizable Titanium Alloy)
Highlight:

Aquaculture Ammonia Sensor

,

Nitrogen Concentration Ammonia Sensor

,

On-line Ammonia Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

Product Description

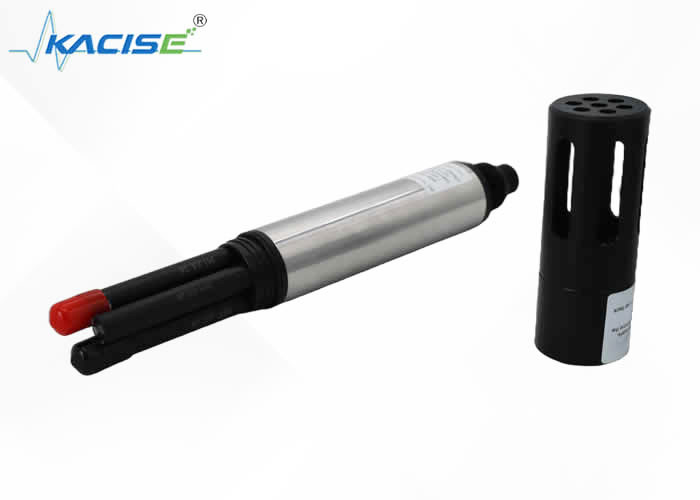

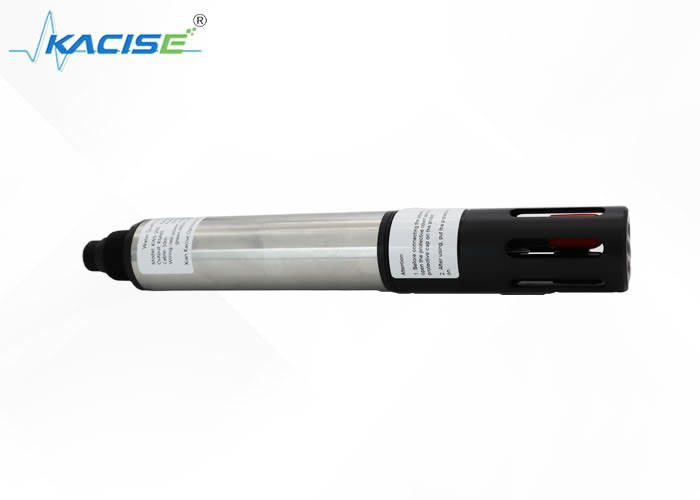

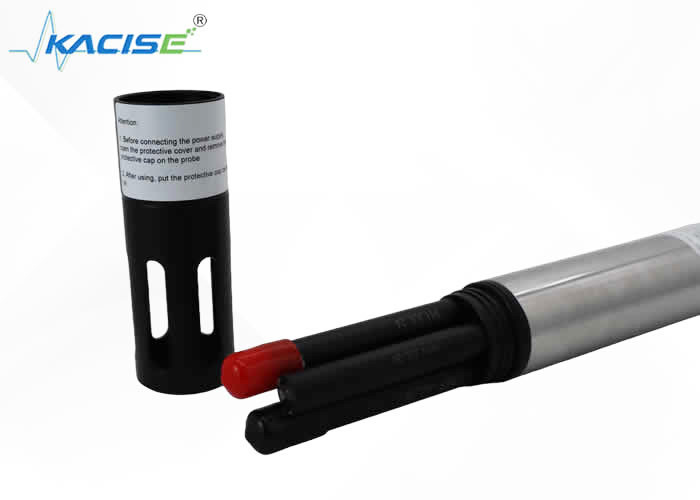

The KWS-201 on-line ammonia sensor is an essential tool for aquaculture. It is specifically designed to accurately measure ammonia nitrogen concentration in aquaculture water. With its advanced sensing mechanism, it provides real-time and highly precise data. This enables aquaculture farmers to closely monitor water quality and promptly detect any abnormal ammonia levels. The sensor's durable construction allows it to function stably in the aquatic environment, resisting factors like humidity and water impurities. Its user-friendly interface makes it easy to operate and interpret results. By maintaining optimal ammonia nitrogen levels, it helps ensure the health and growth of aquatic organisms, thereby enhancing the productivity and success of aquaculture operations.
Feature

  • Digital sensor, RS-485 output, supports MODBUS;
  • No reagents required, no pollution, more economical and environmentally friendly;
  • Automatically compensate for pH and temperature in water;
  • Ion electrode method, no electrolyte required, electrodes can be replaced separately, easy to maintain.

Parameter

Name Ammonia Nitrogen sensor
Measuring range 0-100mg/L (optional 0-1000mg/L)
Measurement accuracy ±10% or ±0.5mg/L (whichever is greater)
Resolution 0.01mg/L
pH range 4-10pH
pH accuracy ±0.1pH
pH resolution 0.01
Sensor size φ36mm*265rmm (with protective cover)
Protection level IP68
Maximum depth 10 meters underwater
Temperature range 0-50℃
Sensor interface Support RS-485, MODBUS protocol
Assembly NPT3/4 thread, immersion installation
Power consumption 0.25W (recommended power supply: DC 9-24V, ≥1A)
Probe cable length 10 meters (default), customizable
Calibration 1-point or 2-point calibration
Casing POM+316L (customizable titanium alloy)
Dimension
KWS-201 On-line Ammonia Sensor Optimal for Aquaculture Nitrogen Concentration 0
Cases
KWS-201 On-line Ammonia Sensor Optimal for Aquaculture Nitrogen Concentration 1
