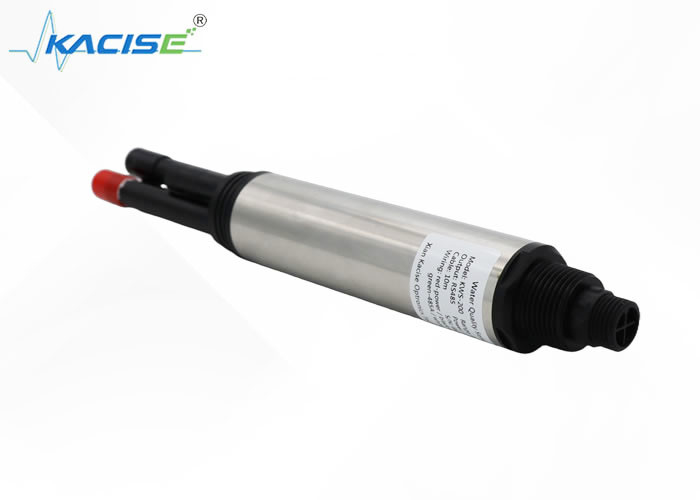

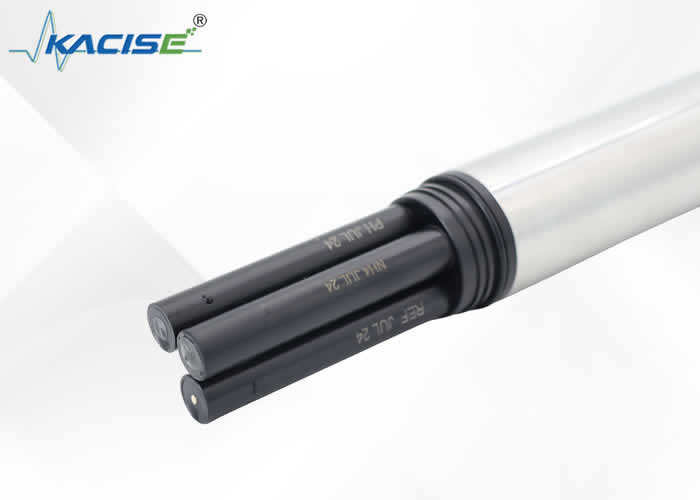

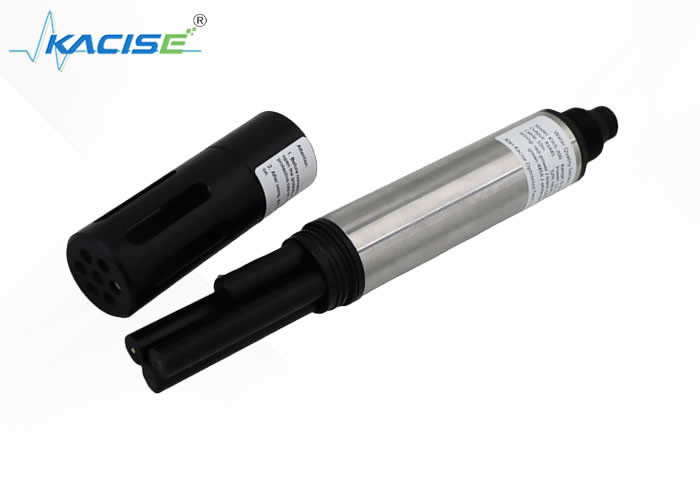

Online Ammonia Nitrogen Sensor With Auto PH & Temp Compensation For Ensuring Drinking Water Source Safety

Online Ammonia Nitrogen Sensor With Auto PH & Temp Compensation For Ensuring Drinking Water Source Safety

Temp Compensation Ammonia Nitrogen Sensor

Drinking Water Source Ammonia Nitrogen Sensor

Auto pH Ammonia Nitrogen Sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

CE

Model Number:

KWS-201

Contact Us
Request A Quote
Product Details
Measuring Range:
0-100mg/L (optional 0-1000mg/L)
Resolution:
0.01mg/L
Measurement Accuracy:
±10% Or ±0.5mg/L (whichever Is Greater)
Sensor Interface:
Support RS-485, MODBUS Protocol
Power Consumption:
0.25W (recommended Power Supply: DC 9-24V, ≥1A)
Highlight:

Temp Compensation Ammonia Nitrogen Sensor

,

Drinking Water Source Ammonia Nitrogen Sensor

,

Auto pH Ammonia Nitrogen Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

Product Description

In the pursuit of safeguarding drinking water sources, our Online Ammonia Nitrogen Sensor emerges as a crucial solution. This advanced sensor is specifically designed to accurately measure ammonia nitrogen levels in water, which is essential for maintaining water quality.

What sets it apart is its automatic pH and temperature compensation feature. Fluctuations in pH and temperature can significantly impact the accuracy of ammonia nitrogen detection. By continuously adjusting for these variables, the sensor ensures consistent and reliable readings. This not only provides real - time data but also enables timely responses to potential water quality issues.

Easy to install and operate, it can be integrated into existing water monitoring systems. With its high - precision measurements, it plays a pivotal role in protecting our precious drinking water sources, ensuring that the water we consume is safe and healthy.


Feature

  • Digital sensor, RS-485 output, supports MODBUS;
  • No reagents required, no pollution, more economical and environmentally friendly;
  • Automatically compensate for pH and temperature in water;
  • Ion electrode method, no electrolyte required, electrodes can be replaced separately, easy to maintain.

Parameter

Name Ammonia Nitrogen sensor
Measuring range 0-100mg/L (optional 0-1000mg/L)
Measurement accuracy ±10% or ±0.5mg/L (whichever is greater)
Resolution 0.01mg/L
pH range 4-10pH
pH accuracy ±0.1pH
pH resolution 0.01
Sensor size φ36mm*265rmm (with protective cover)
Protection level IP68
Maximum depth 10 meters underwater
Temperature range 0-50℃
Sensor interface Support RS-485, MODBUS protocol
Assembly NPT3/4 thread, immersion installation
Power consumption 0.25W (recommended power supply: DC 9-24V, ≥1A)
Probe cable length 10 meters (default), customizable
Calibration 1-point or 2-point calibration
Casing POM+316L (customizable titanium alloy)
Dimension
Online Ammonia Nitrogen Sensor With Auto PH & Temp Compensation For Ensuring Drinking Water Source Safety 0
Cases
Online Ammonia Nitrogen Sensor With Auto PH & Temp Compensation For Ensuring Drinking Water Source Safety 1
