Name: TDLAS200A Auto-Calibrating Laser Methane Sensor with 0.2s Fastest Response Time and 0~5000ppm Measurement Range
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: TDLAS200A
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

TDLAS200A Auto-Calibrating Laser Methane Sensor with 0.2s Fastest Response Time and 0~5000ppm Measurement Range

Auto Calibrating Methane Sensor

TDLAS200 Laser Methane Sensor

Auto Calibrating Laser Methane Sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

Model Number:

TDLAS200A

Request A Quote

Product Details

Product Model:

TDLAS200

Detection Object:

Methane (CH4)

Measurement Principle:

Laser Absorption Spectrum (TDLAS)

Volume:

53ml

Fastest Response Time:

0.2s

Measurement Range:

0~5000ppm

Highlight:

Auto Calibrating Methane Sensor

TDLAS200 Laser Methane Sensor

Auto Calibrating Laser Methane Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

TDLAS200A Auto-Calibrating Laser Methane Sensor with 0.2s Fastest Response Time and 0~5000ppm Measurement Range

Get Best Price

Video

TDLAS200B Series Laser Methane Sensor

Get Best Price

TDLAS301 Methane Laser Sensor with High Measurement Accuracy and Fast Response for Continuous CH4 Detection

Get Best Price

TDLAS200 High-Sensitivity Laser Methane Sensor with 0.5ppm Detection Limit and 0~5000ppm Range for Industrial Safety

Get Best Price

86--17719566736

Contact Now

Product Description

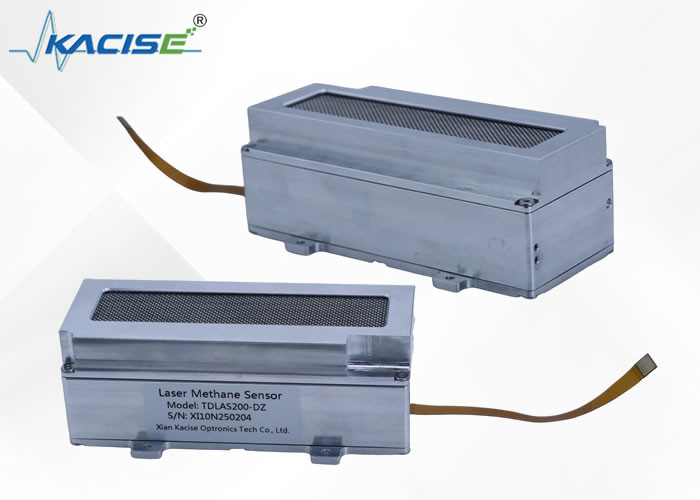

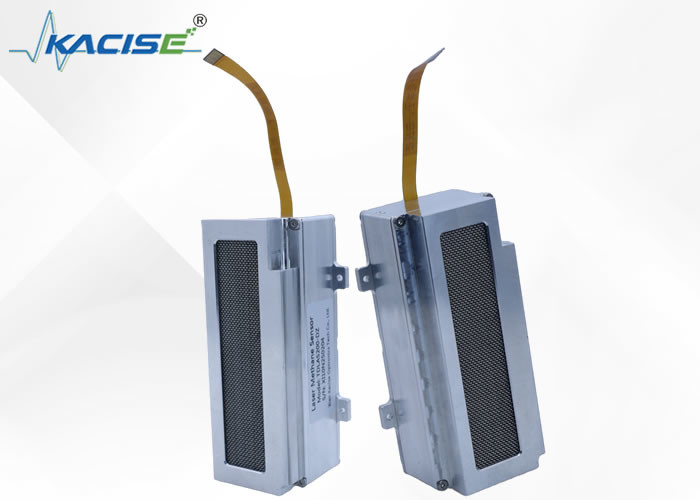

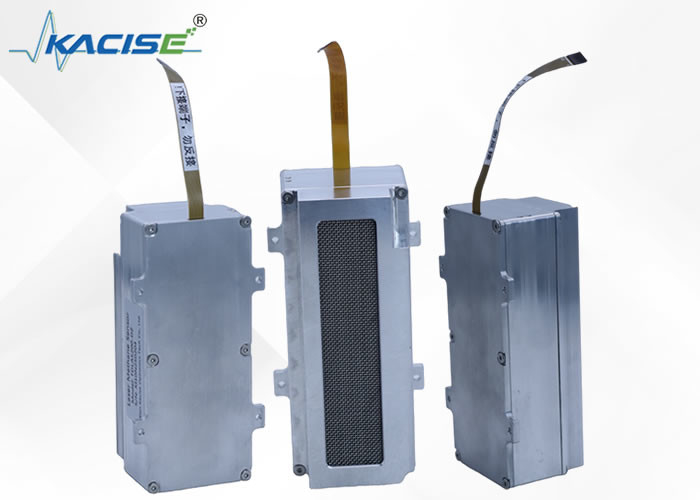

TDLAS200A Auto-Calibrating Laser Methane Sensor

Introduction

The KACISE TDLAS200A Auto-Calibrating Laser Methane Sensor is designed for hassle-free and accurate methane detection. It features a built-in reference cell for automatic calibration, ensuring consistent performance over time. With a detection range of 0~5000ppm and a response time of 0.1 seconds, it provides reliable data for safety and environmental monitoring. The sensor is compact and easy to integrate, with an operating temperature range of -20~50℃. KACISE combines advanced TDLAS technology with user-friendly features for superior methane detection.

Features

High sensitivity, only responds to the target gas
Built-in reference cell, can be automatically calibrated
Easy to integrate, digital interface directly outputs status and concentration

Measuring Principle

"Methane molecules absorb light of a specific wavelength" --Molecular absorption spectrum
"The amount of light absorbed by a transparent medium (methane gas mass) is proportional to the thickness and concentration of the gas mass" --Beer-Lambert's law

According to the above physical principles, a beam of light of a specific wavelength can be used to penetrate the leaking methane gas mass. According to the degree of weakening of the beam, the concentration of methane in the gas mass can be measured, and it only responds to methane (unique selectivity).

Using a detection cell with multiple reflections and allowing the laser to repeatedly pass through the gas being measured can multiply the detection sensitivity.

Technical Parameters

Product model	TDLAS200A(Pump)
Detection object	Methane (CH4)
Measurement principle	Laser absorption spectrum (TDLAS)
Static detection limit	0.5ppm@25℃10SPS (typical value, please contact us for details)
Volume	53ml
Fastest response time	0.2s
Measurement range	0~5000ppm
Measurement deviation	0-200ppm true value +/-2ppm 200-1000ppm true value +/-1% 1000-5000ppm true value +/-2%
12hrs drift	+/-1.5ppm
Operating temperature	-20~50℃
Power supply	5-12VDC 1W (typical) 3W (maximum)
Dimensions and weight	1155938mm
Gas interface	Pagoda direct M-5AU-4
Fastest response time	Detection time 0.1s

*1 Please ensure that the power input voltage of the module is not less than 5V

*2 Pump selection recommendation <500ml/min

Dimensions of the detection module

Dimensions of the detection module host: 115*59*38mm (excluding cables and gas connectors)
