High - Precision Laser Ranging Module，Support secondary development, easy to integrate

High Precision Laser Ranging Module

KLS-102 Laser Ranging Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

LSBM-100

Request A Quote

High - Precision Laser Ranging Module，Support secondary development, easy to integrate

Product Details

Description:

Long Measuring Range 100m

Measuring Range:

0.03... 90% Reflectivity In The 100m Room

Frequency:

1...20Hz

Accuracy:

±3mm

Size / Dimension:

63x40x18mm

Weight:

13g

Highlight:

High Precision Laser Ranging Module

KLS-102 Laser Ranging Module

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

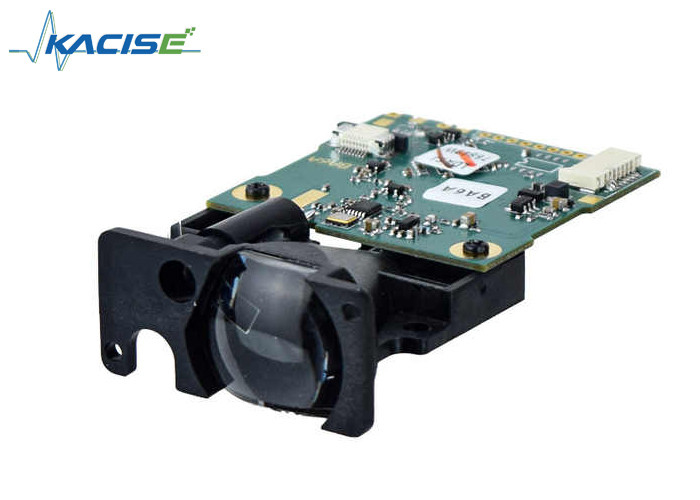

High - Precision Laser Ranging Module

1.Overview

KACISE's LSBM-100 High - Precision Laser Ranging Module is a top - notch product. It uses advanced ITOF technology for fast response and high - accuracy ranging. With a measuring accuracy of ±3mm and a data update frequency up to 20Hz, it can measure up to 100 meters. Its compact 63×40×18mm size and 13g weight, along with UART digital interface, make system integration easy. Suitable for industrial automation, robot navigation, etc., it has a long laser life over 10,000 h, operates in - 20~60℃, and offers a great performance - to - cost ratio. High - Precision Laser Ranging Module，Support secondary development, easy to integrate 0

2.Product Features

Advanced Technology
High Precision
High Data Update Frequency
Large Measuring Range
Compact Design

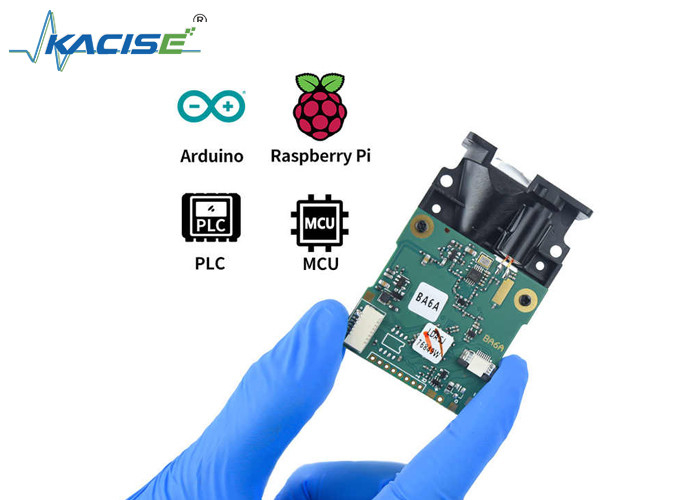

Convenient Interface
Long Laser Life
Wide Operating Conditions
Good Performance/Cost Ratio

3.Technical Parameters

Measurement	0.03... 90% reflectivity in the 100m room
Duplicate accuracy	2mm
Absolute accuracy	±3mm
Measuring rate	3...20Hz
Measure the target object	natural target
Laser life	Over 10,000 h
light source	635nm red visible laser
Laser safety level	2
Typical light spot size	10m: 5x3mm; 25m: 10x6mm; 50m: 15x10mm 100m: 30x20mm
Interface	UART
Working voltage	DC2.5…3.3 V
Working temperature	-20~60℃
power dissipation	＜0.27W

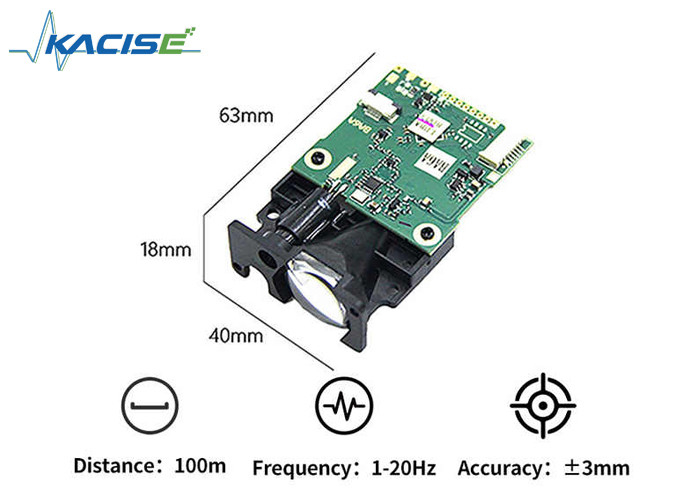

size	63×40×18mm

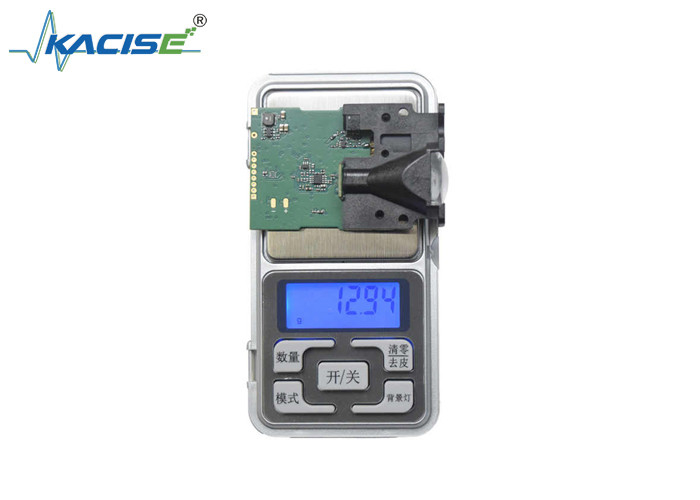

weight	13g
