Home > products > Laser Sensors >

LSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laser

High Precision ITOF Laser Ranging Module

KLS-106 ITOF Laser Ranging Module

High Precision Laser Ranging Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

LSBM-60

Request A Quote

Product Details

Output:

UART

Detection Range:

60m

Accuracy:

±3mm

Illuminant:

635nm Red Visible Laser

Power Dissipation:

<0.27W

Working Temperature:

-20~60℃

Highlight:

High Precision ITOF Laser Ranging Module

KLS-106 ITOF Laser Ranging Module

High Precision Laser Ranging Module

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Get Best Price

Lidar can be used for ETC vehicle type recognition and can provide host computer software data analysis

Get Best Price

86--17719566736

Contact Now

Product Description

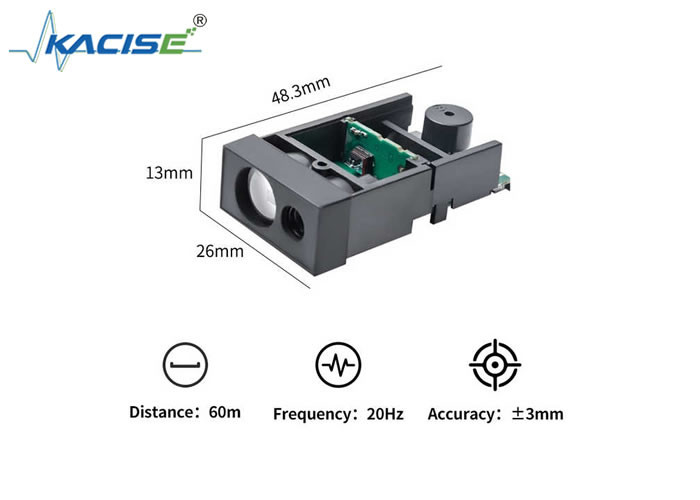

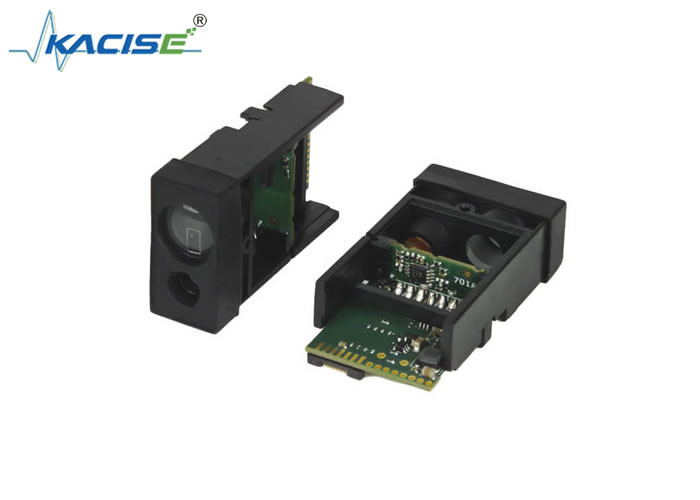

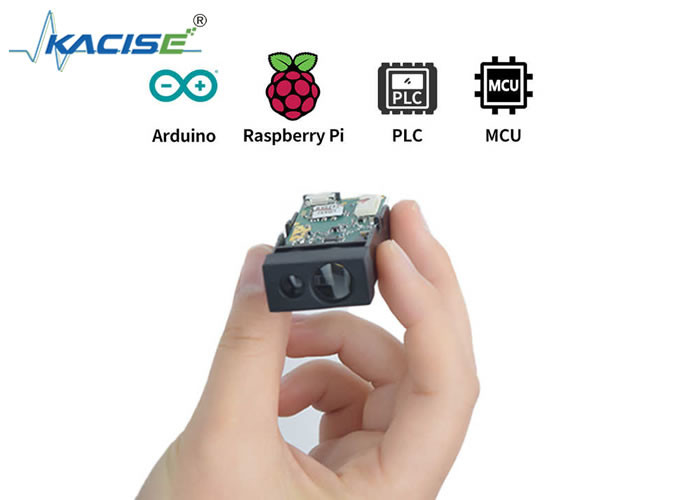

LSBM-60 High - Precision ITOF Laser Ranging Module

1.Overview

KACISE's LSBM-60 High - Precision ITOF Laser Ranging Module is a top - tier product. Leveraging advanced ITOF technology, it provides rapid response and pinpoint - accurate ranging. With an accuracy of ±3mm and a 2 - mm repeatability precision, it ensures reliable data. It can measure up to 60 meters, updating data at 3 - 20Hz. Weighing just 9g and featuring a UART interface, it's easy to integrate into systems. Operating from - 20 to 60℃ and consuming <0.27W, it suits industrial automation, robot navigation, and more, offering a great performance - price ratio. LSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laser 0

2.Product Features

Advanced ITOF Technology
High Precision Ranging
Good Data Update Rate
Sufficient Measuring Range
Compact Design
Convenient Interface
Energy - Efficient
Wide Operating Temperature
Safe Light Source
High Performance - to - Price Ratio

3.Wide Operating Conditions

Mounting Type	Manual Installation
Description	Laser Distance Measuring Sensor 60m
Model Number	LSBM-60
Type	Distance Sensor
Series	Laser Distance Module 60m
Features	Small Size, High Precision, High Stability
Manufacturing Date Code	202501
Brand Name	Siman
Theory	ITOF
Output	UART
Description	LSBM-60
Detection Range	60m
Frequency	3-20Hz
Repeatability precision	2mm
Accuracy	±3mm
Illuminant	635nm red visible laser
Service voltage	DC3.3V
Power dissipation	<0.27W
Weight	9g
Working temperature	-20~60℃
Interface	UART

LSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laser 1
