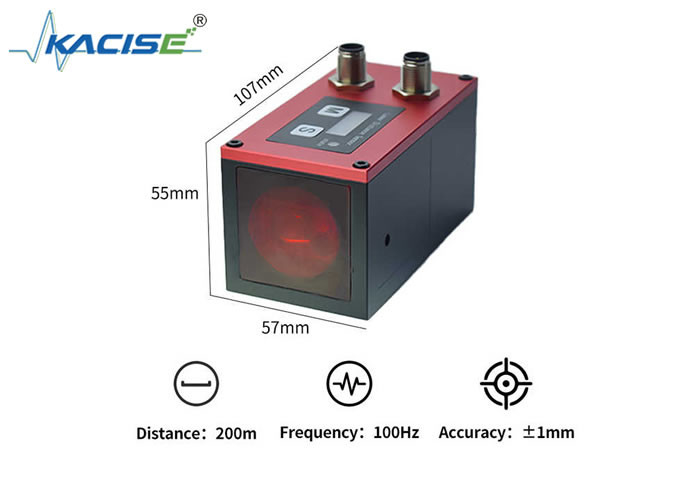

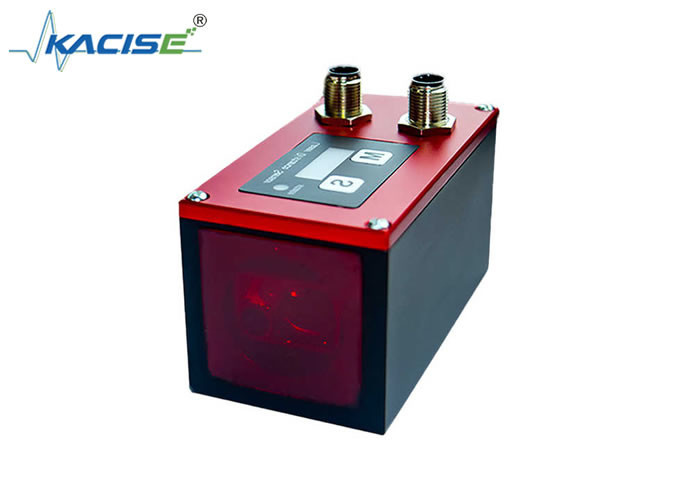

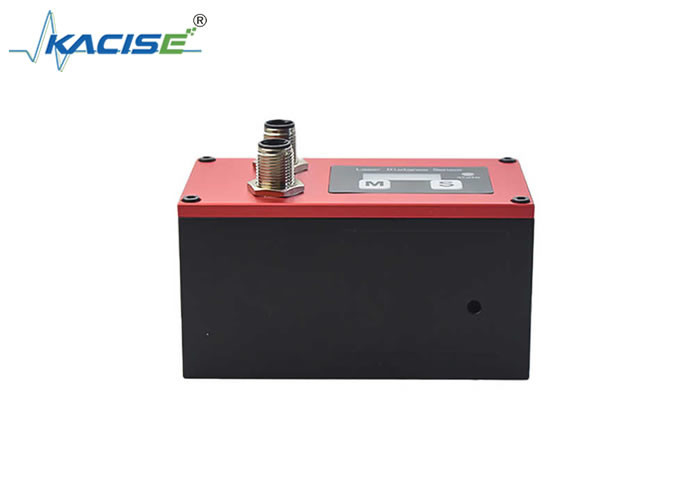

KLS109 High - Precision Industrial Laser Ranging Sensor

1.Overview

The KLS109 is a state - of - the - art industrial - grade laser ranging sensor. Developed by sensing technology, it utilizes advanced ITOF technology. With a measurement frequency up to 100Hz and an accuracy of ±1mm over a maximum range of 200m, it meets the demanding requirements of high - speed and high - precision industrial measurements. It supports multiple industrial communication interfaces like RS485, SSI, Ethernet, CANBUS, and 4 - 20mA analog output, enabling easy integration. The built - in high - definition OLED display shows real - time distance, and button - based parameter settings make it user - friendly. Its IP67 protection grade ensures excellent dustproof and waterproof performance, allowing stable operation in harsh environments. Ideal for stacking machines, warehousing logistics, and automated production lines, it offers accurate distance measurement and location control for industrial automation.

2. Product Features

• High - precision measurement with ±1mm accuracy.
• High measurement frequency of up to 100Hz.
• Multiple industrial communication interfaces for seamless integration.
• IP67 protection grade for dustproof and waterproof performance.
• Real - time display on a high - definition OLED and easy parameter settings.

3.Technical Specifications

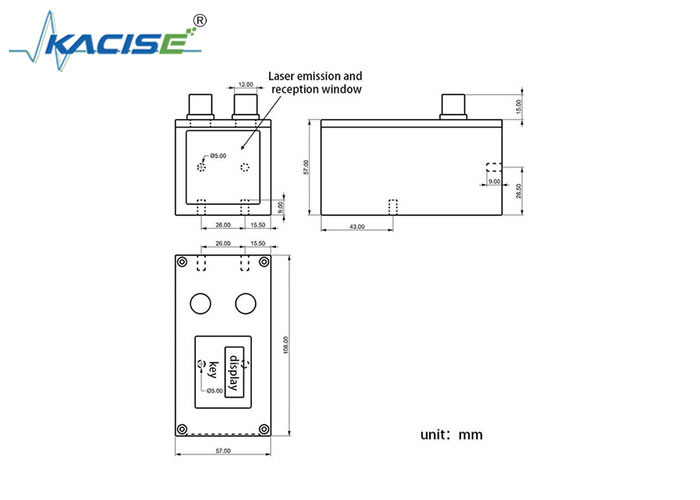

4.Dimensions
