Introduction

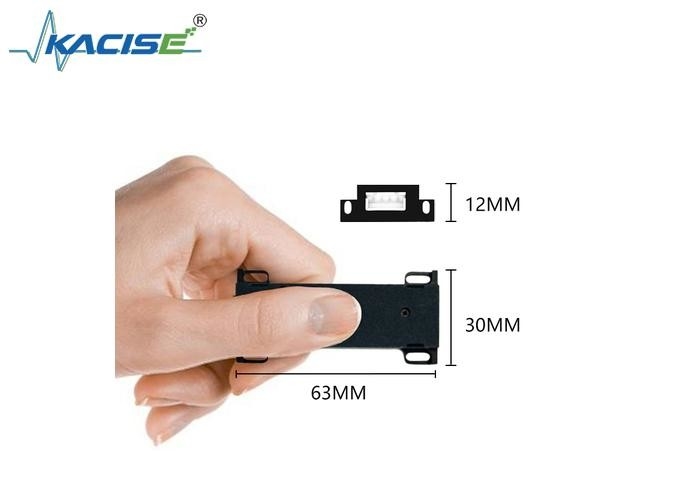

Since KLS210 high accuracy laser distance sensor was released, it has quickly become a hot laser distance sensor. Lots of clients like it very much. KLS210 distance sensor has a smaller size, 63*30*12mm, but this model can measure long distance 10m. It has a high accuracy ±1mm, which can accurately measure distance.KLS210 accuracy distance sensor has a IP54 housing, protecting ranging module inside from injury and easy to fix sensor, this helps customers reduce a lot of problems. Such as structural and testing issues. KLS210 laser sensor has a wide voltage, 6V-32V. It meets the different voltage requirements of different customers.

Product Features

1. The minimum range is 3 cm, the maximum range is 10 meters (other ranges can be customized)

2. Frequency response 3Hz (other frequencies 8Hz, 20Hz, etc. can be selected or customized)

3. Resolution 1mm

4. Support multiple sensor networking

5. RS232 serial port interface, can support other interface communication such as TTL, RS485, Bluetooth, etc.

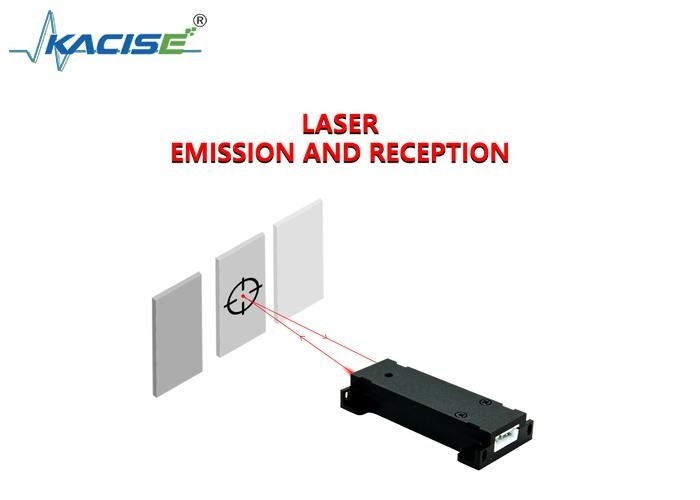

6. Non-contact precision measurement

Technical Parameters
