Name: Industrial Laser Ranging Sensor RS232 Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLS220
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

Industrial Laser Ranging Sensor RS232 Output

RS232 Laser Ranging Sensor

Industrial Laser Ranging Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLS220

Request A Quote

Industrial Laser Ranging Sensor RS232 Output

Product Details

Measuring Range:

0.03~40m

Measuring Accuracy:

±1mm

Laser Grade:

Class 2

Working Voltage:

5~32V

Measuring Time:

0.4~4s

Frequency:

3Hz

Highlight:

RS232 Laser Ranging Sensor

Industrial Laser Ranging Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

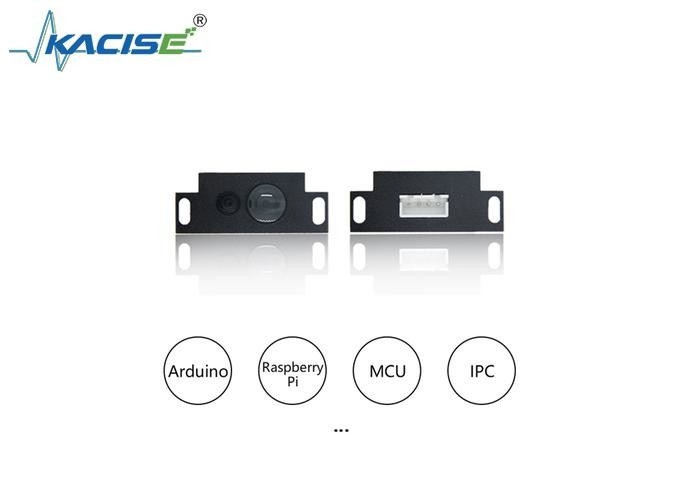

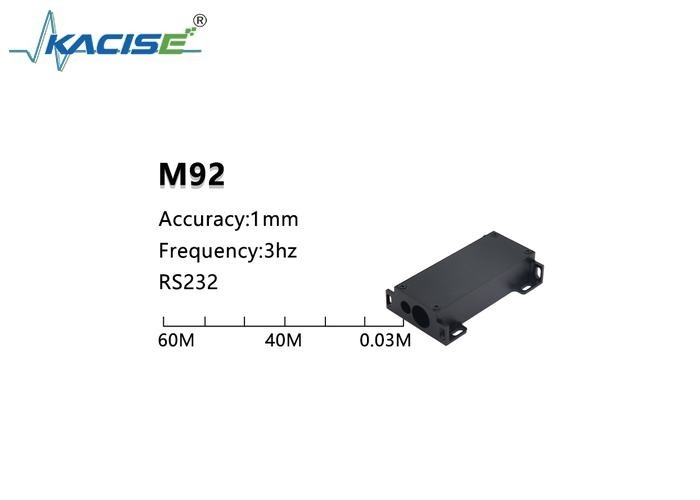

Industrial Laser Ranging Sensor RS232 Output

Introduction

KLS220 digital laser distance sensor is a high-precision distance measuring sensor with protection developed by our company. It has the characteristics of high measurement accuracy, fast measurement speed, and simple installation and operation. It has been widely used in various fields such as robotic arm protection measurement, industrial control and so on. The high range proximity sensor indoor 40m ranging range, ranging frequency is 3Hz, accuracy is 1mm, IP54 protection level, can be used in low temperature minus 10 ℃, needs to be customized. The light source of the distance ranging sensor is 635nm red light, class II laser grade, and can be used in material level and precise laser measuring and other occasions.

Product Features

1.Small size, light weight and high precision

2. The principle of phase method, suitable for indoor and outdoor models

3. Industrial grade, mm error

Technical Parameters

Model	KLS220
Measuring Range	0.03~40m
Measuring Accuracy	±1mm
Laser Grade	Class 2
Laser Type	620~690nm,<1mW
Working Voltage	5~32V
Measuring Time	0.4~4s
Frequency	3Hz
Size	694016mm

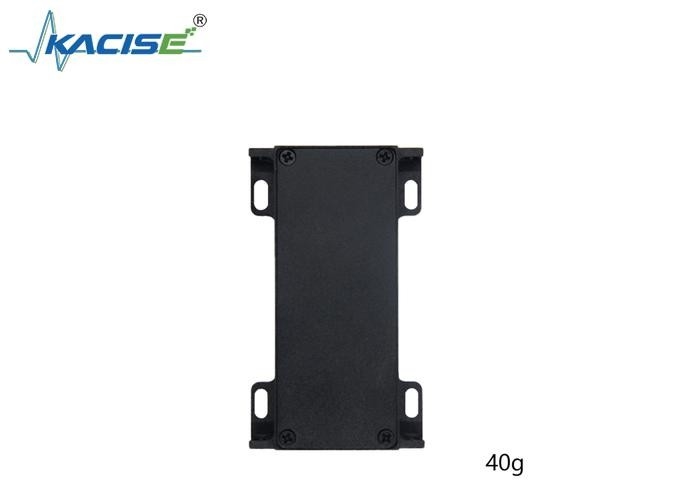

Weight	40g
Communication Mode	Serial Communication, UART
Interface	RS232(TTL/USB/RS485/ Bluetooth can be customized)
Working Temperature	0~40℃(Wide temperature -10 ℃ ~ 50 ℃ can be customized)
Storage Temperature	-25℃-~60℃
