Name: Short Range 40m High Accuracy Distance Measurement Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLS250
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

Short Range 40m High Accuracy Distance Measurement Sensor

40m Distance Measurement Sensor

Short Range Distance Measurement Sensor

High Accuracy Distance Measurement Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLS250

Request A Quote

Short Range 40m High Accuracy Distance Measurement Sensor

Product Details

Measurement Accuracy:

±1mm

Measurement Range:

0.03-40m/60m

Laser Level:

Class II Laser

Communication Method:

Serial Communication, UART

Working Voltage:

5~32V

Laser Type:

620nm-690nm, <1mw

Highlight:

40m Distance Measurement Sensor

Short Range Distance Measurement Sensor

High Accuracy Distance Measurement Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Get Best Price

Lidar can be used for ETC vehicle type recognition and can provide host computer software data analysis

Get Best Price

86--17719566736

Contact Now

Product Description

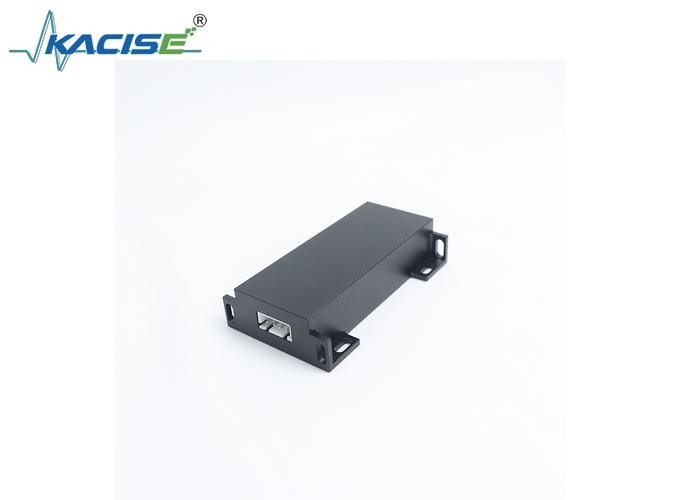

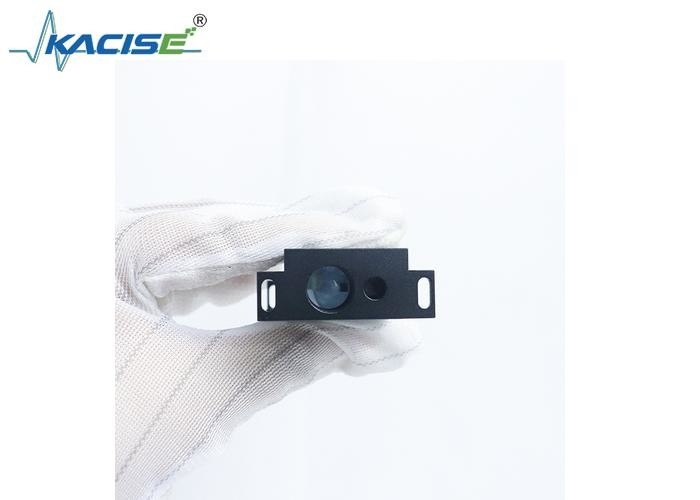

Short Range 40m High Accuracy Distance Measurement Sensor

Introduction

For a short range distance sensor that needs to measure distances accurately up to 40 meters, laser distance sensor would likely be the best choices due to their ability to handle accuracy and range.

Product Features

Measurement accuracy ±1mm
Measurement range 0.03-40m/60m
Laser level Class II laser
Communication method Serial communication, UART
Working voltage 5~32V
Laser type 620nm-690nm, <1mw
Module volume 69*40*16mm
Dustproof and waterproof IP54
Working temperature 0 ℃ ～40 ℃ (wide temperature solution -10 ℃ ～50 ℃ can be customized)
Storage temperature range -25 ℃ ～60 ℃
Output method RS485 (RS232 or TTL can be customized)
Weight 40g
Measurement time 0.4~4s
Frequency 3Hz
