Class 1 Laser Measuring Sensor for Process Automation 0.4mW Laser Type Performance

Class 1 Invisible Laser Measuring Sensor For Process Automation

Introduction

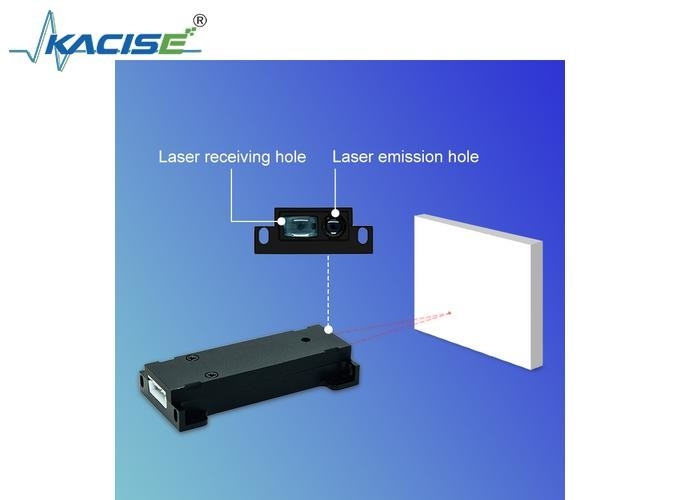

KLS270 laser ranging sensor, the measuring range is 0.03~5m, the measuring accuracy is /-1mm, the measuring time is 0.4-4s, the power supply voltage of the laser ranging module is 3.3V, and the protective shell is installed, which can The increased voltage is 5~32V, the working temperature is 0-40℃, and a class of invisible laser is used, 620~690nm, <0.4mW, which is safe for human eyes. It is anti-interference, and still has high measurement accuracy and reliability in outdoor environments. In addition, the application is simple, the power consumption is stable, and the power consumption is very small.

Product Features

KLS270 laser distance sensor has good performance in many special applications, such as medical treatment, monitoring system and so on.

KLS270 laser distance sensor can transmit data through RS232, RS485, USB, TTL and other interfaces, and can also be connected to MCU, Raspberry Pi, Arduino, industrial computer, PLC and other equipment. Please contact us for connection diagrams.

Technical Parameters
