Outdoor Long Range Laser Measurement Sensor with 100m Measuring Range and RS485 Interface

100m Long Range Laser Measurement Sensor Outdoor

Introduction

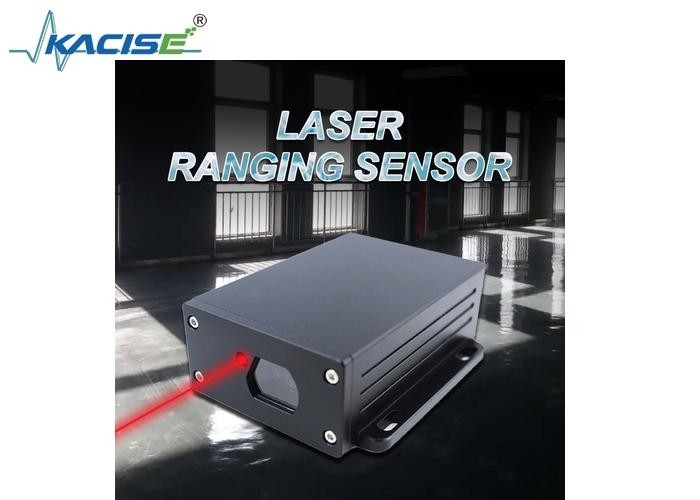

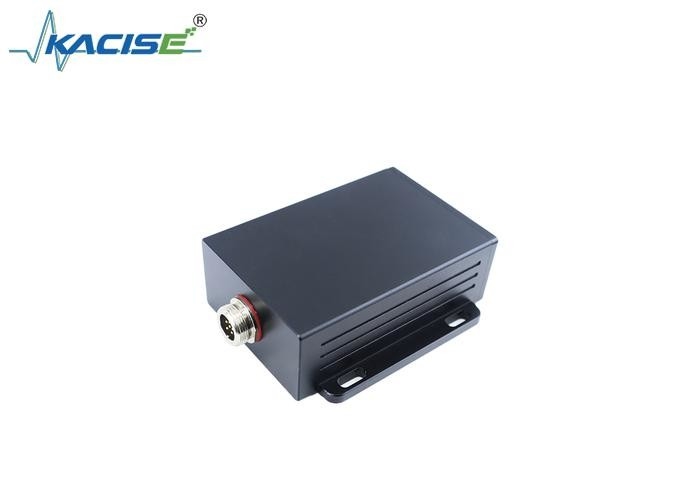

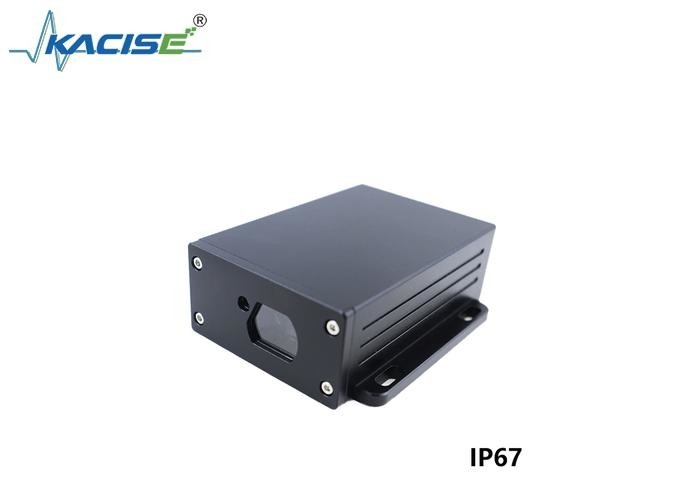

The KLS270 long range distance sensor has a measurement range of up to 100m, a high precision of 3mm, and a measurement frequency of 3Hz. We also have 20Hz options. RS485 interface, also supports various data output types of TTL, RS232 and Bluetooth. The rangefinder sensor can be controlled by the command of the host computer or automatically measured when powered on. The communication protocol is concise and clear, and the system integration is easy to use. IP67 protective housing with reserved mounting holes for easy installation. The XKDBA6A laser distance detector has a large measurement range, is resistant to strong light interference (but cannot measure distances facing the sun), is suitable for indoor and outdoor applications, and can measure relatively stationary objects or the measured object moves slowly.

Application

1. Device positioning.

2. Measure the material level of the material bag.

3. Measure the object distance and object height on the conveyor belt.

4. Measure the log diameter.

5. Protect overhead cranes from collisions.

6. Anti-collision for industrial robots.

7. Non-contact hole depth measurement.

8. Tunnel distance deformation monitoring.

9. Monitoring the moving position of large machinery and equipment.

Technical Parameters
